Product Details:
|
| Name: | 10 Ports Switch | Power: | DC12V/1A |
|---|---|---|---|
| MAC Address: | 8K | Power Consumption: | 3.8W |
| MTBF: | 100000 Hours | Bit Error Rate: | <1/1000000000 |
| High Light: | HiOSO 10 port poe switch,Anti High Voltage 10 Port PoE Switch,HiOSO gigabit network switch |
||
Gigabit Ethernet Switch 8 10/100M RJ45 Ethernet + 2 1000M SFP Fiber Uplink Ports
Overview

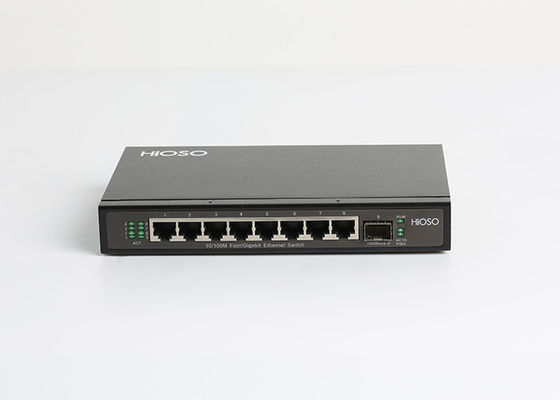

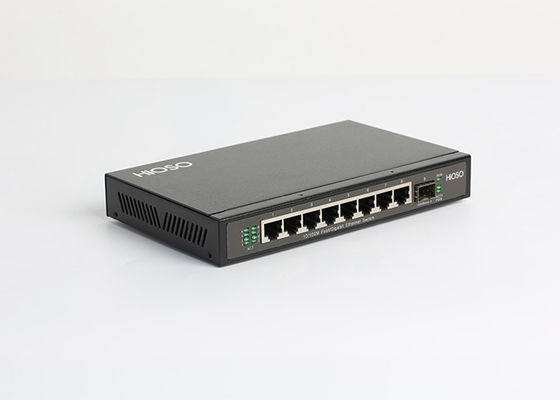

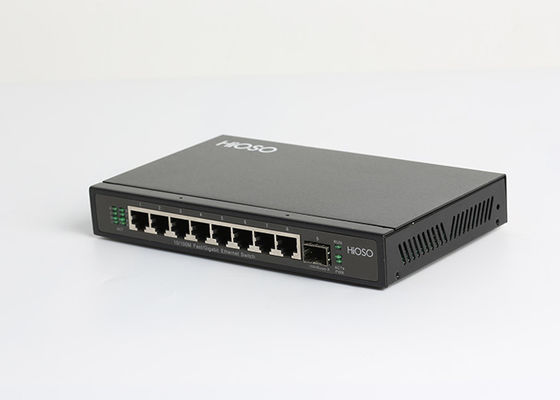

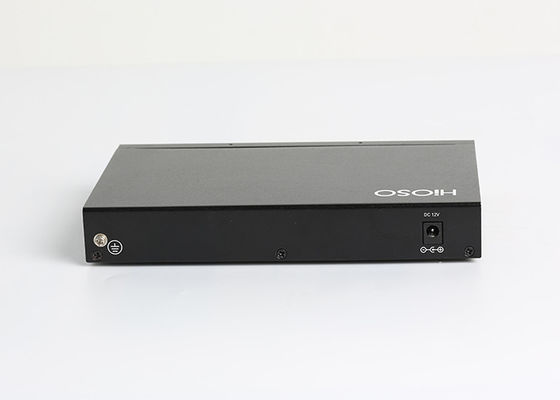

HiOSO FOWAY1310TFS is our ten port Ethernet switch with 8 10/100M RJ45 Ethernet ports and 2 1000M SFP fiber uplink port .
It can be either Managed or non managed through web/SNMP (optional). FOWAY1310TFS is widely used in transmitting HD
videos with strict requirements in security, power and traffic system.
Character
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control |
| Distance |
RJ45 port: 100m SFP port: Multi-mode: 220m (fiber size 62.5/125μm) /550m(fiber size 50/125μm) Single-mode: 10/20/40/60/80/100/120Km |
| Port | 8 10/100M RJ45 ports ;2 1000M fiber uplink port: SFP uplink port |
| MAC address | 8K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC12V/1A |
| Power consumption | 3.8W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension |
28mm (H)×219mm(W)×119mm (D) (external power) 28mm (H)×239mm(W)×119mm (D) (inside power) |
Order information
| NO | Type | NMS | Ports | Power |
| 1 | Foway1310TFS | NO | 8 10/100M RJ45 +1 1000M SFP uplink | DC12V |
| 2 | Foway1310TFSM | WEB | 8 10/100M RJ45 +1 1000M SFP uplink | DC12V |
| 3 | Foway1310TFSP | NO | 8 10/100M RJ45 +1 1000M SFP uplink | AC110V/220V |
| 4 | Foway1310TFSPM | WEB | 8 10/100M RJ45 +1 1000M SFP uplink | AC110V/220V |
