AC110V Cat5 Cable 100m 28 Port Managed Switch , Gigabit Switch POE

AC110V Cat5 Cable 100m 28 Port Managed Switch , Gigabit Switch POE
AC110V Cat5 Cable 100m 28 Port Managed Switch , Gigabit Switch POE AC110V Cat5 Cable 100m 28 Port Managed Switch , Gigabit Switch POE AC110V Cat5 Cable 100m 28 Port Managed Switch , Gigabit Switch POE AC110V Cat5 Cable 100m 28 Port Managed Switch , Gigabit Switch POE

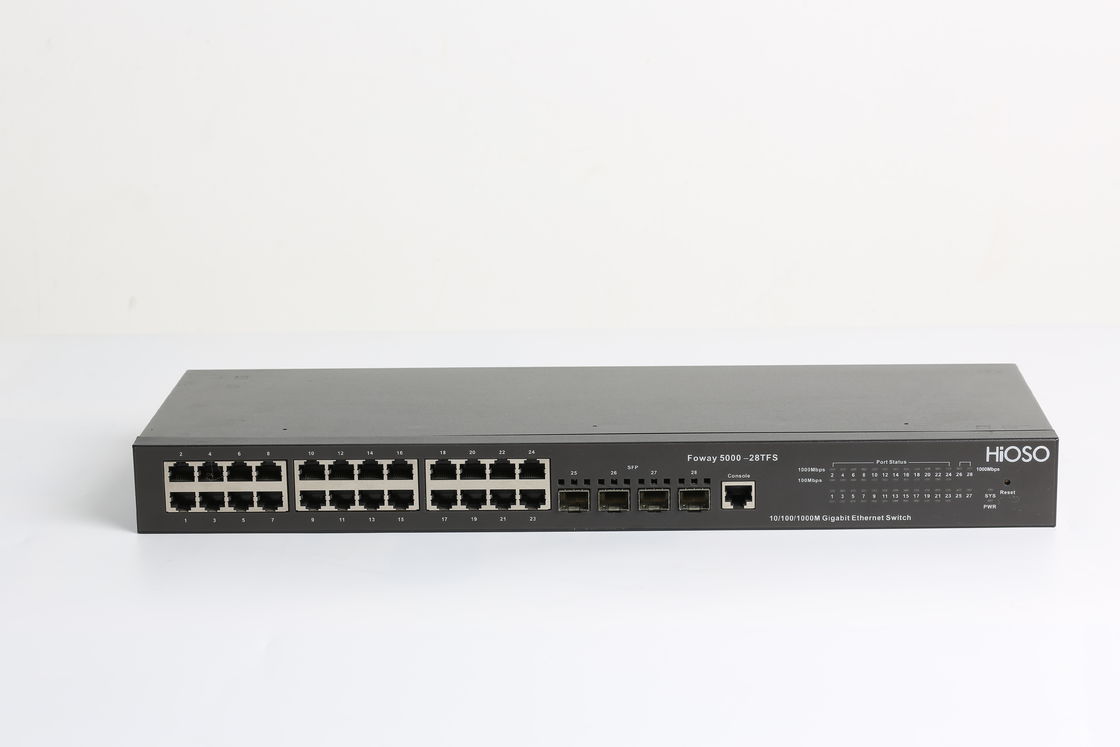

Large Image :  AC110V Cat5 Cable 100m 28 Port Managed Switch , Gigabit Switch POE

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: FOWAY5000-28TFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 50X35X15 cm
Delivery Time: 2-12 work days
Payment Terms: T/T, Western Union
Supply Ability: 4000pcs/month

AC110V Cat5 Cable 100m 28 Port Managed Switch , Gigabit Switch POE

Description
Name: Gigabit Switch Ports: 28 Ports
Power: AC 110-240V Distance: Cat5:100m
Working Temperature: -10~60℃ Storage Temperature: -40~80℃
High Light:

AC110V 28 port managed switch

,

Cat5 Cable 100m 28 port managed switch

,

Cat5 Cable 100m gigabit switch poe

28 Ports Gigabit Ethernet Switch 24 1000M TP Ports + 4 1000M SFP Ports



Character

  • Support 24 10/100/1000M adaptive RJ45 ports and 4 1000M SFP fiber port uplink
  • Support SFP hot plug, support 100/1000M port full rate, full-duplex non-blocking forwarding
  • Support to construct 1000M cascaded network or ring network, support RSR (Rapid Super Ring)
  • Support redundant ring network protection (switch time<50ms), RSTP/STP, VOIP transferring
  • Support 9k bytes giant frame quickly transferring
  • Support 16K MAC learning, 12Mbit storage and forward cache space, 128G back plane bandwidth
  • 1U rack type, with dual fan and metal casing better for heat dissipating

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength SFP Module: 850nm/1310nm/1490nm/1550nm
Distance

1000M SFP multi-mode:220m (fiber 62.5/125μm)/ 550m(fiber 50/125μm)

Single-mode:10/20/40/60/80/100/120Km

Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m

Port

24 1000M RJ45 ports: 10/100/1000Mbps

4 SFP ports : 1 Gbps, 1000M SFP

MAC 16K
Buffer memory space 12Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power AC110~220V@50 /60HZ
Power consumption 22W
Working temperature -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 44mm (H)×440mm(W)×160mm (D)
