Product Details:
|
Product Name: | Ethernet Switch | Ports: | 10 Ports |
---|---|---|---|
Products Status: | Stock | Transmission Rate: | 100/1000Mbps |
Warranty: | 3 Years | ||
High Light: | CCC Approval 10gbe switch for home,2 100/1000M Combo 10gbe switch for home,CCC Approval sfp port switch |
Gigabit Ethernet Switch 8 100M TP + 2 100/1000M Combo 10 Port Ethernet Switch
Overview

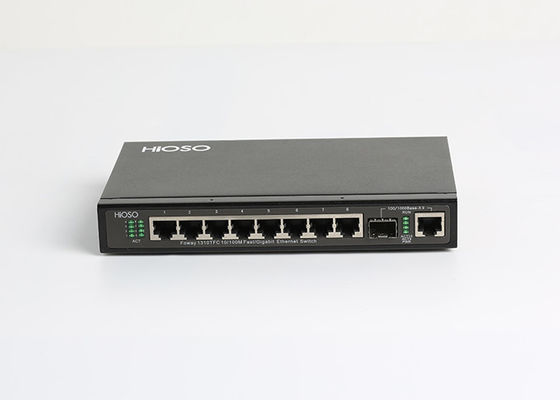

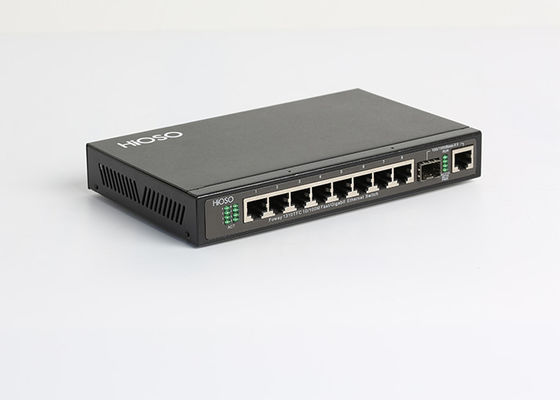

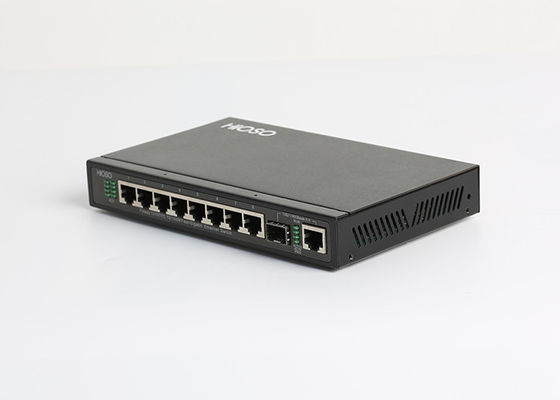

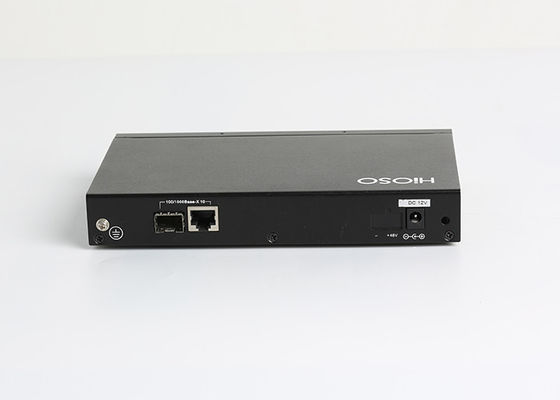

HiOSO FOWAY1310TFC is our ten port Ethernet switch with 8 10/100M RJ45 Ethernet ports and 2 100M/000M combo uplink port .
It can be either Managed or non managed through web/SNMP (optional).
Character
Technical Specification
Parameter | Specification |
Distance |
RJ45 port: 100m SFP port: Multi-mode: 220m (fiber size 62.5/125μm) / 550m(fiber size 50/125μm) Single-mode: 10/20/40/60/80/100/120Km |
Port | 8 10/100M RJ45 ports ;2 1000M Combo uplink port: |
MAC address | 8K |
Buffer memory space | 1Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |
Power | DC12V/1A |
Power consumption | 3.8W |
Working temperature | -10~60℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Dimension | 28mm (H)×193mm(W)×119mm (D) (external power) |
Order Information
NO | Type | NMS | Ports | Power |
1 | FOWAY1310TFC | NO | 8 10/100M RJ45 +1 1000M Combo uplink | DC12V |
2 | FOWAY1310TFCM | WEB | 8 10/100M RJ45 +1 1000M Combo uplink | DC12V |
