24 1000M Rj45 Ports 2 1000M SFP Ports Gigabit Ethernet Switch 26 Ports

24 1000M Rj45 Ports 2 1000M SFP Ports Gigabit Ethernet Switch 26 Ports
24 1000M Rj45 Ports 2 1000M SFP Ports Gigabit Ethernet Switch 26 Ports 24 1000M Rj45 Ports 2 1000M SFP Ports Gigabit Ethernet Switch 26 Ports 24 1000M Rj45 Ports 2 1000M SFP Ports Gigabit Ethernet Switch 26 Ports 24 1000M Rj45 Ports 2 1000M SFP Ports Gigabit Ethernet Switch 26 Ports

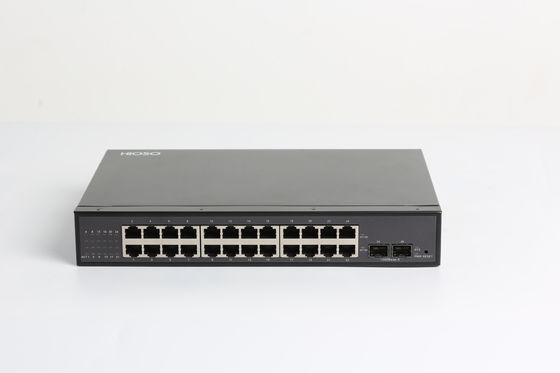

Large Image :  24 1000M Rj45 Ports 2 1000M SFP Ports Gigabit Ethernet Switch 26 Ports

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: Foway2526TFSP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 50X35X15 cm
Delivery Time: 3-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/month

24 1000M Rj45 Ports 2 1000M SFP Ports Gigabit Ethernet Switch 26 Ports

Description
Name: Gigabit Switch Ports: 26 Ports
Products Status: Stock Warranty: 3 Years
Operating Temperature: -10°C~60°C Transmission Rate: 10/100/1000Mbps
High Light:

24 1000M Rj45 Ports Gigabit Ethernet Switch

,

2 1000M SFP Ports Gigabit Ethernet Switch

,

24 1000M Rj45 Ports 26 port gigabit switch

26 Ports Gigabit Ethernet Switch 24 1000M Rj45 Ports + 2 1000M SFP Ports



Overview



HiOSO Foway2526TFSP series 26 ports 1000M Security Industrial Ethernet Switches, supply 24 10/100/1000M RJ45 ports and 2 1000M SFP uplink ports; SFP port supports hot swap. It supports to work with fiber switches, fiber media converters, and other terminal devices with fiber port;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.



Character

  • Support 24 10/100/1000M RJ45 ports and 2 1000M SFP uplink ports
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support maximum 9K Bytes jumbo frame high speed forwarding
  • Support WEB management and SNMP (optional)
  • 8K MAC, 4Mbit storage and forward cache space,56G back plane bandwidth
  • Supply redundant dual power input ports, enhance reliability
  • Metal casing with Wall mounting design, external power , better for heat dissipating and installation



Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3ad Trunk
Wavelength 850nm/1310nm/1490nm/1550nm
Transmission distance

1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km;

Single-fiber single-mode:10/20/40/60/80/100/120Km;

CAT5: 100M

Ports 24 10/100/1000M RJ45 ports; 2 1000M SFP uplink ports
MAC 8K
Buffer memory space 4Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power AC100-240V @50/60HZ
Power consumption 15W
Working temperature Common:-10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation Desk type,1U rack
Dimension 44mm (H)×276mm(W)×190mm (D)



Order information

No Type NMS Ports
1 Foway2526TFSP NO 24 10/100/1000M RJ45 ports + 2 1000M SFP cascaded/ uplink
2 Foway2526TFSPM YES 24 10/100/1000M RJ45 ports + 2 1000M SFP cascaded/ uplink
