Product Details:
|
| Item: | 28 Ports Switch | Communication Mode: | Full-Duplex & Half-Duplex |
|---|---|---|---|
| Products Status: | Stock | Warranty: | 3 Years |
| Transmission Rate: | 10/100/1000Mbps | Switch Capacity: | Maximum 350Gbps |
| High Light: | 24 Gigabit RJ45 Ports Gigabit Ethernet Switch,4 10G SFP Uplink Ports Gigabit Ethernet Switch,24 Gigabit RJ45 Ports 28 port poe switch |
||

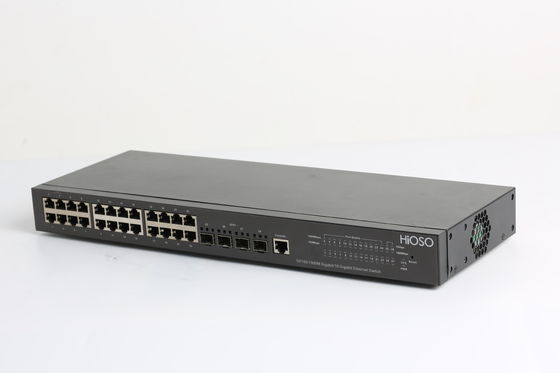

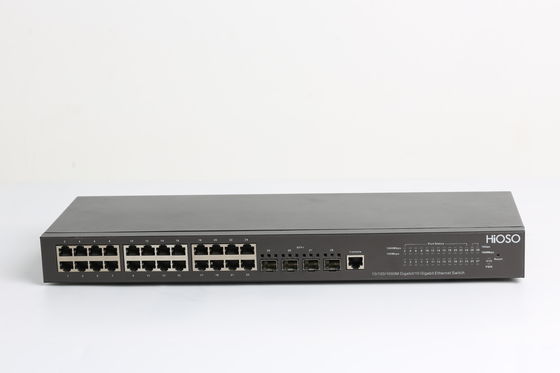

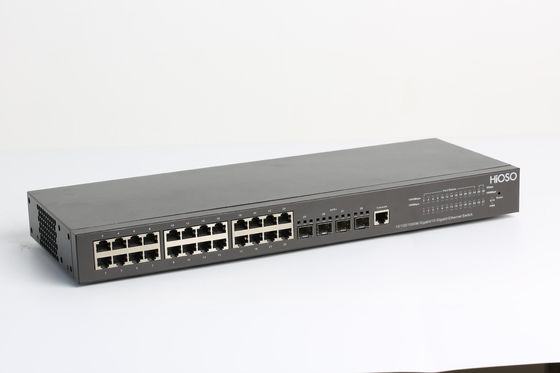

28 Ports Gigabit Ethernet Switch 24 Gigabit RJ45 Ports + 4 10G SFP Uplink Ports
Overview
HiOSO Foway2628TFSP series 28 ports 1000M Security Industrial Ethernet Switches, supply 24 10/100/1000M RJ45 ports and 4 10G SFP uplink ports; SFP port supports hot swap. It supports to work with fiber switches, fiber media converters, and other terminal devices with fiber port;support to choose web or SNMP management; support maximum 350Gbps switch capacity, port full rate 96Mbps, which can meet large network convergence or medium core network requirements; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.
Character
Technical Specification
| Parameter | Specification |
| Transmission distance |
1G SFP:multi-mode: 220m; Single-mode:10/20/40/60/80/100/120Km: Single-fiber single-mode: 10/20/40/60/80/100/120Km; 10G SFP+: multi-mode :300m, single-mode:2/10/20/40/60/80Km,single-fiber:10/10/40Km; CAT5: 100M |
| Ports |
24 1000M RJ45 ports: 10/100/1000Mbs 4 10GM SFP+ uplink ports:1G/10G Gbps, 1G SFP/10G SFP+ |
| MAC | 16K |
| Buffer memory space | 12Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |

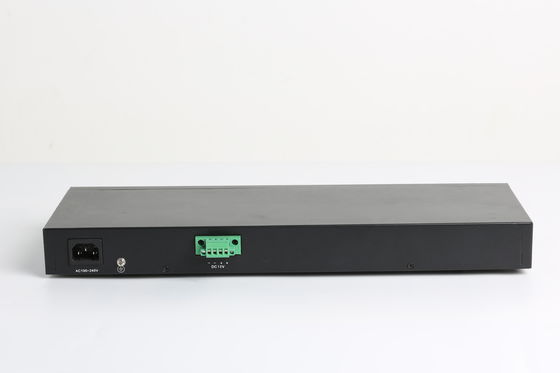

| Power | AC100-240V @50/60HZ & DC12V/3A redundant dual input |
| Power consumption | 22W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Installation | 1U rack |
| Dimension | 44mm (H)×440mm(W)×160mm (D) |
