Product Details:
|
| Item: | 9 Ports Switch | MTBF: | 100000 Hours |
|---|---|---|---|
| Power Consumption: | 11W | Power: | DC12V |
| Bit Error Rate: | <1/1000000000 | Dimension: | 28mm ×193mm×119mm |
| High Light: | 10/100/1000M RJ45 port gigabit network switch,SFP Uplink Ports gigabit network switch,SFP Uplink Ports switch 9 port |
||

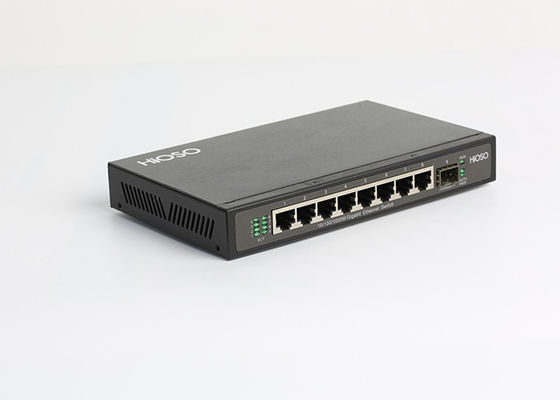

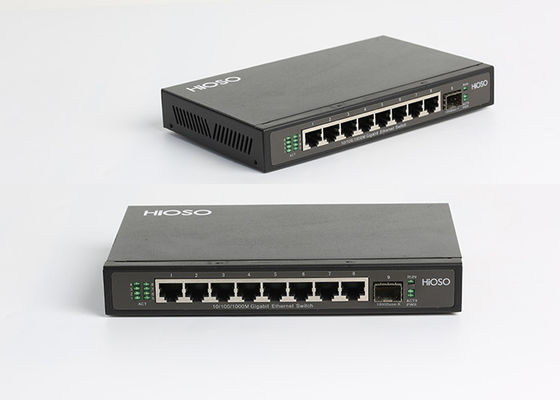

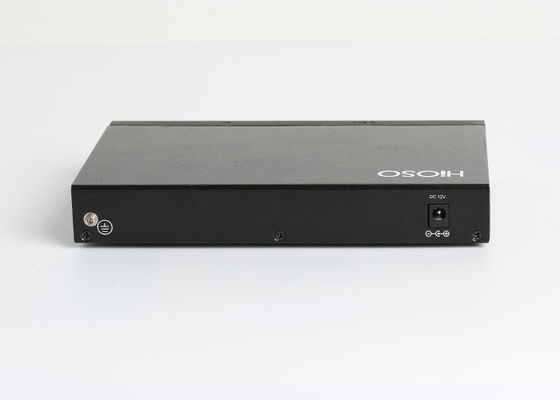

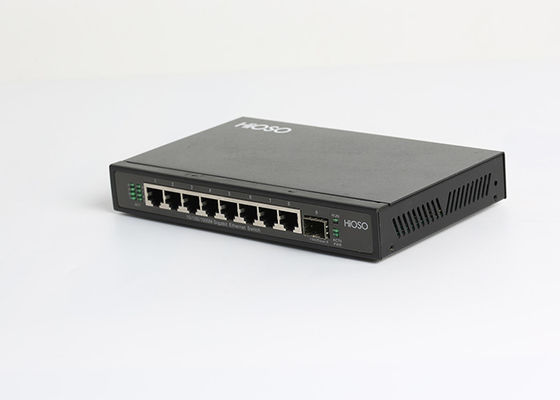

Gigabit Ethernet Switch Supply 8 10/100/1000M RJ45 + 1 100/1000M SFP Uplink Ports
Overview
HiOSO FOWAY1509TFS series switch supply 8 10/100/1000M RJ45 ports and one 100/1000M SFP uplink, including managed and non-managed types, managed type supports web management and SNMP management(optional).
FOWAY1509TFS series switch support to work with IP camera, IP phone, wireless AP and other network devices; supports to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.
Character
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Wavelength | SFP Module: 850nm/1310nm/1490nm/1550nm |
| Distance |
100M SFP multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km 1000M SFP multi-mode:220mfiber 62.5/125μm)/ 550m(fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Cat5:100m |
| Port |
8 1000M RJ45 ports : 10/100/1000Mbps 1 1000M SFP: 1Gbps, 100M/1000M SFP |
| MAC | 8K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC12V |
| Power consumption | 11W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension | 28mm (H)×193mm(W)×119mm (D) |
Order information
| No | Product code | NMS | Ports | Power |
| 1 | FOWAY1509TFS | No | 8 1000M RJ45 + 1 100M/1000M SFP | DC12V |
| 2 | FOWAY1509TFSM | YES | 8 1000M RJ45 + 1 100M/1000M SFP | DC12V |
