Product Details:
|
| Item: | Gigabit Switch | Bit Error Rate: | <1/1000000000 |
|---|---|---|---|
| MAC Address: | 8K | Power Consumption: | 3.6W |
| Power: | DC12V/1A | Storage Temperature: | -40~80℃ |
| High Light: | 8 100M TP ports Gigabit Ethernet Switch,100/1000M Combo Ports Gigabit Ethernet Switch,100/1000M Combo 9 port gigabit switch |
||

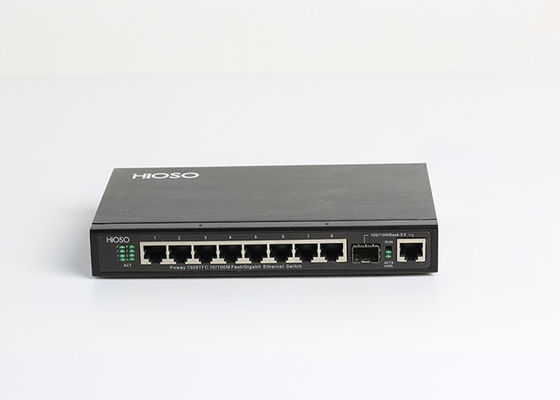

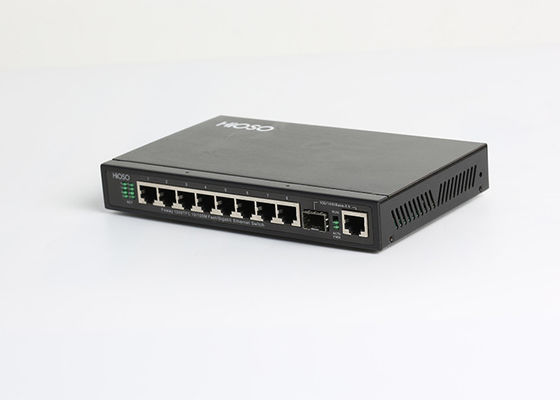

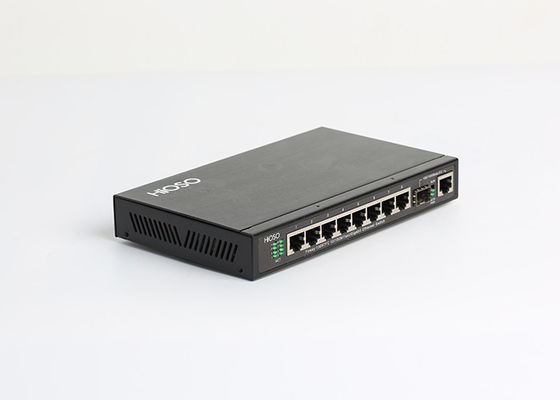

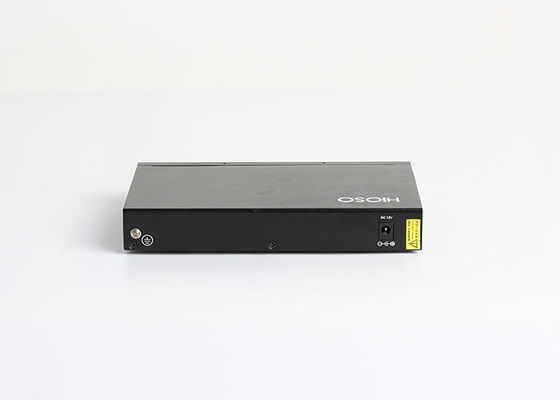

Gigabit Ethernet Switch 8 100M TP + 1 100/1000M Combo Ports 9 Ports Switch
Character
Technical Specification
| Parameter | Specification |
| Standard | IIEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control |
| Distance |
RJ45 port: 100m SFP port: Multi-mode: 220m (fiber size 62.5/125μm) / 550m(fiber size 50/125μm) Single-mode: 10/20/40/60/80/100/120Km |
| Dimension |
28mm (H)×219mm(W)×119mm (D) (external power) 28mm (H)×239mm(W)×119mm (D) (inside power) |
Order Information
| NO | Type | NMS | Ports | Power |
| 1 | FOWAY1309TFC | NO | 8 10/100M RJ45 +1 1000M Combo uplink | DC12V |
| 2 | FOWAY1309TFCM | WEB | 8 10/100M RJ45 +1 1000M Combo uplink | DC12V |
| 3 | FOWAY1309TFCP | NO | 8 10/100M RJ45 +1 1000M Combo uplink | AC220V |
| 4 | FOWAY1309TFCPM | WEB | 8 10/100M RJ45 +1 1000M Combo uplink | AC220V |
