Product Details:
|
| Product Name: | 8 Ports Switch | Ports: | 10 Ports |
|---|---|---|---|
| MAC: | 16K | Warranty: | 3 Years |
| MTBF: | 100000 Hours | Bit Error Rate: | <1/1000000000 |
| High Light: | 2 1000M SFP managed poe switch,8GE managed poe switch,8GE 10 gigabit ethernet switch |
||

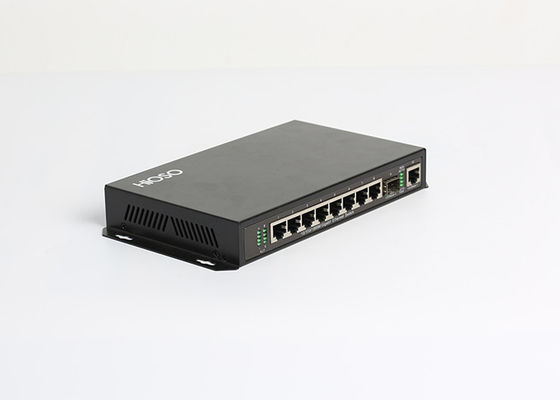

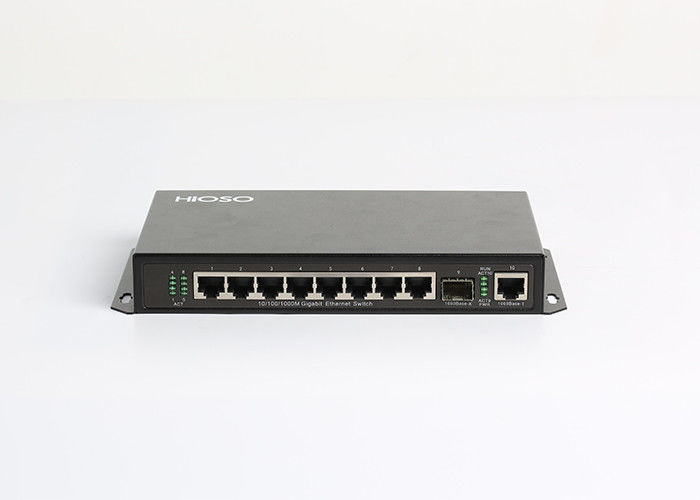

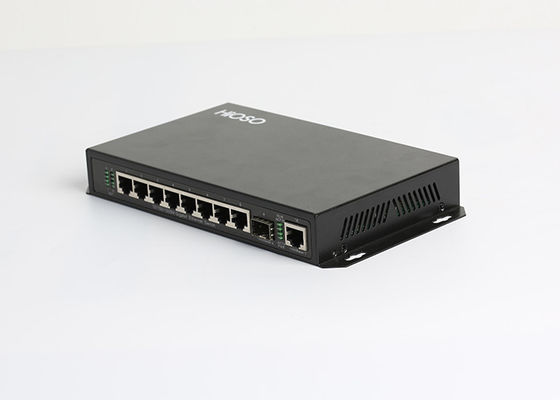

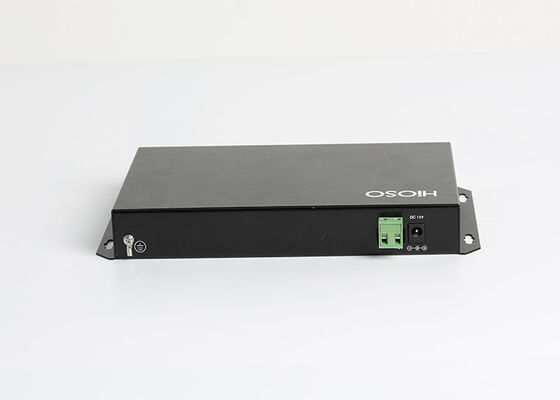

Gigabit Ethernet Switch 8GE + 2 1000M SFP Security Industrial Ethernet Switch
Overview
HiOSO Foway2510TFS series 10 ports 1000M Security Industrial Ethernet Switches, supply
8 10/100/1000M RJ45 ports and 2 1000M SFP uplink port; SFP ports support hot swap; support
to work with fiber switches, fiber media converters, and other terminal devices with fiber port;support
to choose web or SNMP management; support to transmit HD video flow; apply to Security system,
electronic power system and traffic system requirements.
Technical Specification
| Parameter | Specification |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Transmission distance |
1000M fiber: multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm) Single-mode:10/20/40/60/80/100/120Km; Single-fiber single-mode:10/20/40/60/80/100/120Km; CAT5: 100M |
| Ports |
8 1000M RJ45 ports: 10/100/1000Mbs 2 1000M SFP uplink ports:1 Gbps, 1000M SFP/ 1000M Copper SFP |
| MAC | 16K |
| Buffer memory space | 2Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC12V/2A dual input redundant backup |
| Power consumption | 6.5W |
| Working temperature | Common:-10~60℃; -T (wide temperature range):-40~75℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Installation | Wall mounting type |
| Dimension | 30mm (H)×219mm(W)×119mm (D) |
Order information
| No | Type | NMS | Ports |
| 1 | Foway2510TFS | NO | 8 10/100/1000M RJ45 ports + 2 1000M SFP cascaded/uplink |
| 2 | Foway2510TFSR | Ring network | 8 10/100/1000M RJ45 ports + 2 1000M SFP uplink(fiber ring network) |
| 3 | Foway2510TFSM | YES | 8 10/100/1000M RJ45 ports + 2 1000M SFP cascaded/uplink |
