Product Details:
|
| Product Name: | Gigabit Ethernet Switch | Ports: | 8 10/100/1000M RJ45 Ports |
|---|---|---|---|
| MAC: | 16K | Power Consumption: | 5W |
| MTBF: | 100000 Hours | Bit Error Rate: | <1/1000000000 |
| High Light: | CAT5 Cable 100M Smart POE Switch,HiOSO smart poe switch,CAT5 Cable 100M 8 port network switch |
||

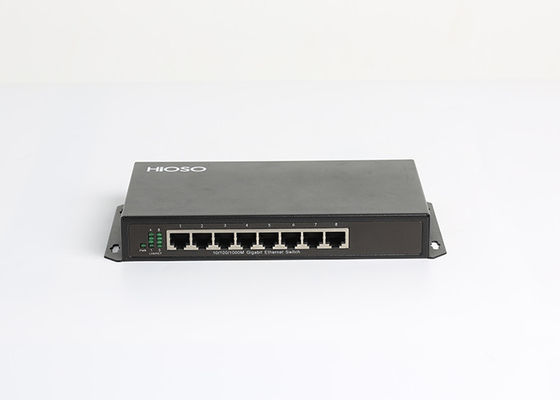

Gigabit Ethernet Switch 8 GE Security Industrial Ethernet Switch
Overview
HiOSO Foway2508T serie s8 ports 1000M Security Industrial Ethernet Switches, supply 8 10/100/1000M RJ45 ports；
It support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic
power system and traffic system requirements.
Character
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Transmission distance | CAT5: 100M |
| Ports | 8 1000M RJ45 ports: 10/100/1000Mbs |
| MAC | 16K |
| Buffer memory space | 2Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC12V/1A dual input redundant backup |
| Power consumption | 5W |
| Working temperature | Common:-10~60℃; -T (wide temperature range):-40~75℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Installation | Wall mounting type |
| Dimension | 30mm (H)×219mm(W)×119mm (D) |
Order information
| No | Type | NMS | Ports |
| 1 | Foway2508T | NO | 8 10/100/1000M RJ45 ports 8 |
| 2 | Foway2508TM | YES | 8 10/100/1000M RJ45 ports 8 |
