Product Details:
|
| Product Name: | Gigabit Ethernet Switch | Buffer Memory Space: | 2Mbit |
|---|---|---|---|
| Products Status: | Stock | MAC: | 16K |
| MTBF: | 100000 Hours | Bit Error Rate: | <1/1000000000 |
| High Light: | 8 1000M RJ45 Ports Gigabit Ethernet Switch,SFP Uplink Port Gigabit Ethernet Switch,1000M Uplink Port sfp port switch |
||

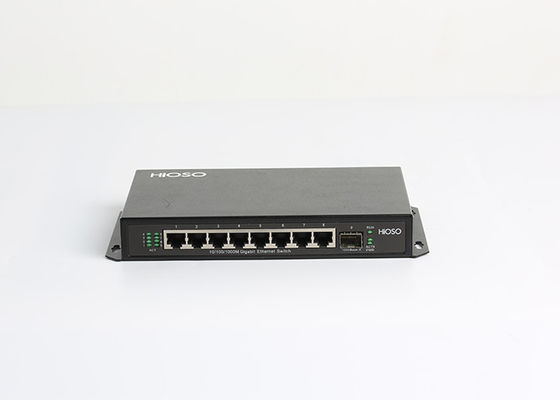

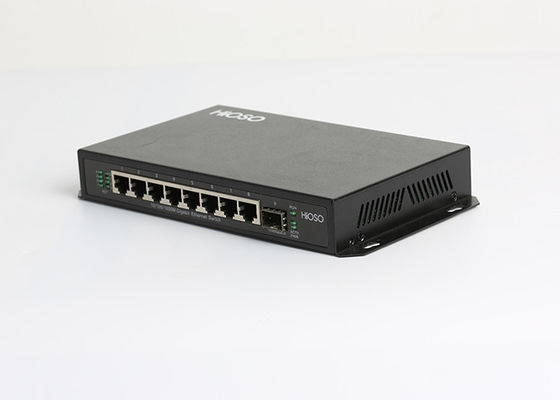

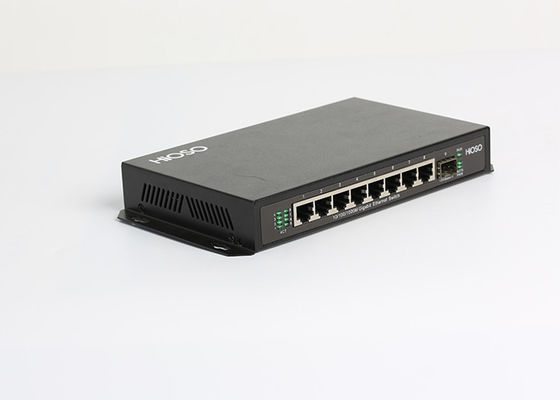

Gigabit Ethernet Switch 8 1000M RJ45 Ports + 1 1000M SFP Uplink Port
Overview
HiOSO Foway2509TFS series 9 ports 1000M Security Industrial Ethernet Switches, supply 8 10/100/1000M RJ45 ports
and 1 1000M SFP uplink port; SFP port supports hot swap. It supports to work with fiber switches, fiber media converters,
and other terminal devices with fiber port;support to choose web or SNMP management; support to transmit HD video flow;
apply to Security system, electronic power system and traffic system requirements.
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3ad Trunk |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Transmission distance |
1000M fiber:multi-mode: 220m ; Single-mode:10/20/40/60/80/100/120Km; Single-fiber single-mode:10/20/40/60/80/100/120Km; CAT5: 100M |
| Ports |
8 1000M RJ45 ports: 10/100/1000Mbs 1 1000M SFP uplink port:1 Gbps, 1000M SFP/ 1000M Copper SFP |
| MAC | 16K |
| Buffer memory space | 2Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC12V/2A dual input redundant backup |
| Power consumption | 6W |
| Working temperature | Common:-10~60℃; -T (wide temperature range):-40~75℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Installation | Wall mounting type |
| Dimension | 30mm (H)×219mm(W)×119mm (D) |
Order information
| No | Type | NMS | Ports |
| 1 | Foway2509TFS | NO | 8 10/100/1000M RJ45 ports + 1 1000M SFP uplink |
| 2 | Foway2509TFSM | YES | 8 10/100/1000M RJ45 ports + 1 1000M SFP uplink |
