Product Details:
|
| Item: | POE SWITCH | Transmission Rate: | 100Mbps |
|---|---|---|---|
| Function: | POE / Industrial | Power Supply: | AC110V/220V |
| MAX Output Power: | 370W ( Single Port:15.4W) | Ports: | 24 100M POE + 2 1000M Combo |
| High Light: | HiOSO Gigabit POE Switch,AC220V Gigabit POE Switch,AC220V switch 26 port |
||
Overview

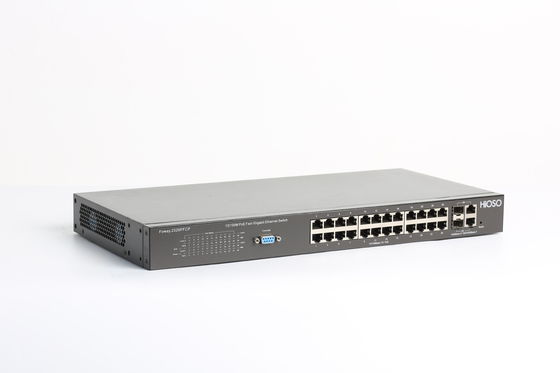

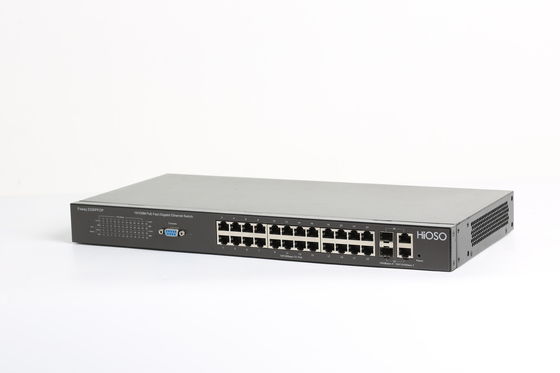

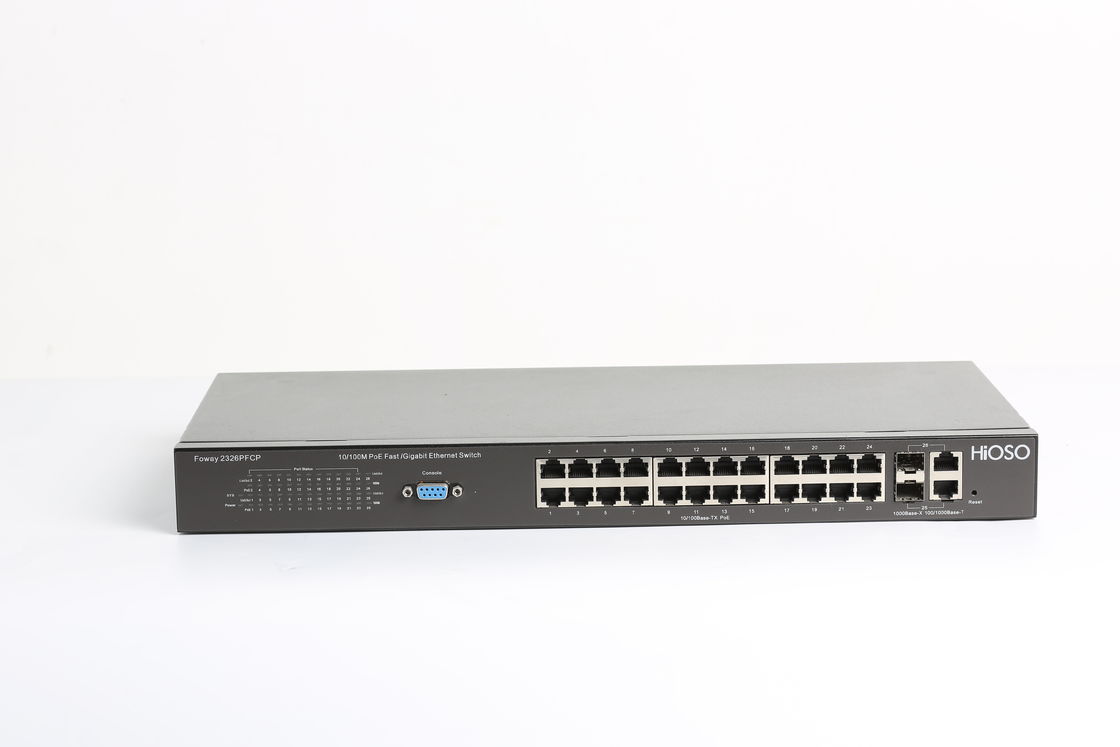

HiOSO Foway2326PFCP series 26 ports 100M/1000M Security Industrial PoE Ethernet Switches, supply 24 10/100M RJ45 PoE ports and 2 1000M Combo uplink ports (100M/1000M SFP port and 10/100/1000M RJ45 port); support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af,IEEE802.3at |
| PoE |
24 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device |
| Wavelength | 850nm/1310nm/1490nm/1550nm/ |
| Transmission distance |
100M fiber,multi-mode:2Km;single-mode:25/40/60/80/100/120Km; single-fiber:25/40/60/80/100/120Km; 1000M Fiber,multi-mode:220m; Single-mode:10/20/40/60/80/100/120Km Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M |
| Ports | 24 10/100M RJ45 ports (POE/PSE); 2 1000M Combo ports |
| MAC | 8K |
| Buffer memory space | 3Mbit |
| Bit error rate | <1/1000000000 |

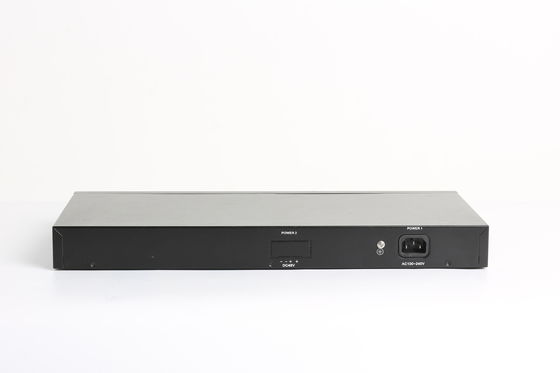

| Power | AC110V/220V@50HZ/60HZ |
| Power consumption | Whole device:11W POE/PSE: maximum370W |
| Working temperature | Common:-10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Installation | 1U rack |
| Dimension | 44mm (H)×440mm(W)×210mm (D) |
| No | Type | NMS | Ports | PoE Output Power / Power supply |
| 1 | Foway2326PFCP-24AF | NO | 24 10/100M PoE+ 2 Combo | IEEE802.3af 15.4W, total 370w,AC220V |
| 2 | Foway2326PFCP | NO | 24 10/100M PoE+ 2 Combo | IEEE802.3af/at 15.4W/30W, total 370w,AC220V |
| 3 | Foway2326PFCPM-24AF | YES | 24 10/100M PoE+ 2 Combo | IEEE802.3af 15.4W, total 370w,AC220V |
| 4 | Foway2326PFCPM | YES | 24 10/100M PoE+ 2 Combo | IEEE802.3af/at 15.4W/30W, total 370w,AC220V |
