Product Details:
|
| Product Name: | Poe Switch | Poe: | 8 Poe Ports |
|---|---|---|---|
| Port: | 2 Sfp Ports | Transmission: | CAT5 : 100M |
| Humidity: | 5%~90% | Installation: | 1U Rack |
| High Light: | 2 sFP ports poe 10 port switch,8 1000M RJ45 poe 10 port switch,8 1000M RJ45 switch poe 1000 mbps |
||

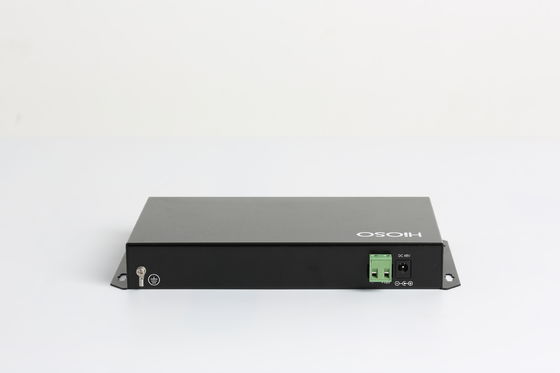

10 Ports Security PoE Switch 8 1000M RJ45 + 2 1000M Sfp Uplink Ports
Overview
HiOSO Foway2510PFST series 10 ports 1000M Security Industrial PoE Ethernet Switches, supply 8 10/100/1000M RJ45 PoE ports and 2 1000M SFP cascaded/ring network uplink ports ; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.
Technical Specification
| Parameter | Specification |
| PoE |
8 PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device |
| Wavelength | 850nm/1310nm/1490nm/1550nm/ |
| Transmission distance | 1000M Fiber,multi-mode:220m(fiber size 62.5/125μm)/550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M |
| Ports |
8 1000M RJ45 ports (POE/PSE): 10/100/1000Mbps 2 1000M SFP ports: 1 Gbps, 1000M SFP / 1000M Copper SFP |
| MAC | 16K |
| Buffer memory space | 2Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power |
DC48V dual input redundant backup (external power) AC110V/220V@50HZ/60HZ&DC48V dual input redundant backup (inside power) |
FAQ
1.Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every product, either by laser, or by moulds.
2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.
4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
