Product Details:
|
| Item: | Poe Switch | Poe: | 8 Poe Ports |
|---|---|---|---|
| Port: | 1 Combo Port | Support: | IP Camera |
| MAC: | 8K | Storage: | 1M |
| High Light: | CCC Certification 48V POE Switch,8 ports 48V POE Switch,CCC Certification smart poe switch |
||
9 Ports 100M Ethernet Poe Switch 8 100M POE + 1 100M / 1000M Combo Port
Overview

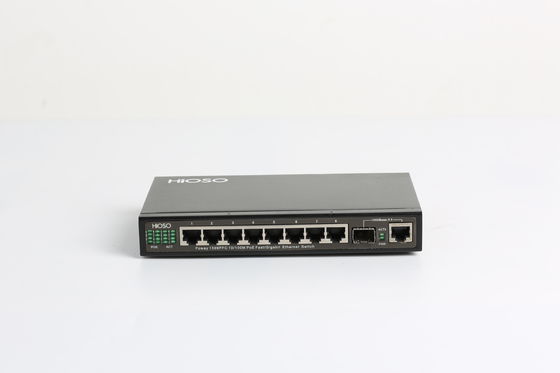

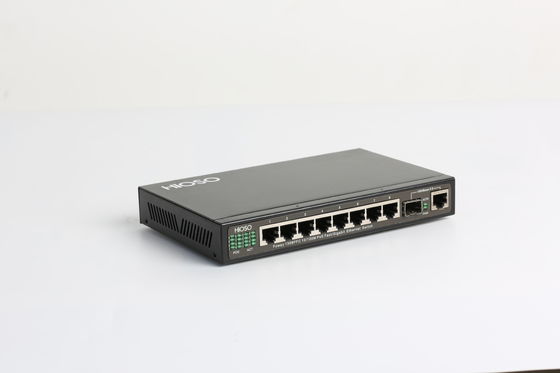

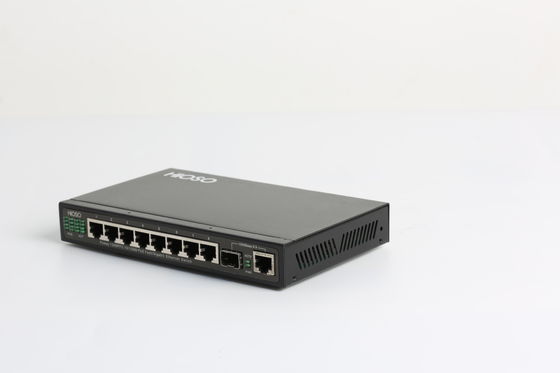

HiOSO FOWAY1309PFC is a nine ports 100M PoE Ethernet Switch, with 8 RJ45 PoE ports and 1 1000M uplink Combo port (100M/1000M SFP fiber port or 10/100/1000M adaptive RJ45 port optional), include non-managed type and managed type, managed type supports web management and SNMP management(optional).
FOWAY1309PFC supports IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards. It can auto discover the power receiving devices which support IEEE802.3af/at standard and supply power to it. To the connected devices which not support PoE, it will auto stop supplying power.
FOWAY1309PFC supports to work with IP camera, IP phone, wireless AP and other network devices, and supply power to these devices, supports to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree |
| PoE |
Power supply ports: 8 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/ cutting |
| Wavelength | SFP modules: 850nm/1310nm/1490nm/1550nm |
| Distance |
100M SFP multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode: 220m (fiber 62.5/125μm)/ 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
| Port |
8 100M RJ45 ports (PoE optional): 10/100Mbps 1 1000M Combo port: 1 Gbps, 100M/1000M SFP&10/100/1000M RJ45 |
| MAC | 8K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |

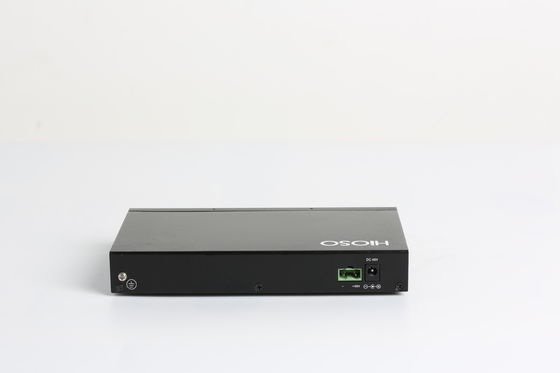

| Power | DC48V(External power), AC110V/220V & DC48V redundant power back up(Internal power) |
| Power consumption | 10W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension | 28mm (H)×193mm(W)×119mm (D) |
Order information
| No | Product code | NMS | Ports | PoE ports |
| 1 | FOWAY1309PFC-8AF | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af 125W |
| 2 | FOWAY1309PFC | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 125W |
| 3 | FOWAY1309PFC-240W | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 240W |
| 4 | FOWAY1309PFCP-8AF | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af 125W,AC220V |
| 5 | FOWAY1309PFCP | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 125W,AC220V |
| 6 | FOWAY1309PFCP-240W | No | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 240W,AC220V |
| 7 | FOWAY1309PFCM-8AF | YES | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af 125W |
| 8 | FOWAY1309PFCM | YES | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 125W |
| 9 | FOWAY1309PFCM-240W | YES | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af/at 240W |
| 10 | FOWAY1309PFCPM-8AF | YES | 8 100M TP + 1 100/1000M SFP/TP | 8 PoE ports IEEE802.3af 125W,AC220V |
