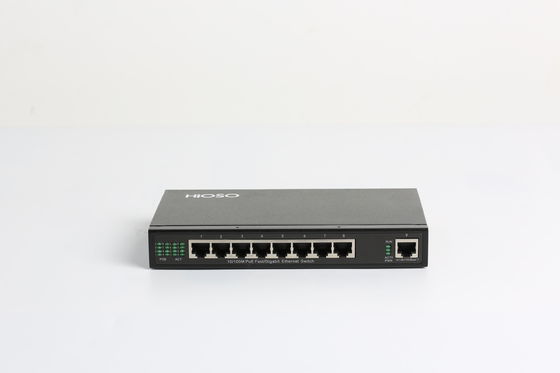

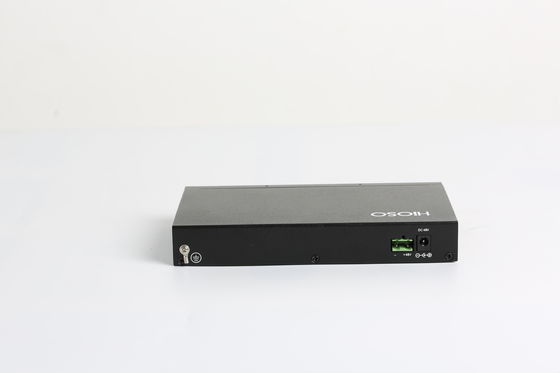

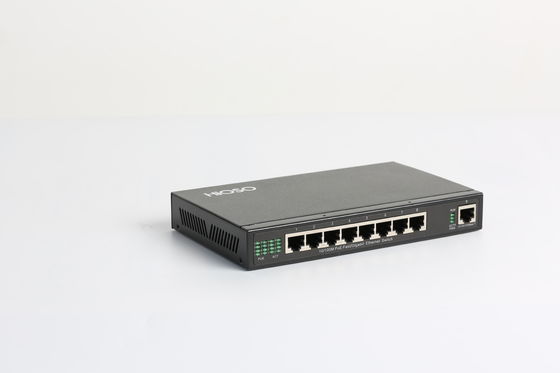

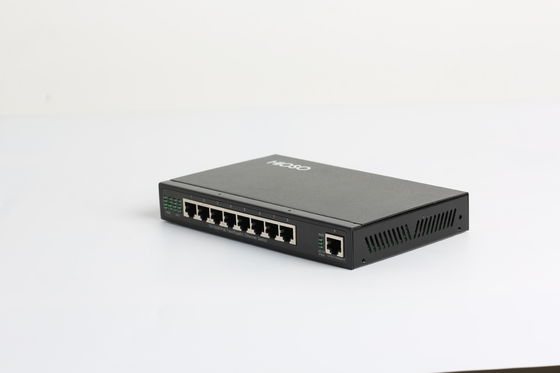

Anti High Voltage Heat Dissipation 8K MAC 1mbit Storage POE Switch 4.5W

9 Ports Gigabit Access Poe Switch 8 1000M POE Ports + 1 1000M TP Ports

Character

• Up to 8 100m (10 / 100M adaptive) RJ45 Poe power supply ports and 1 Gigabit port are supported
• Each Poe power supply port can automatically identify whether there is a standard power receiving device connected to power supply or power off
• Support IEEE802.3af 15.4W and ieee802.3at 30W two Poe power supply standards
• Support hot swap of general-purpose optical module and electrical module of sfprj45
• Support 100 Gigabit port full rate, full duplex non blocking forwarding
• It can support cli, web management and SNMPv1 / V2 / V3 management
• Support VLAN, STP / RSTP / MSTP fast / multi spanning tree, trunk port aggregation, IGMP multicast, mirroring, port mirroring, port isolation, broadcast storm suppression, loop detection, bandwidth control, QinQ, etc
• Support lldp, DHCP, PPPoE, ACL
• Support 8K MAC address learning table, 1mbit storage and forwarding cache space, 7.6g backplane bandwidth
• Optional wide temperature circuit design, can adapt to cold and hot weather environment and industrial application environment
• RJ45 electric port anti high voltage circuit design can be selected to improve the ability of lightning protection and anti high voltage interference
• Iron shell external power supply design, conducive to equipment installation, heat dissipation and miniaturization

Technical Specification
