Product Details:
|
| Name: | 9 Ports Switch | Distance: | 100m |
|---|---|---|---|
| MAC: | 2K | MTBF: | 100000 Hours |
| Power: | DC48V | Consumption: | 5W |
| High Light: | 8 10/100M POE Ports POE Switch,1 100M TP Ports POE Switch,8 10/100M POE Ports switch poe gigabit |
||
10 Ports 100M Poe Switch 8 10 / 100M POE Ports + 2 100M TP Ports
Overview

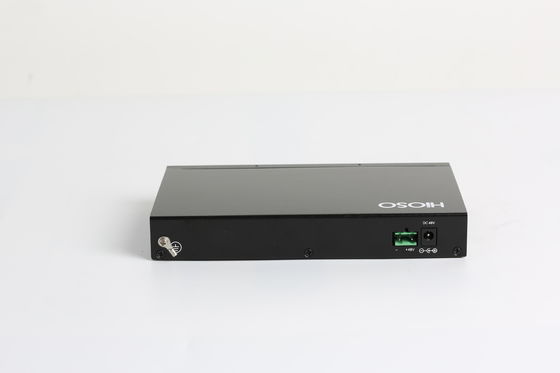

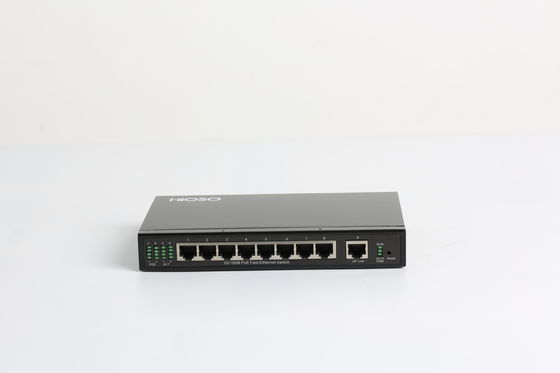

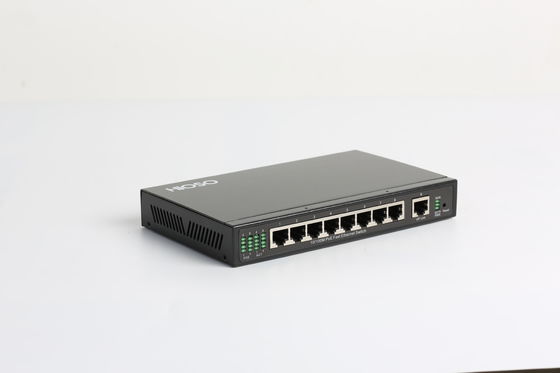

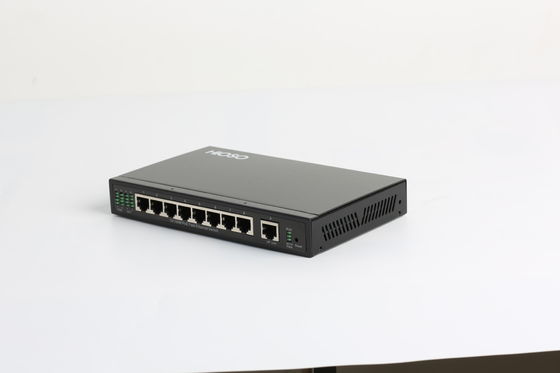

HiOSO FOWAY1209P is our nine port PoE Ethernet switch with 8 10/100M RJ45 PoE ports and 1 10/100M RJ45 uplink port. It can be either managed or unmanaged through web/SNMP (optional).
FOWAY1209P supports 8023af 15.4W or IEEE802.3at 30W PoE standard. It automatically discovers and supplies power to the power receiving devices by support IEEE802.3af/at. switch is capable of identifying if connected devices support PoE and only provide power to those devices support POE.
FOWAY1209P can seamlessly work with and supply power to network devices such as IP camera, IP phone, wireless AP, etc., especially in transmitting HD videos with strict requirements in security, power and traffic system.
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree |
| PoE |
PoE ports: 8 Standard and power consumption:IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting |
| Distance | 100m |
| Port |
8 100M PoE ports: 10/100Mbps 2 uplink port: RJ45 port 10/100M bps |
| MAC | 2K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC48V |
| Power consumption | 5W, PoE power supplying maximum 240W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension | 28mm (H)×193mm(W)×119mm (D) |
