Product Details:
|
| Product Name: | Poe Switch | Poe: | 8 Poe Ports |
|---|---|---|---|
| Port: | 2 Sfp Ports | Transmission: | CAT5 : 100M |
| Humidity: | 5%~90% | Installation: | 1U Rack |
| High Light: | HiOSO power over ethernet switch,HiOSO 10 Port power over ethernet switch,HiOSO switch 10 port gigabit |
||

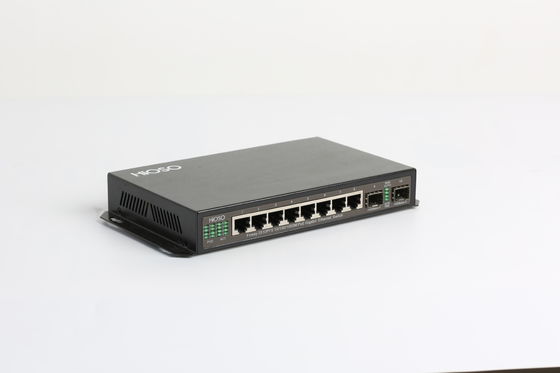

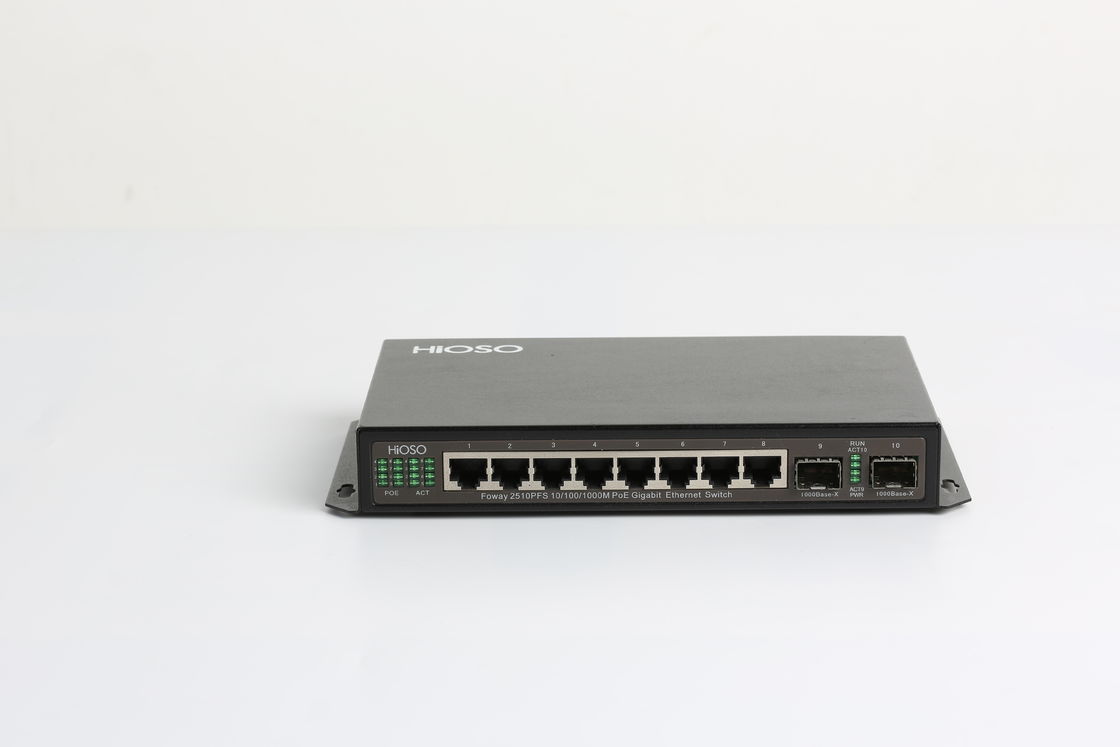

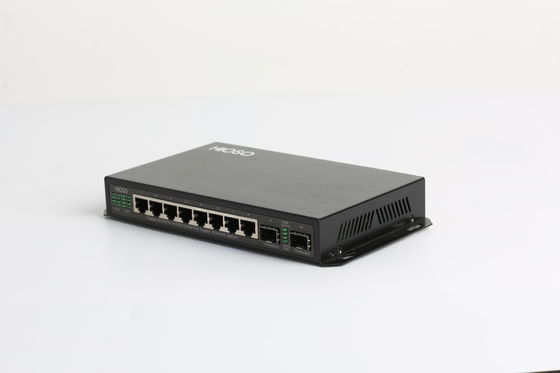

10 Ports Security PoE Switch 8 1000M RJ45 + 2 1000M Sfp Uplink Ports
Overview
HiOSO Foway2510PFS series 10 ports 1000M Security Industrial PoE Ethernet Switches, supply 8 10/100/1000M RJ45 PoE ports and 2 1000M SFP cascaded/ring network uplink ports ; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.
Character
Technical Specification
| Parameter | Specification |
| PoE |
8 PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device |
| Wavelength | 850nm/1310nm/1490nm/1550nm/ |
| Transmission distance | 1000M Fiber,multi-mode:220m(fiber size 62.5/125μm)/550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M |
| Ports |
8 1000M RJ45 ports (POE/PSE): 10/100/1000Mbps 2 1000M SFP ports: 1 Gbps, 1000M SFP / 1000M Copper SFP |
| MAC | 16K |
| Buffer memory space | 2Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power |

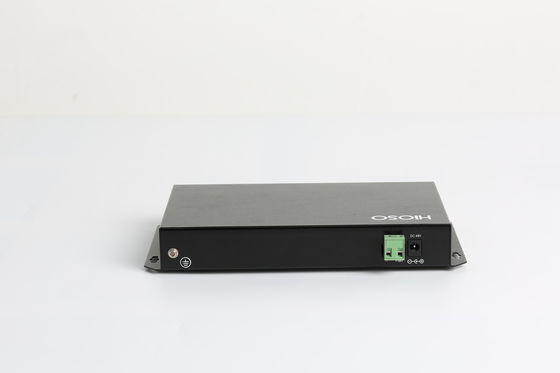

DC48V dual input redundant backup (external power) AC110V/220V@50HZ/60HZ&DC48V dual input redundant backup (inside power) |
| Power consumption | Whole device:7.5W POE/PSE: maximum240W |
| Installation | Wall mounting type (external power), desk type/1U rack (inside power) |
| Dimension |
30mm (H)×219mm(W)×119mm (D) (external power) 44mm (H)×276mm(W)×190mm (D) (inside power) |
Order information
| No | Type | NMS | Ports | PoE Output Power / Power supply |
| 1 | Foway2510PFS-8AF | NO | 8 1000M PoE+2 1000M SFP | IEEE802.3af 15.4W, total 125w;external DC48V |
| 2 | Foway2510PFS | NO | 8 1000M PoE+2 1000M SFP | IEEE802.3af/at 15.4W/30W, total 125w;DC48V |
| 3 | Foway2510PFS-240W | NO | 8 1000M PoE+2 1000M SFP | IEEE802.3af/at 15.4W/30W, total 240w;DC48V |
| 4 | Foway2510PFSP-8AF | NO | 8 1000M PoE+2 1000M SFP | IEEE802.3af 15.4W, total 125w;inside AC220V |
