Product Details:
|
| Product Name: | 5 Ports Switch | Support: | 8K MAC Learning |
|---|---|---|---|
| Distance: | CAT5: 100M | MTBF: | 100000 Hours |
| Consumption: | 3.6 W | Power: | DC12V |
| High Light: | HiOSO Ethernet Access Switch,DC12V Ethernet Access Switch,HiOSO 5 port industrial ethernet switch |
||

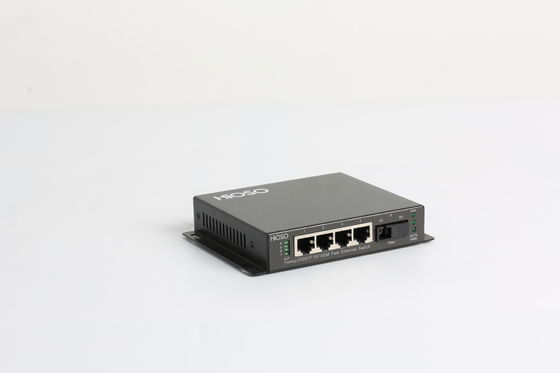

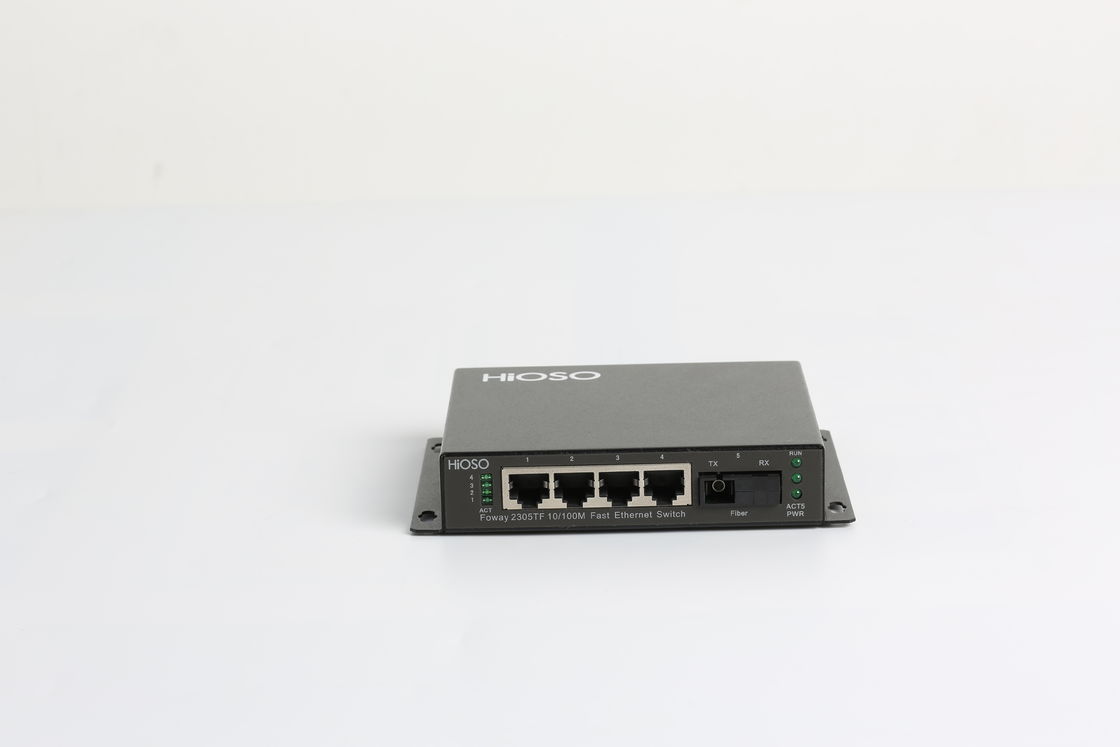

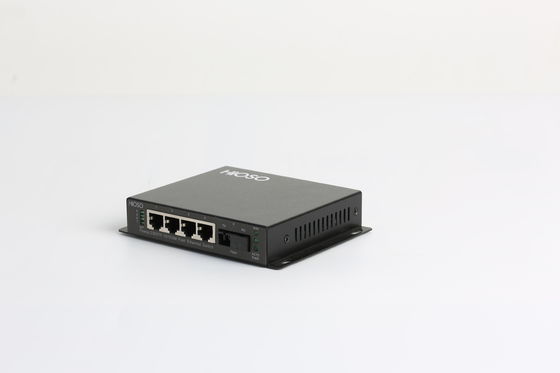

Industrial Ethernet Access Switch 4 100M RJ45 Ports + 1 1000M FX Uplink Port
Overview
HiOSO Foway2305TF series 5 ports 100M Security Industrial Ethernet Switches, supply 4 10/100M RJ45 ports and 1 1000M FX uplink port; support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.
Character
Technical Specification
| Parameter | Specification |
| Transmission distance |
1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm) Single-mode:10/20/40/60/80/100/120Km; Single-fiber single-mode:10/20/40/60/80/100/120Km; CAT5: 100M |
| Ports |
4 10/100M RJ45 ports: 10/100Mbs 1 1000M FX uplink port: 1000Mbps SC/FC/ST fiber port |
| MAC | 8K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC12V/1A dual input redundant backup |
| Power consumption | 3.6W |
Order information
| No | Type | NMS | Ports |
| 1 | Foway2305TF | NO | 4 10/100M RJ45 ports + 1 1000M FX uplink |
| 2 | Foway2305TFM | YES | 4 10/100M RJ45 ports + 1 1000M FX uplink |
