Product Details:
|
| Product's Name: | 8 Port Ethernet Switch | Humidity: | 5%~90% Non-condensing |
|---|---|---|---|
| Power Consumption: | 4W | MTBF: | 100000 Hours |
| Power: | DC12V/1A | Bit Error Rate: | <1/1000000000 |
| High Light: | 7 100M TP Ethernet Access Switch,1 100M TP Ethernet Access Switch,1 100M TP 8 port fiber optic switch |
||
Overview

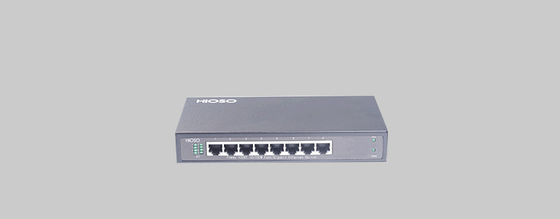

HiOSO FOWAY1208T is our eight port Ethernet switch with 8 10/100M RJ45 Ethernet ports . It can be either Managed or non managed through web/SNMP (optional). FOWAY1208T is widely used in transmitting HD videos with strict requirements in security, power and traffic system.
Character
8 10/100M RJ45 ports
Full 100M rate, full-duplex non-blocking forwarding
4K MAC learning, 1.25Mbit storage of forward cache space,2G back plane bandwidth
Optional to Support Web,CLI ,SNMP management
Managed version support VLAN, STP/RSTP/MSTP, Trunk port aggregation, Port mirroring,Broadcast storm control,loop detection,bandwidth allocation, PPPoE etc.
(Optional) Anti-high voltage with lightning protection and anti-interference ability on each RJ45 port
(Optional) Wall-mounted hanger, better for installation
Metal casing better for heat dissipating
Optional to choose wide range temperature circuit design
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC12V/1A |
| Power consumption | 4W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension | 28mm (H)×193mm(W)×119mm (D) |
Order information
| No | Product code | NMS | Ports | Power |
| 1 | FOWAY1208T | NO | 8 10/100M RJ45 | DC12V |
| 2 | FOWAY1208TM | WEB | 8 10/100M RJ45 | DC12V |
| 3 | FOWAY1208TM-SI | WEB/SNMP | 8 10/100M RJ45 | DC12V |
Datasheet download: FOWAY1208T 7 100M TP + 1 100M TP.pdf
