Product Details:
|
| Product Name: | 10 Ports Switch | Mac Address: | 8K MAC Learning |
|---|---|---|---|
| Storage: | -40~80℃ | Support: | VLAN |
| Working: | -10~60℃ | Port: | 8 100M RJ45 Ports : 10/100Mbps 2 1000M SFP: 1 Gbps, 1000M SFP |
| High Light: | 8 Rj45 Ports Ethernet Access Switch,2 Fiber Uplink Ports Ethernet Access Switch,Fiber Uplink Ports 10 gigabit ethernet switch |
||

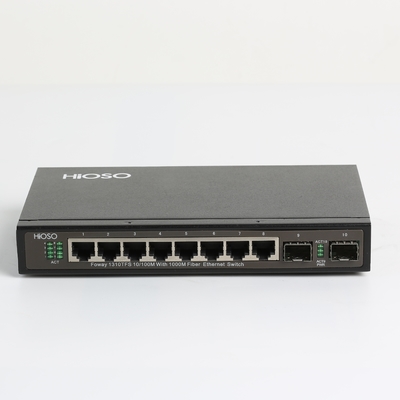

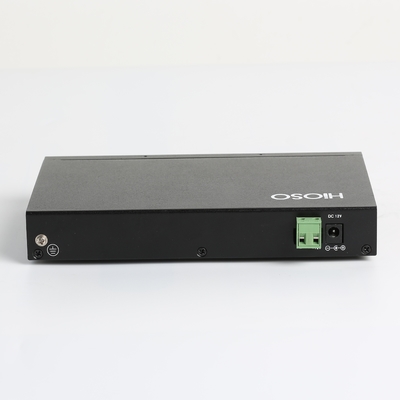

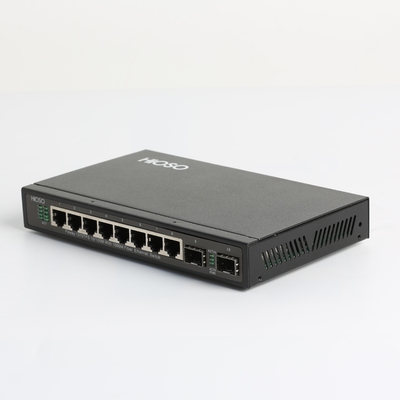

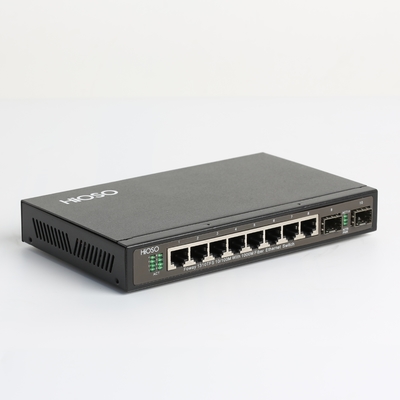

10 Ports Ethernet Access Switch 8 Rj45 Ports + 2 Fiber Uplink Ports
Character
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control |
| Distance |
RJ45 port: 100m SFP port: Multi-mode: 220m (fiber size 62.5/125μm) /550m(fiber size 50/125μm) Single-mode: 10/20/40/60/80/100/120Km |
| Port | 8 10/100M RJ45 ports ;2 1000M fiber uplink port: SFP uplink port |
| MAC address | 8K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC12V/1A |
| Power consumption | 3.8W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension |
28mm (H)×219mm(W)×119mm (D) (external power) 28mm (H)×239mm(W)×119mm (D) (inside power) |
Specification Datasheet Download: FOWAY1310TFS.pdf
