Product Details:
|
| Name: | Poe Switch | Ports: | 5 1000M Ports |
|---|---|---|---|
| Distance: | CAT5: 100M | Error Rate: | <1/1000000000 |
| Power: | DC48V | Consumption: | 5W |
| High Light: | RJ45 Uplink Port 5 port 10 gigabit switch,DC48V 5 port 10 gigabit switch,DC48V 5 port poe switch managed |
||

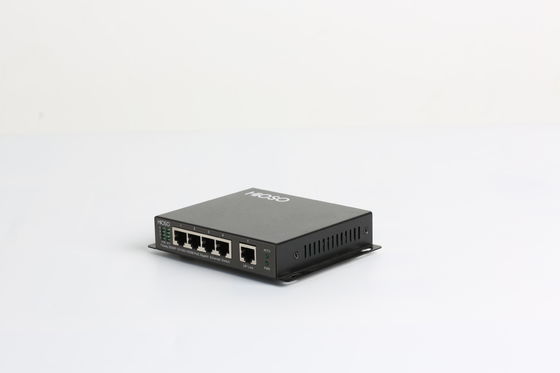

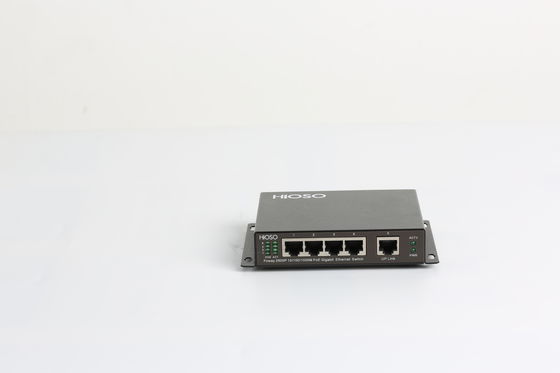

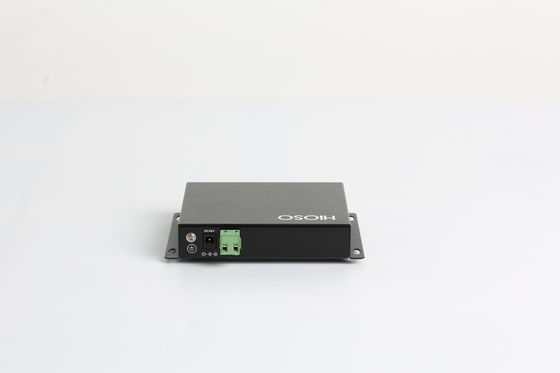

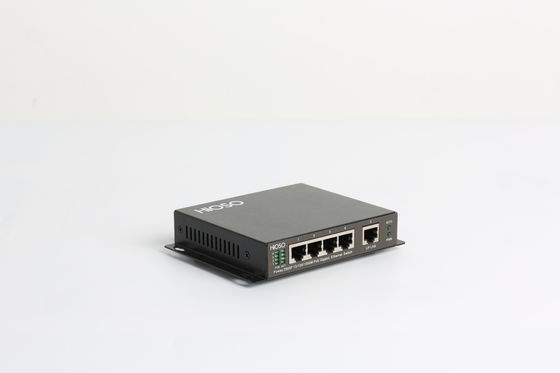

Poe Switch 4 1000M Poe Ports + 1 1000M RJ45 Uplink Port Gigabit 5 Ports Switch
Character
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af,IEEE802.3at |
| PoE |
4 PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device |
| Transmission distance | CAT5: 100M |
| Ports |
4 10/100/1000M RJ45 ports (POE/PSE): 10/100/1000Mbs 1 10/100/1000M RJ45 uplink port: 10/100/1000Mbps |
| MAC | 1K (8K optional) |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC48V dual input redundant backup |
| Power consumption | Whole device:5W POE/PSE: maximum120W |
| Working temperature | Common:-10~60℃; -T (wide temperature range):-40~75℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Installation | Wall mounting type |
| Dimension | 26mm (H)×140mm(W)×106mm (D) |
