Product Details:
|
| Product Name: | Poe Switch | Power: | DC 48V |
|---|---|---|---|
| Poe: | 4 Poe Ports | Ports: | 1 RJ45 Port |
| Working Temperature: | -10~60℃ | Storage Temperature: | -40~80℃ |
| High Light: | CCC Certificate 5 port internet switch,1 RJ45 port 5 port internet switch,CCC Certificate 5 port gigabit network switch |
||

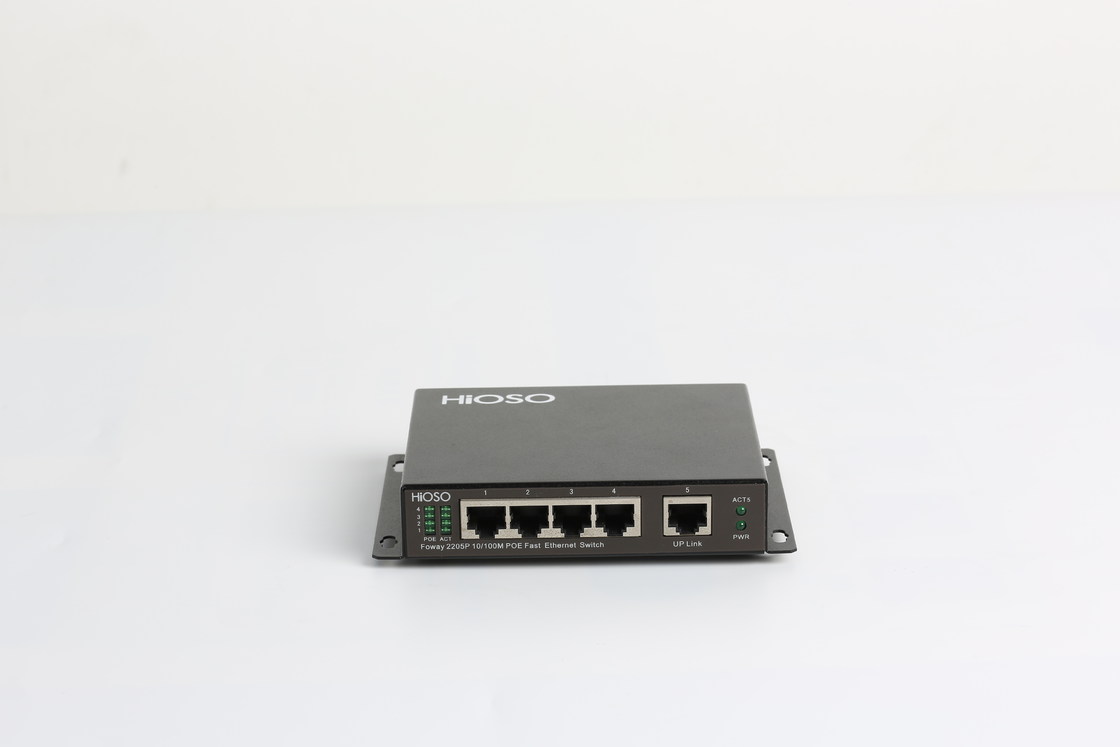

5 Ports Security PoE Switch 4 RJ45 PoE Ports And 1 RJ45 Uplink Port
Overview
HiOSO Foway2205P series 5 ports 100M Security Industrial PoE Ethernet Switches, supply 4 10/100M RJ45 PoE ports and 1 10/100M RJ45 uplink port; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.
| Parameter | Specification |
| PoE |
4 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device |
| Transmission distance | CAT5: 100M |
| Ports |
4 10/100M RJ45 ports (POE/PSE): 10/100Mbs 1 10/100M RJ45 uplink port: 10/100Mbps |
| MAC | 2K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC48V dual input redundant backup |
| Power consumption | Whole device:3.5W POE/PSE: maximum120W |
| Humidity | 5%~90% non-condensing |
| Installation | Wall mounting type |
| Dimension | 26mm (H)×140mm(W)×106mm (D) |
