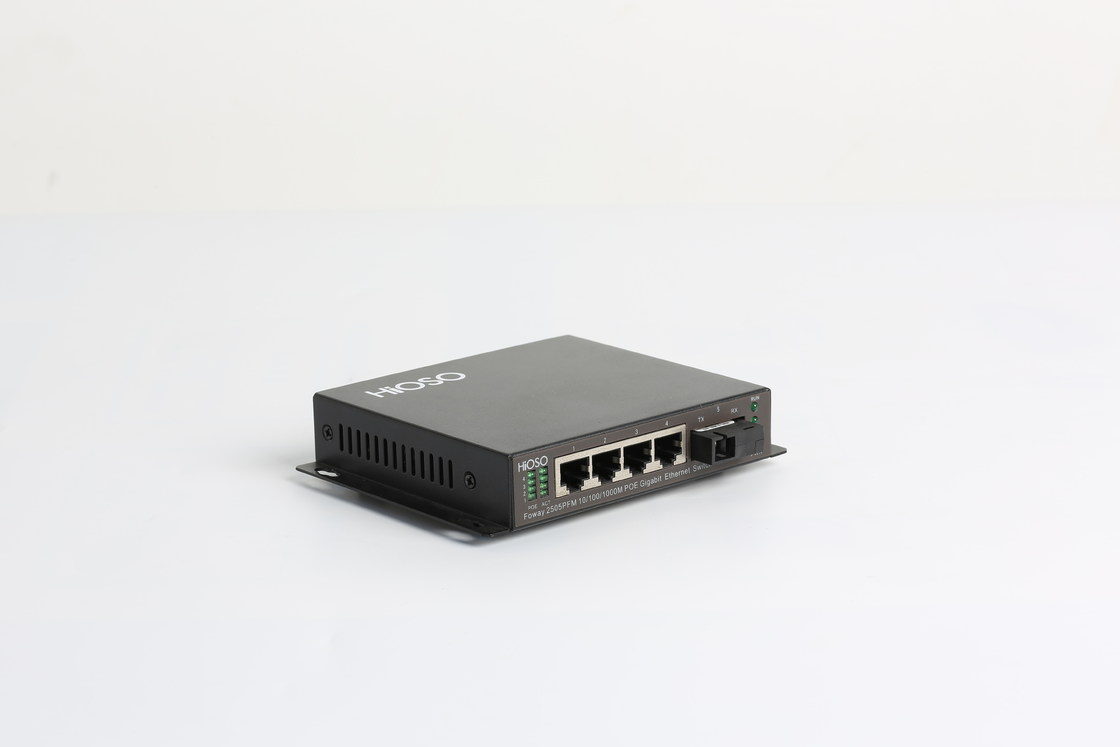

Black DC48V 1550nm 5 Port Gigabit Switch With Web Management

Black DC48V 1550nm 5 Port Gigabit Switch With Web Management
Black DC48V 1550nm 5 Port Gigabit Switch With Web Management Black DC48V 1550nm 5 Port Gigabit Switch With Web Management Black DC48V 1550nm 5 Port Gigabit Switch With Web Management Black DC48V 1550nm 5 Port Gigabit Switch With Web Management

Large Image :  Black DC48V 1550nm 5 Port Gigabit Switch With Web Management

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: Foway2505PF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 38X24X18 CM
Delivery Time: 2-12 work days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/month
Contact Now

Black DC48V 1550nm 5 Port Gigabit Switch With Web Management

Description
Name: 5 Ports Poe Switch MTBF: 100000 Hours
Poe: 4 Poe Ports Port: 1 FX Port
Consumption: 5W Power: DC48V
High Light:

DC48V 5 port gigabit switch

,

1550nm 5 port gigabit switch

,

DC48V 5 port poe powered switch

5 Ports PoE Switch 4 PoE Ports + 1 1000M FX Port With Web Management



Character

  • Support 4 10/100/1000M RJ45 PoE ports and 1 1000M FX fiber uplink port
  • Each PoE port supports auto detect the powered device
  • Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support WEB management and SNMP (optional)
  • Support 1K (8K optional) MAC learning, 1Mbit storage and forward cache space
  • Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
  • Supply redundant dual power input ports, enhance reliability
  • Metal casing with Wall mounting design,, better for heat dissipating and installation



Parameter Specification
PoE

4 PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W

Working mode:auto detect powered device,stop powering if not PD device
Wavelength 850nm/1310nm/1490nm/1550nm/
Transmission distance

1000M fiber:multi-mode: 220m ;Single-mode:10/20/40/60/80/100/120Km;

Single-fiber single-mode:10/20/40/60/80/100/120Km; CAT5: 100M
Ports 4 10/100/1000M RJ45 ports (POE/PSE); 1 1000M FX SC uplink port
MAC 1K (8K optional)
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC48V dual input redundant backup
Power consumption Whole device:5W POE/PSE: maximum120W
Working temperature Common:-10~60℃; -T (wide temperature range):-40~75℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation Wall mounting type
Dimension 26mm (H)×140mm(W)×106mm (D)







Black DC48V 1550nm 5 Port Gigabit Switch With Web Management 0

Black DC48V 1550nm 5 Port Gigabit Switch With Web Management 1
