Product Details:
|
| Item: | Poe Switch | Support: | 2K MAC Learning |
|---|---|---|---|
| Consumption: | 5W | MTBF: | 100000 Hours |
| Port: | 5 Ports | Humidity: | 5%~90% |
| High Light: | 100M FX Port 5 port poe powered switch,10/100M PoE Ports 5 port poe powered switch,100M FX Port 5 port internet switch |
||

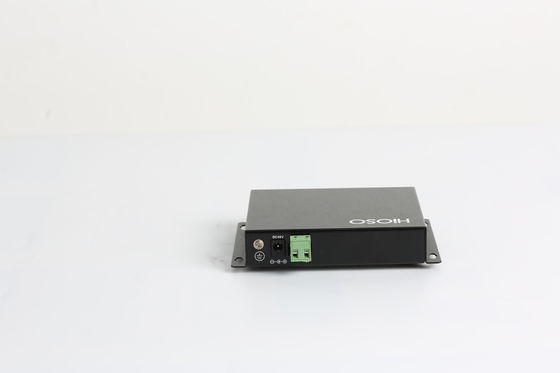

5 Ports Industrial PoE Switch 4 10 / 100M PoE Ports + 1 100M FX Port
Overview
HiOSO Foway2205PF series 5 ports 100M Security Industrial PoE Ethernet Switches, supply 4 10/100M RJ45 PoE ports and 1 100M FX fiber uplink port; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree,IEEE802.3af,IEEE802.3at |
| PoE |
4 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device |
| Wavelength | 850nm/1310nm/1490nm/1550nm/ |
| Transmission distance |
100M Fiber,multi-mode:2km; Single-mode:25/40/60/80/100/120Km Single-fiber:25/40/60/80/100/120Km CAT5: 100M |
| Ports |
4 10/100M RJ45 ports (POE/PSE): 10/100Mbs 1 100M FX uplink port: 100Mbps |
| MAC | 2K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | DC48V dual input redundant backup |
| Power consumption | Whole device:5W POE/PSE: maximum120W |
| Working temperature | Common:-10~60℃; -T (wide temperature range):-40~75℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Installation | Wall mounting type |
| Dimension | 26mm (H)×140mm(W)×106mm (D) |
