Product Details:
|
| Product Name: | Ethernet Switch | Function: | Support VLAN |
|---|---|---|---|
| Management: | Support CLI,WEB | Distance: | CAT5: 100M |
| Rj45 Ports: | 18 Ports | Uplink Ports: | 2 Ports |
| High Light: | 10/100M RJ45 Ports Ethernet Access Switch,Combo Uplink Ports Ethernet Access Switch,Combo Uplink Ports 18 port gigabit switch |
||

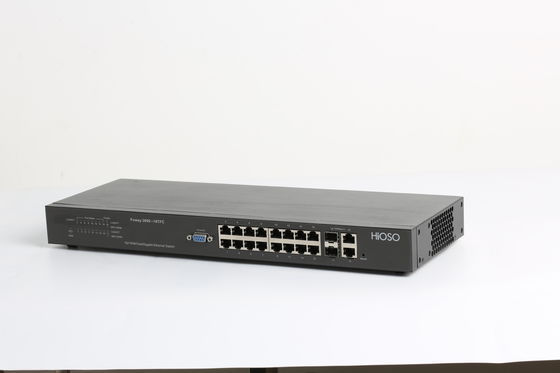

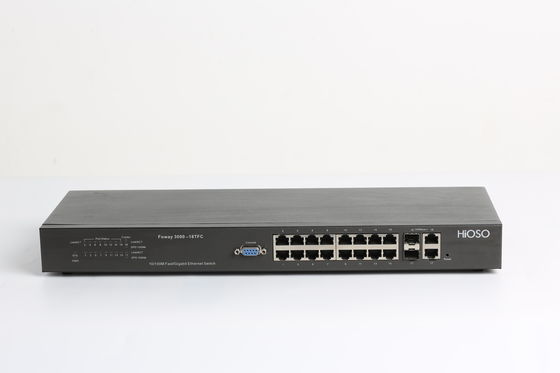

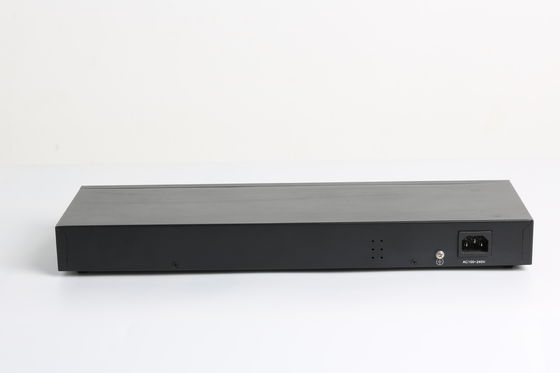

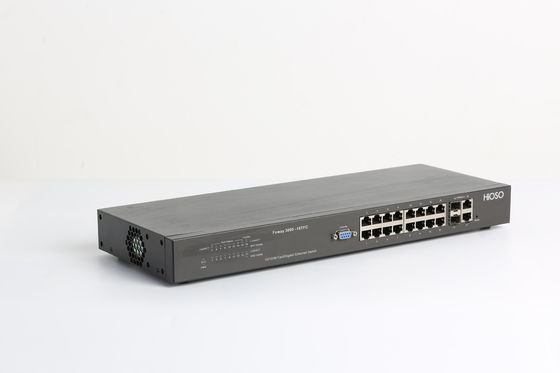

18 Ports Ethernet Access Switch 16 10 / 100M RJ45 Ports + 2 Combo Uplink Ports
Overview
HiOSO Foway3000-18TFCM is a 18 ports 100M/1000M Enterprise Ethernet switch, with 16 10/100M RJ45 ports and 2 Combo uplink ports (100M/1000M SFP optional+100/1000M RJ45 port). Uplink SFP ports support hot swapping, support to work with fiber switch, fiber converters and other deivces with fiber port. It applies to Enterprise network, campus network, HD security monitoring network, Telecom broadband network, power grids and transportation network , etc.
Character
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol, IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control |
| Wavelength | SFP: 850nm/1310nm/1490nm/1550nm |
| Distance |
1000M SFP:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm) Single-mode:10/20/40/60/80/100/120Km; Single-fiber single-mode:10/20/40/60/80/100/120Km; CAT5: 100M |
| Port |
16 100M RJ45 ports: 10/100M 2 100/1000M SFP/TP (Combo) uplink |
| MAC | 8K |
| Buffer memory space | 2Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power supply | AC110V/220V |
| Power consumption | 8 W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Installation | 1U chassis wall mounting |
| Dimension | 44mm (H)×440mm(W)×160mm (D) |
Order information
| Type | Product code | NMS | Ports |
| 1 | FOWAY3000-18TFC | NO | 16 10/100M RJ45 + 2 Combo |
| 2 | FOWAY3000-18TFCM | Web | 16 10/100M RJ45 + 2 Combo |
| 3 | FOWAY3000-18TFCM-SI | Standard SNMP | 16 10/100M RJ45 + 2 Combo |
| 4 | FOWAY3000-18TFCM-EI | Enhanced SNMP | 16 10/100M RJ45 + 2 Combo |
