Product Details:
|
| Product Name: | 26 Ports Switch | Transmission Distance: | CAT5: 100M |
|---|---|---|---|
| Memory Space: | 3Mbit | Power: | AC100~240 |
| MTBF: | 100000 Hours | Bit Error Rate: | <1/1000000000 |
| High Light: | 24 10/100M rj45 ethernet switch,26 Ports rj45 ethernet switch,1000M Combo Ports fiber optic to ethernet switchfiber optic to ethernet switch |
||

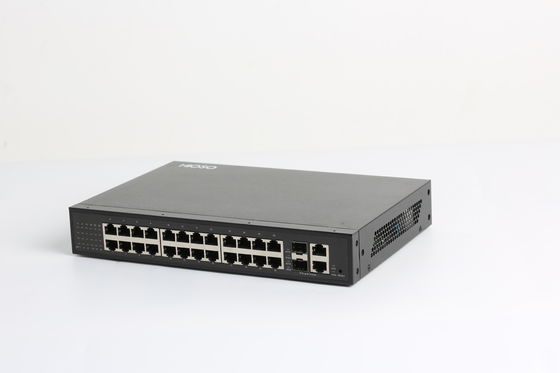

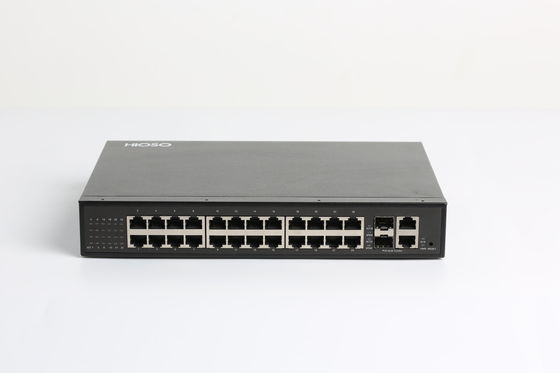

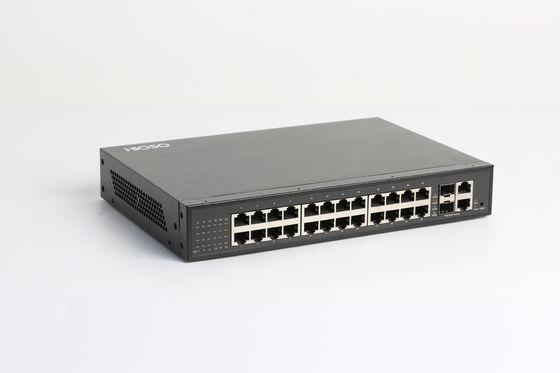

26 Ports Ethernet Access Switch 24 10 / 100M RJ45 Ports + 2 1000M Combo Ports
Overview
HiOSO Foway2326TFCP series 26 ports 100M/1000M Security Industrial Ethernet switch, supply 24 10/100M RJ45 ports, 2 1000M Combo ports(100M/1000M SFP or 10/100/1000M RJ45);support SFP hot swap. It supports to work with fiber switches, fiber media converters, and other terminal devices with fiber port. It supports HD video flow transmission; support to establish redundant back bone ring type network; apply to security system, electric power system, and traffic system requirements.
Character
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.3x Flow control, IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | SFP: 850nm/1310nm/1490nm/1550nm |
| Transmission distance |
100M fiber:multi-mode: 2km ;Single-mode:25/40/60/80/100/120Km; Single-fiber single-mode:25/40/60/80/100/120Km; 1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm) Single-mode:10/20/40/60/80/100/120Km; Single-fiber single-mode:10/20/40/60/80/100/120Km; CAT5: 100M |
| Ports | 24 10/100M RJ45 ports; 2 1000M Combo ports |
| MAC | 8K |
| Buffer memory space | 3Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | AC100~240V@50/60HZ&DC12/3A dual input redundant backup |
| Power consumption | 11W |
| Working temperature | Common:-10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Installation | Standard 1U rack |
| Dimension | 44mm (H)×440mm(W)×210mm (D) |
Order information
| No | Type | NMS | Port | Power |
| 1 | Foway2326TFCP | NO | 24 10/100M RJ45 +2 1000M Combo ports | AC220V |
| 2 | Foway2326TFCPM | YES | 24 10/100M RJ45 +2 1000M Combo ports | AC220V |
