18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports

18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports
18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports 18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports 18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports 18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports

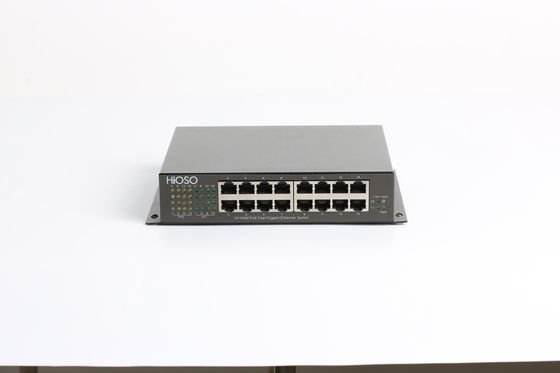

Large Image :  18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: Foway2318PFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 38X24X18 CM
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000pcs/month

18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports

Description
Name: 18 Ports Pow Switch POE: 16 Poe Ports
Power: DC48V Ports: 2 SFP Ports
Bit Error Rate: <1/1000000000 MTBF: 100000 Hours

18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports



Overview



HiOSO Foway2318PFS series 18 ports 100M/1000M Security Industrial PoE Ethernet Switches, supply 16 10/100M RJ45 PoE ports and 2 1000M SFP uplink ports ; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.



Character

  • Each PoE port supports auto detect the powered device
  • Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support WEB management and SNMP (optional)
  • 8K MAC learning, 2Mbit storage and forward cache space,15.2G back plane bandwidth
  • Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
  • Supply redundant dual power input ports, enhance reliability
  • Metal casing with Wall mounting design , better for heat dissipating and installation



Technical Specification

Parameter Specification
PoE

16 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W

Working mode:auto detect powered device,stop powering if not PD device

Wavelength 850nm/1310nm/1490nm/1550nm/
Transmission distance 1000M Fiber,multi-mode:220m(fiber size 62.5/125μm)/550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M
Ports 16 10/100M RJ45 ports (POE/PSE);2 1000M SFP ports
MAC 8K
Buffer memory space 2Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC48V dual input redundant backup
Power consumption Whole device:7W POE/PSE: maximum247W
Working temperature Common:-10~60℃; -T (wide temperature range):-40~75℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Installation Wall mounting type (external power)
Dimension 42mm (H)×209mm(W)×159mm (D)



Order information

No Type NMS Ports PoE Output Power / Power supply
1 Foway2318PFS-16AF NO 16 10/100M PoE+2 1000M SFP Uplink IEEE802.3af 15.4W,total 247W
2 Foway2318PFS NO 16 10/100M PoE+2 1000M SFP Uplink IEEE802.3af/at 15.4W/30W ,total 247W
3 Foway2318PFSM-16AF YES 16 10/100M PoE+2 1000M SFP Uplink IEEE802.3af 15.4W,total 247W
4 Foway2318PFSM YES 16 10/100M PoE+2 1000M SFP Uplink IEEE802.3af/at 15.4W/30W, total 247w







18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports 0

18 Ports PoE Switch 16 10/100M PoE Ports + 2 100M/1000M SFP Ports 1
