Product Details:
|
Product Name: | 10 Ports Switch | Bit Error Rate: | <1/1000000000 |
---|---|---|---|
Buffer Space: | 1Mbit | MAC Address: | 1K |
Working Temperature: | -10~60℃ | Storage Temperature: | -40~80℃ |

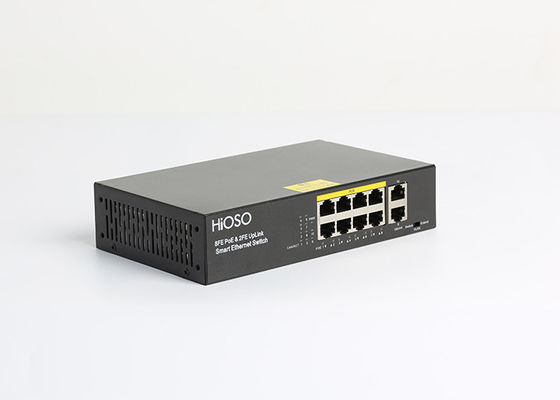

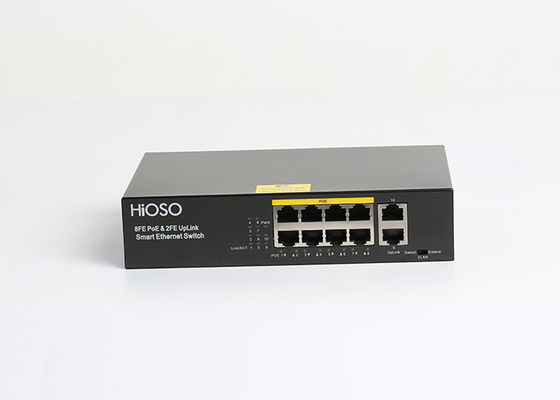

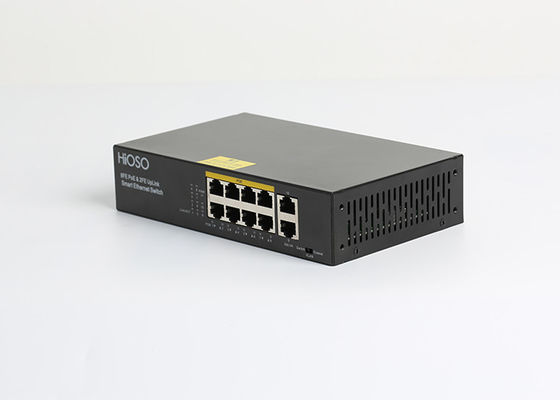

10 Ports Non Standard PoE Switch 8 100M PoE Ports + 2 100M RJ45 Ports
Overview
HiOSO Foway1210PP-L surveillance access non-standard PoE switch, supplies 8 10/100MRJ Non-standard PoE ports (DC24V power supply),2 10/100M RJ45 uplink ports. Each port support maximum 15W Ethernet power,supports to power non-standard PoE network cameras,non-PoE video intercom syste and wireless AP devices.
It supports to choose switch mode, vlan islolated mode and long distance 250m mode (change rate to 10M). It applies to security system, smart areas and smart buildings network transmission application.
Technical Specification
Parameter | Specification |
PoE |
Power supply ports: 8 100M RJ45 Power supply voltage: Non-standard DC24V, support to use lower DC power supply; Power consumption each port: maximum 15W; RJ45 signal PIN position:1 2 3 6; RJ45 power supply PIN position: 4 5 positive, 7 8 negative, optical to choose 1 2 positive,3 6 negative. The device power consumption:maximum 120W |
Transmission distance | CAT 5: 100M rate 100m; 10M rate 250m (100M POE port) |
Port |
8 Non standard poe ports:10/100Mbps 2 RJ45 uplink ports:10/100Mbps |
MAC | 1K |
Buffer space | 1Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |

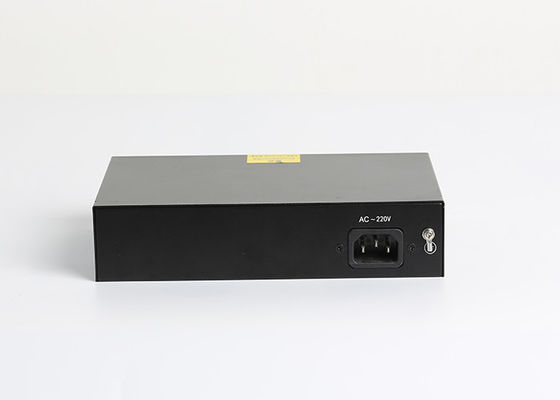

Power | AC110V/220V@50HZ/60HZ |
Order information
No | Type | PoE smart control | Ports | PoE ports |
1 | Foway1210PP-L | No | 8FE + 2 FE | 8 100M POE ports, power supply DC24V, power supply PIN 45+/78-,total power consumption 120W |
2 | Foway1210PP-LB | No | 8FE + 2 FE | 8 100M POE ports, power supply DC24V, power supply PIN 12+/36-,total power consumption 120W |
