Product Details:
|
| Product Name: | 10 Ports Switch | MTBF: | 100000 Hours |
|---|---|---|---|
| Poe Port: | 8 Poe Ports | Other Port: | 1 SFP Ports |
| Working Temperature: | -10~60℃ | Storage Temperature: | -40~80℃ |
Poe Switch 8 1000M PoE Ports + 2 1000M SFP Ports 10 Ports Gigabit Switch
Overview

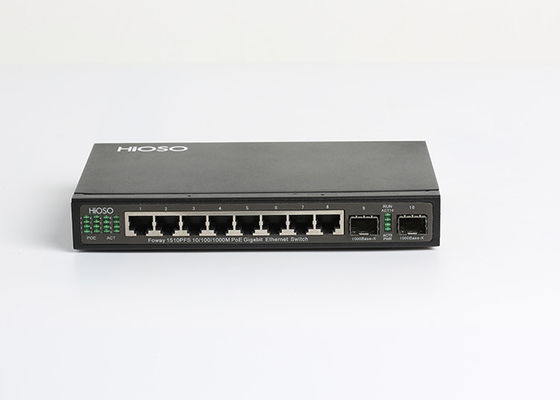

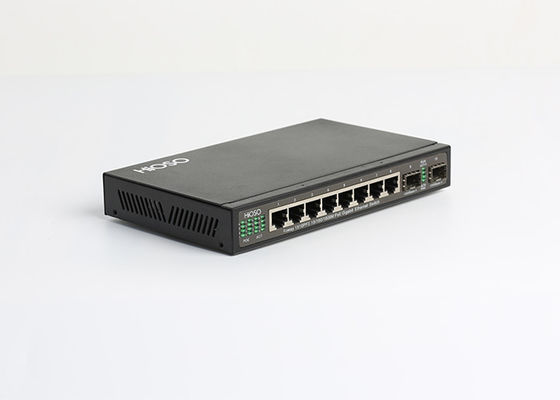

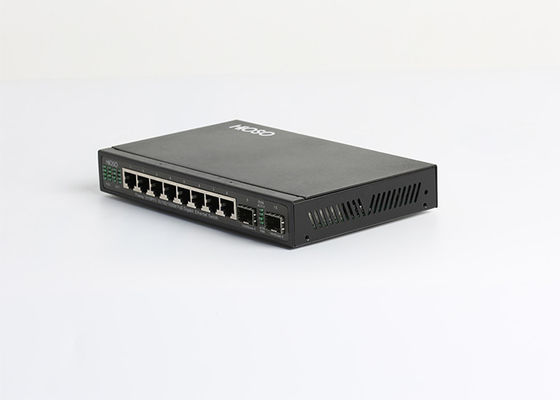

HiOSO FOWAY1510PFS is ten ports 1000M PoE Ethernet switch, with 8 10/100/1000M RJ45 PoE ports and 2 1000M SFP uplink ports, include non-managed type and managed type, managed type supports web management and SNMP management(optional) .
FOWAY1510PFS supports IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards. It can auto discover the power receiving devices which support IEEE802.3af/at standard and supply power to it. To the connected devices which not support PoE, it will auto stop supplying power.
FOWAY1510PFS supports to work with IP camera, IP phone, wireless AP and other network devices, and supply power to these devices, supports to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.
Character
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree |
| PoE |
PoE ports: 4 ports or 8 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting |
| Wavelength | SFP Module: 850nm/1310nm/1490nm/1550nm |
| Distance |
100M SFP multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
| Port |
8 1000M RJ45 ports (PoE optional): 10/100/1000Mbps 2 1000M SFP ports: 1000M SFP |
| MAC | 16K |
| Buffer memory space | 2Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |

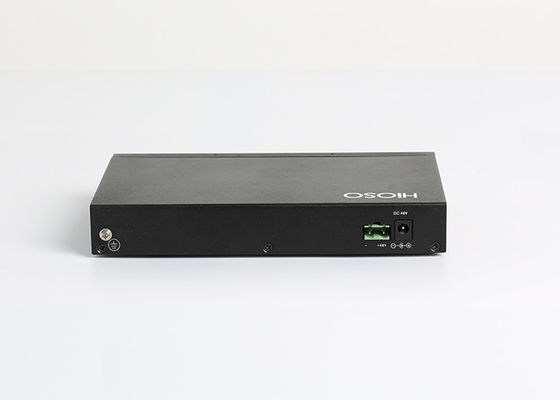

| Power | DC48V(External power), AC110V/220V & DC48V redundant power back up(Internal power) |
| Power consumption | 11W |
|
Working temperature |
-10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension | 28mm (H)×193mm(W)×119mm (D) |
Order information
| No | Product code | NMS | Ports | PoE ports |
| 1 | FOWAY1510PFS-8AF | No | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af 125W |
| 2 | FOWAY1510PFS | No | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af/at 125W |
| 3 | FOWAY1510PFS-240W | No | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af/at 240W |
| 4 | FOWAY1510PFSP-8AF | No | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af 125W, AC220V |
| 5 | FOWAY1510PFSP | No | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af/at 125W, AC220V |
| 6 | FOWAY1510PFSP-240W | No | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af/at 240W, AC220V |
| 7 | FOWAY1510PFS-8AF | Yes | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af 125W |
| 8 | FOWAY1510PFSM | Yes | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af/at 125W |
| 9 | FOWAY1510PFSM-240W | Yes | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af/at 240W |
| 10 | FOWAY1510PFSP-8AF | Yes | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af 125W, AC220V |
| 11 | FOWAY1510PFSPM | Yes | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af/at125W, AC220V |
| 12 | FOWAY1510PFSPM-240W | Yes | 8 1000M RJ45 + 2 1000M SFP | 8 PoE IEEE802.3af/at 240W, AC220V |
