Product Details:
|
| Product Name: | 18 Ports Switch | Distance: | CAT5 : 100m |
|---|---|---|---|
| MAC: | 8K | Power Consumption: | 8 W |
| Working Temperature: | -40~75℃ | Storage Temperature: | -40~80℃ |
| High Light: | HiOSO rj45 network switch,2 100/1000M rj45 network switch,HiOSO fiber optic cable switch |
||

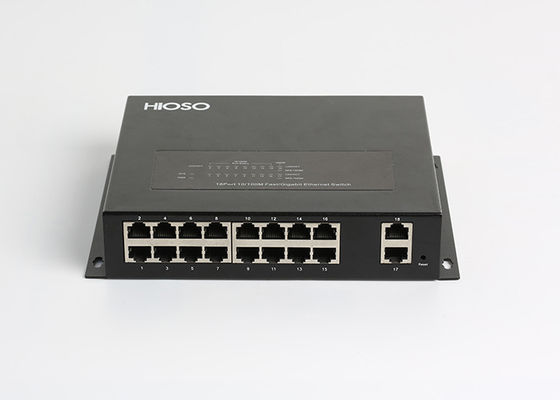

Ethernet Access Switch 16 100M Ports + 2 100 / 1000M RJ45 Ports
Overview
HiOSO Foway2318T series 18 ports 100M/1000M Security Industrial Ethernet switch, supply 16 10/100M RJ45 ports, 2 1000M RJ45 uplink ports. It supports WEB, CLI, SNMP management. It supports HD video flow transmission; support to establish redundant back bone ring type network; apply to security system, electric power system, and traffic system requirements.
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.3x Flow control, IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree,IEEE802.1w RSTP |
| Ports |
16 10/100M RJ45 ports: 10/100Mbps 2 1000M RJ45 ports |
| MAC | 8K |
| Buffer memory space | 2Mbit |
| Power | DC12V/2A dual input redundant backup |
| Working temperature | Common:-10~60℃ ; -T (wide temperature range):-40~75℃ |
| Humidity | 5%~90% non-condensing |
| Installation | Wall mounting type |
| Dimension | 42mm (H)×209mm(W)×159mm (D) |
