Product Details:
|
| Item: | POE SWITCH | Ports: | 5 Ports |
|---|---|---|---|
| MAC: | 8K | Power: | DC48V |
| MTBF: | 100000 Hours | Bit Error Rate: | <1/1000000000 |

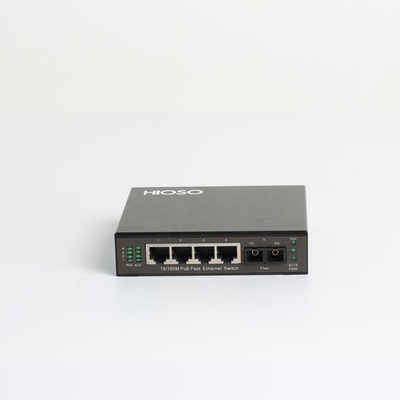

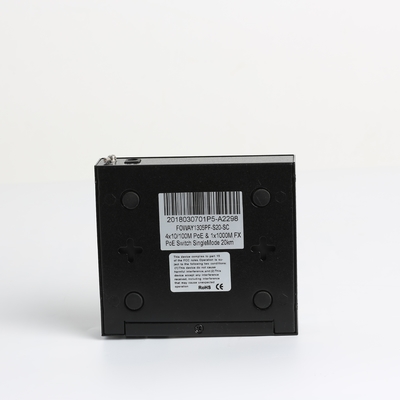

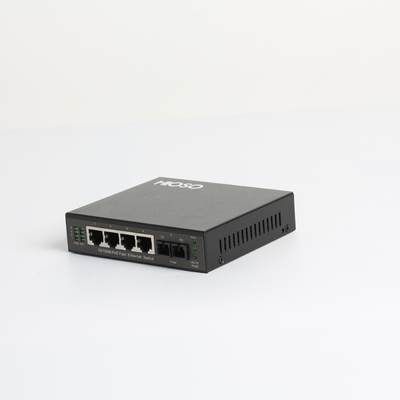

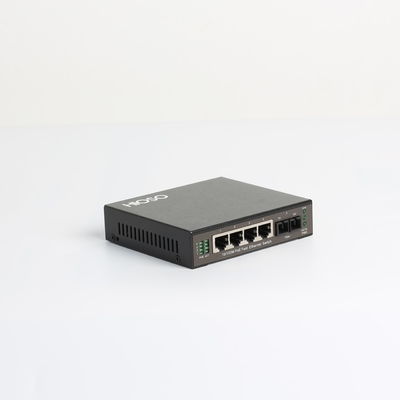

5 Ports Poe Switch 4 10/100M RJ45 PoE Ports + 1 1000M FX Fiber Port Uplink Ports
Datasheet Download: FOWAY1305PF.pdf
Character
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control |
| PoE |
Power supply ports: 4 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/ cutting |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Distance |
1000M fiber multi-mode: 220m (fiber 62.5/125μm)/ 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
| Port |
4 100M RJ45 ports (PoE optional): 10/100Mbps 1 1000M FX uplink port:SC |
| MAC | 8K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |

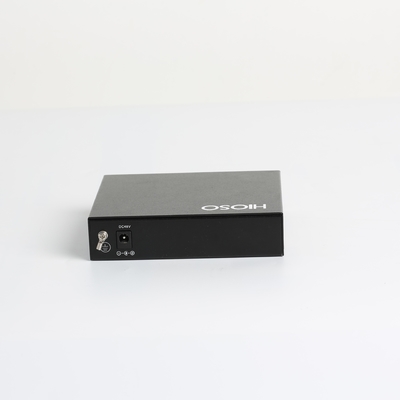

| Power | DC48V |
| Power consumption | The whole device 4.8W, PoE power supplying maximum 120W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension | 28mm (H)×120mm(W)×106mm (D) |
Order information
| No | Product code | NMS | Ports | PoE ports |
| 1 | FOWAY1305PF-8AF | No | 4 100M TP + 1 1000M FX | 4 PoE ports IEEE802.3af 62W |
| 2 | FOWAY1305PF | No | 4 100M TP + 1 1000M FX | 4 PoE ports IEEE802.3af 62W |
| 3 | FOWAY1305PF-120W | No | 4 100M TP + 1 1000M FX | 4 PoE ports IEEE802.3af/at 120W |
| 4 | FOWAY1305PFM-8AF | YES | 4 100M TP + 1 1000M FX | 4 PoE ports IEEE802.3af 62W |
| 5 | FOWAY1305PFM | YES | 4 100M TP + 1 1000M FX | 8 PoE ports IEEE802.3af/at 62W |
| 6 | FOWAY1305PFM-120W | YES | 4 100M TP + 1 1000M FX | 4 PoE ports IEEE802.3af/at 120W |
