Product Details:
|
| Product's Name: | 5 Ports Ethernet Switch | Humidity: | 5%~90% Non-condensing |
|---|---|---|---|
| Power Consumption: | 3.5W | MTBF: | 100000 Hours |
| Power: | DC12V/1A | Bit Error Rate: | <1/1000000000 |
| High Light: | 4 10/100M TP optical ethernet switch,CCC Approval optical ethernet switch,CCC Approval fiber core switch |
||
Ethernet Accesee Switch 4 10/100M TP + 1 100M FX Port 5 Ports Ethernet Switch
Overview

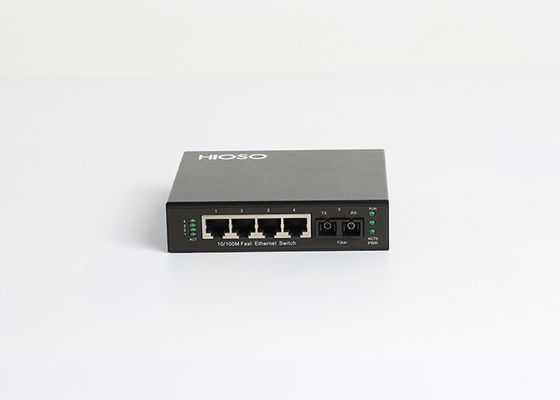

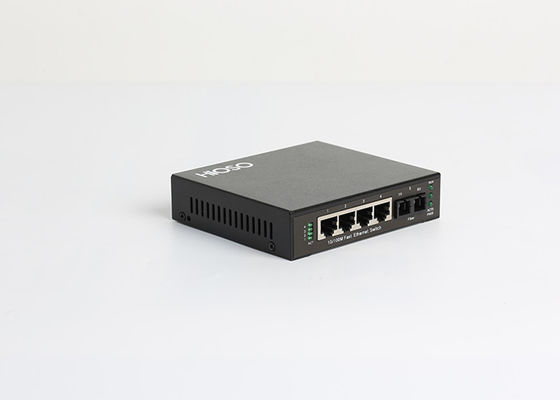

HiOSO FOWAY1205TF is our five port Ethernet switch with 4 10/100M RJ45 Ethernet ports and 1 100M SC fiber uplink port.
It can be either Managed or non managed through web/SNMP (optional). FOWAY1205TF is widely used in transmitting HD
videos with strict requirements in security, power and traffic system.
Technical Specification
| Parameter | Specification |
| Distance |
RJ45 port: 100m SC fiber port: Multi-mode: 2km; Single-mode: 10/20/40/60/80/100/120Km |
| Port |
4 10/100M RJ45 ports: 10/100Mbps 1 100M fiber uplink port: 100Mbps, SC |
| MAC address | 2K |
| Buffer memory space | 1Mbit |
| Dimension | 28mm (H)×120mm(W)×106mm (D) |
Order Information
| NO | Type | NMS | Ports | Power |
| 1 | FOWAY1205TF | NO | 7 10/100M RJ45 + 1 100M SC | DC12V |
| 2 | FOWAY1205TFM | WEB | 7 10/100M RJ45 + 1 100M SC | DC12V |
| 3 | FOWAY1205TFM-SI | WEB/SNMP | 7 10/100M RJ45 + 1 100M SC | DC12V |
