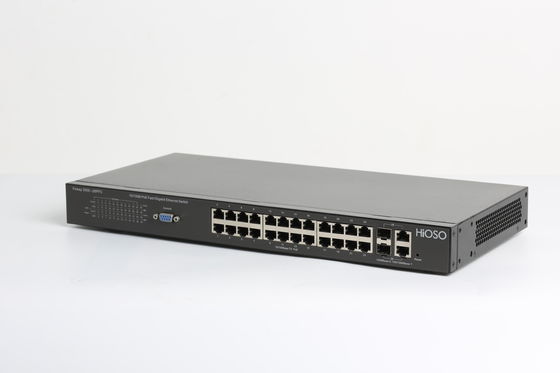

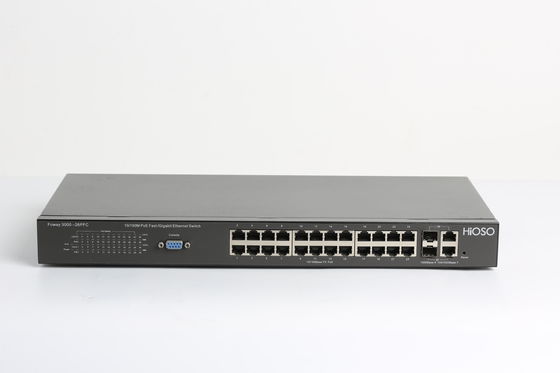

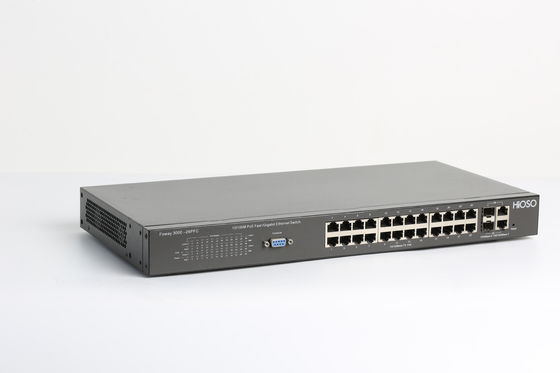

Product Details:
|
| Item: | POE SWITCH | Transmission Rate: | 100Mbps |
|---|---|---|---|
| Function: | POE / Industrial | Power Supply: | AC110V/220V |
| MAX Output Power: | 370W ( Single Port:15.4W) | Ports: | 24 100M POE + 2 1000M Combo |
| High Light: | 1000M Combo Ports 26 port poe switch,100M POE Ports 26 port poe switch,1000M Combo Ports small poe switch |
||
Character
Technical Specification
|
Parameter |
Specification |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit , IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree |
|
PoE |
Power supply ports: 24 ports Standard : IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting |
|
Wavelength |
SFP modules: 850nm/1310nm/1490nm/1550nm |
|
Distance |
100M SFP: multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP :multi-mode: 220m (fiber size:62.5/125µm) / 550m (fiber size: 50/125µm) Single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km |
|
Port |
24 100M RJ45 ports (PoE optional): 10/100Mbps 2 1000M Combo: 1 Gbps, 100/1000M SFP&10/100/1000M RJ45 |
|
MAC |
8K |
|
Buffer memory space |
3Mbit |
|
Bit error rate |
<1/1000000000 |
|
MTBF |
100000 hours |
|
Power |
AC110V/220V |
|
Power consumption |
11W for the device, PoE power maximum 370W |
|
Working temperature |
-10~60℃ |
|
Storage temperature |
-40~80℃ |
|
Humidity |
5%~90% non-condensing |
|
Dimension |
44mm (H)×440mm(W)×210mm (D) |
