Product Details:
|
| PON Standard: | GPON ITU-T G.984.x | PON Interface: | 8 GPON SFP Ports |
|---|---|---|---|
| Wavelength: | Tx1310nm, Rx 1490nm | Uplink Ports: | 4* SFP/SFP+ (GE/10GE) |
| Backplane: | 160Gbps | MAC: | Satisfy IEEE802.1d Standard |
| MAC Table: | 8k | Link Protection: | Multiple Path Backup |
Overview

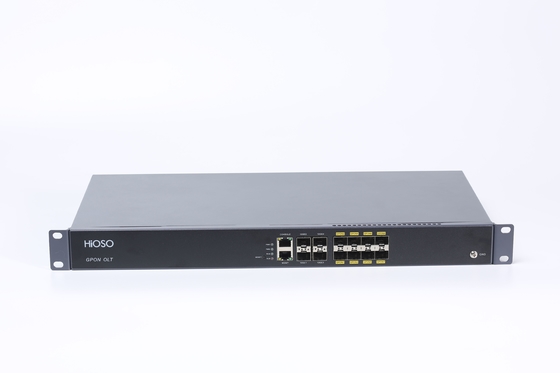

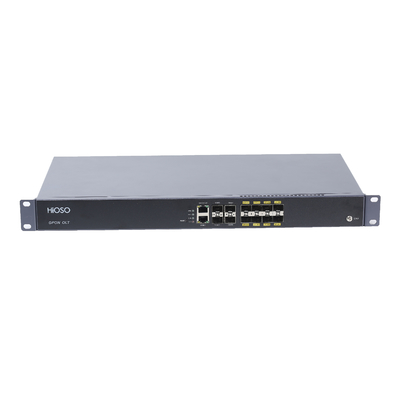

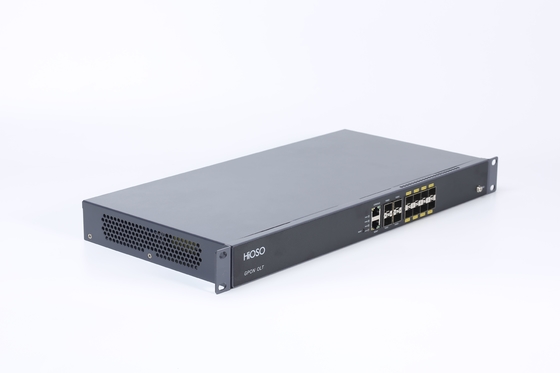

HIOSO HA7316G-J GPON OLT, which provides 16 GPON ports, 4 GE/10GE SFP/SFP+(10GE) optical uplink ports ,SFP uplink ports support optical and copper sfp modules.
HIOSO HA7316G-J has high reliability, highly dense broadband access and robust switching and routing abilities, is a new generation of broadband and multiservice access OLT devices oriented towards the service-integrated network.
HIOSO HA7316G-J OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
HIOSO HA7316G-J OLT , each PON port supports up to 128 ONUs, the whole device supports up to 1024 ONUs.
HIOSO HA7316G-J OLT Supports varies of telecom operations, management features such as MAC address binding and filtering, bandwidth control, VLAN, traffic control etc.It
supports virtual local area network (VLAN) internal traffic exchange, meet the demand of enterprise and community network application. It Supports non-convergence access of Internet Protocol television (IPTV) users. One sub rack supports 2048 multicast channels.
Feature
Technical Specification
| Parameter | Specifications |
| PON standard. |
GPON ITU-T G.984.x ITU-T G.988 standard OMCI |
| PON interface |
16*GPON SFP Ports (Supports Class B+/ Class C+/ Class C+++), Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm). Transmitting optical power: +3～+9dBmTransmission distance: 20KM. Max splitting ratio1:128 |
| Upstream 2.488G, Downstream 1.244G | |
| Wavelength | Tx1310nm, Rx 1490nm |
| Uplink ports | 4* SFP/SFP+ (GE/10GE) |
| Management Ports |
1*10/100BASE-T MGMT port 1*CONSOLE port |
| Backplane | 160Gbps |
| Switching Capacity of the Control Board | 160Gbps |
| MAC table | 8K |
| MAC |
Satisfy IEEE802.1d standard Supports 8K MAC address capacity Supports for MAC address automatic learning and aging Supports static and dynamic MAC table entries |
| VLAN |
Supports 4096 VLAN Supports VLAN passthrough, 1:1 VLAN conversion, N:1 VLAN aggregation, and QinQ functions Supports port QinQ and flexible QinQ (Stack VLAN) Supports the addition, deletion, and replacement of VLAN based on ONU service flow |
| RSTP |
Compatible Spanning Tree Protocol (STP) Supports configuring transit limit Supports configuring spanning tree bridge priority Supports configuring spanning tree Max age Supports fast convergence |
| Port |
Supports Bi-directional bandwidth speed limit for ports Supports port storm control Supports port ACL function Supports port isolationPN8600-G OLT Product Specifications Specifications are subject to change without notice. 4 Supports port mirroring Supports port optical module management Supports port traffic statistics and monitoring Supports static and LACP dynamic aggregation port aggregation |
| LACP |
Link aggregation supporting single or double layer VLAN Supports 2 TRUNK groups Supports load sharing mode Supports system priority configuration function |
| Ethernet protocol |
IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1ad, VLAN QinQ IEEE 802.1w, RSTP IEEE 802.3ad physical link static / dynamic aggregation (LACP) |
|
DHCP
|
DHCP Relay /Snooping Supports Option60 to identify device types Supports custom extended device type Supports inserting Option82 information for DHCP relay message DHCPv6 Relay |
|
IP routing
|
Supports IPv4/v6 static routing Supports IPv4 dynamic routing protocols for OSPF, ISIS, and BGP Supports IPv6 dynamic routing protocols for OSPFv3 and ISISv6 Supports 512 hardware IPv4 routing tables Supports 8k IPv4 arp table entries Supports 8K IPv6 neighbor table entries |
| Multicast |
Supports IGMP v1/v2/v3, IGMP Snooping, and IGMP Proxy Supports MLDv1/v2, MLD Snooping, and Proxy Supports controllable multicast and VLAN based IPTV multicast Supports 2048 hardware multicast tables |
|
QoS
|
Supports data packet priority labeling and stream classification Supports 8 priority queues and provides SP and WRR scheduling strategies Supports CAR, traffic supervision, and traffic shaping Supports congestion avoidance mechanisms, including functions such as Tail-Drop and WRED |
| ACL |
Supports for standard and extended ACL Supports flow classification and definition based on source/destination MAC, source/destination IP, source/destination protocol port, VLAN ID, Ethernet protocol type, IP upper layer protocol type, IP protocol version, 802.1P priority, IP priority, DSCP priority, etc Supports packet mirroring and redirection for ports or custom streams Supports ACL based on source IPv6 address, destination IPv6 address, port number, protocol type, etc |
| Link protection |
Multiple path backup BFD, Traffic protection can be performed when link failure occurs |
| Equipment protection |
Dual power board redundant backup, supporting multiple redundancy modes of AC-AC, DC-DC, and AC-DC |
| User security |
Anti-ARP-spoofing, anti-ARP-flooding MAC address binds to port and port MAC address filtration ACL controls TELNET access Tacacs, Radius, Local enable, None authentication |
|
Device security
|
Anti-DOS attack, ARP detection and worm attack https Web Server SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
| Network security |
Dynamic ARP table-based binding Supports IP+VLAN+MAC+Port binding Anti-attack flood attack and automatic suppression URPF to prevent IP address counterfeit and attack DHCP Option82 upload user’s physical location Plaintext authentication of OSPF, BGPv4 and MD5 cryptograph authentication Data log and RFC 3164 BSD syslog Protocol
|
Working Environment
| Parameter | Specification |
| Power | AC 90--2604V 15A over current protection |
| Power consumption | <100W |
| Working temperature | -10～55℃ |
| Storage temperature | -40～70℃ |
| Humidity | 5%～90% non-condensing |
| Size | 483mm×220mm×44mm(L×W×H) |
| Net weight | 3.1Kg |
