Product Details:
|
Product Name: | GPON OLT | PON Standard: | ITU-T G984/G.988 |
---|---|---|---|
Wavelength: | Tx1310nm, Rx 1490nm | Application: | FTTH FTTB FTTX Network |
Warranty: | 3 Years | Distance: | 20km |
High Light: | Tx 1310nm GPON OLT,8 GE RJ45 Ports GPON OLT,Rx 1490nm Ports mini gpon olt |

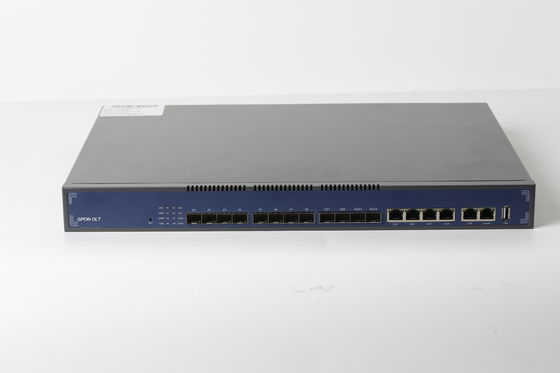

8 Ports Gpon Olt 1u Rack 8 GE RJ45 Ports + 6 GE SFP + 2 10 GE SFP Ports
Overview
HA7308CF GPON OLT, which provides 8 GPON ports, 8 GE copper RJ45 ethernet ports, 6 SFP(GE) and 2SFP+(10GE) optical uplink ports , it has high reliability, highly dense broadband access and robust switching and routing abilities, is a new generation of broadband and multiservice access OLT devices oriented towards the service-integrated network.
HA7308GF OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, the whole device supports up to 1024 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It is appropriate to be deployed in compact room environment. The OLTs can also be used for “Triple-Play” applications.
Feature
Technical parameters
Items | Specifications |
PON standard. | GPON ITU-T G.984.x |
PON interface | 8*GPON SFP Ports (Class C+), Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3~+7dBmTransmission distance: 20KM. Max splitting ratio1:128 |
Upstream 2.488G, Downstream 1.244G | |
Wavelength | Tx1310nm, Rx 1490nm |
Uplink | 8*copper Ethernet ports 10/100/1000M auto-negotiation |
6*SFP(GE) | |
2* SFP+ (10GE) | |
Layer 3 | Support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes |
Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port |
Management Mode | SNMP,Telnet,CLI,WEB,SSH v1/v2 |
Backplane | 128Gbps |
MAC table | 16K |
Operating condition | Operating temp: -5 ~ +55℃ |
Storing condition | Storing temp: -40 ~ +85℃ |
Humidity | 5~90%(non-condensing) |
Power consumption | ≤45W |
Dimension | 442mm×200mm×44mm(L×W×H) |
Net weight | 3.1Kg |
Datasheet download: 8pon GPON HA7308GF OLT.pdf
