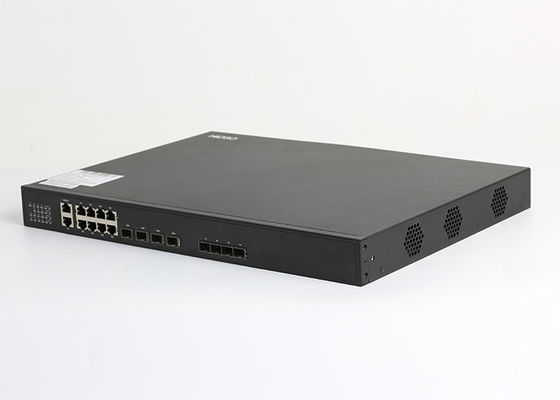

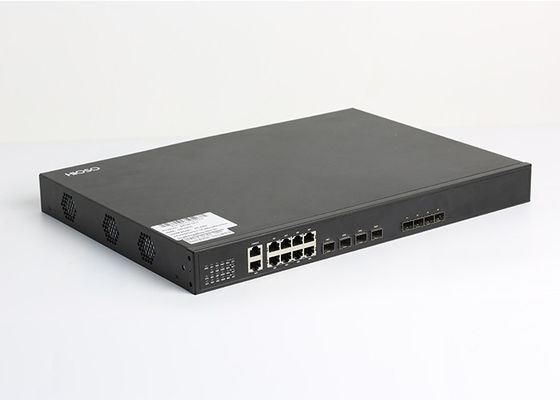

16 SFP GPON Ports HiOSO OLT For Fiber , ONT OLT for FTTX network

16 SFP GPON Ports HiOSO OLT For Fiber , ONT OLT for FTTX network
16 SFP GPON Ports HiOSO OLT For Fiber , ONT OLT for FTTX network 16 SFP GPON Ports HiOSO OLT For Fiber , ONT OLT for FTTX network

Large Image :  16 SFP GPON Ports HiOSO OLT For Fiber , ONT OLT for FTTX network

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: HA7316G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 53x48x25 CM
Delivery Time: 3-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500pcs / month

16 SFP GPON Ports HiOSO OLT For Fiber , ONT OLT for FTTX network

Product Name: Gpon OLT
High Light:

16 SFP GPON ports olt for fiber


HiOSO olt for fiber


HiOSO ont olt

Hot selling 16 port gpon olt with CE certificate



l Support ITU-TG 984x standard

l Supply 16 SFP GPON ports, 4 Combo uplink ports, 2 10G SFP+ uplink ports


l 1U rack design, inside fan,better for heat dissipating and reliability operating

l Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access


Hot selling 16 port gpon olt with CE certificateHot selling 16 port gpon olt with CE certificate



Technical Specification

Parameter Specification
Switching Capacity 140Gbps
Forwarding Capacity(Ipv4/Ipv6) 104MPPS
Service Port

16*PON port

4*GE COMBO port, 2*10GE SFP+ port

Redundancy Design

Single power supply or dual power supply

Support AC input, or DC input

Power Supply

AC: input 90~264V 47/63Hz;

DC: input -36V~-72V;

Power Consumption ≤110W
Dimensions 440mm×44mm×380mm
Weight (Full-Loaded) ≤3kg
Environmental Requirements

Working temperature: -10°C~55°C

Storage temperature: -40°C~70°C

Relative humidity: 10%~90%, non-condensing



Product Features

Parameter Specification

PON Features



ITU-TG.984.x standard

Maximum 20 Km PON transmission distance

access 128 terminals for single fiber PON

Uplink and downlink triple churning encrypted function with 128Bits


L2 Features MAC MAC Black Hole; Port MAC Limit; 64K MAC (packet exchange chip cache 2MB, external cache 720 MB )

4K VLAN entries; Port-based/MAC-based/protocol/IP subnet-based ; QinQ and flexible QinQ (StackedVLAN)

VLAN Swap and VLAN Remark; PVLAN to realize port isolation and saving public-vlan resources; GVRP

STP STP/RSTP/MSTP; Remote loop detecting

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol); Port mirroring



User's Security

Anti-ARP-spoofing ; Port Isolation

IP Source Guard create IP+VLAN+MAC+Port binding

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication

Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP

detection, worm and Msblaster worm attack


Network Security


Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address oem and attack

DHCP Option82 and PPPoE+ upload user's physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5; cryptograph authentication

Service Features



Pv4/IPv6) address, TCP/UDP port number, protocol type, etc

packet filtration of L2~L7 deep to 80 bytes of IP packet head


nd flow statistics

Packet mirror and redirection of interface and self-defined flow

Super queue scheduler based on port or self-defined flow. Each port/

flow supports 8 priority queues and scheduler of SP, WRR and


Congestion avoid mechanism, including Tail-Drop and WRED


ARP Proxy, DHCP Relay, DHCP Server

Static Routing, RIPv1/v2, OSPFv2, BGPv4

Equivalent Routing, Routing Strategy


ICMPv6, ICMPv6 Redirection, DHCPv6,ACLv6, OSPFv3, RIPng

BGP4+, Configured Tunnels, ISATAP, 6to4 Tunnels

Dual stack of IPv6 and IPv4


IGMPv1/v2/v3, IGMPv1/v2/v3 Snooping

IGMP Filter, MVR and cross VLAN multicast oem


Reliability Loop Protection EAPS and GERP (recover-time <50ms), Loop back detection
Link Protection

FlexLink (recover-time <50ms), RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms), BFD

Device Protection VRRP host backup , 1+1 power hot backup
Maintenance Network Maintenance

Port real-time, utilization and transmit/receive statistic based on Telnet; RFC3176 sFlow analysis; LLDP, GPON OMCI

RFC 3164 BSD syslog Protocol; Ping and Traceroute

Device Management


RMON (Remote Monitoring)1,2,3,9 groups MIB


NGBNView network management
