Single Power Supply 110W 4 Combo Uplink Ports GPON OLT With CCC Certificate

Single Power Supply 110W 4 Combo Uplink Ports GPON OLT With CCC Certificate
Single Power Supply 110W 4 Combo Uplink Ports GPON OLT With CCC Certificate Single Power Supply 110W 4 Combo Uplink Ports GPON OLT With CCC Certificate

Large Image :  Single Power Supply 110W 4 Combo Uplink Ports GPON OLT With CCC Certificate

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: HA7316G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 53x48x25 CM
Delivery Time: 3-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500pcs / month

Single Power Supply 110W 4 Combo Uplink Ports GPON OLT With CCC Certificate

Description
High Light:

CCC certificate GPON OLT

,

4 Combo uplink ports GPON OLT

,

4 Combo uplink ports gpon sfp

16 Port Gpon Olt Each PON Port Support Maximum Splitting Ratio 1:128



Feature

  • Support ITU-TG 984x standard

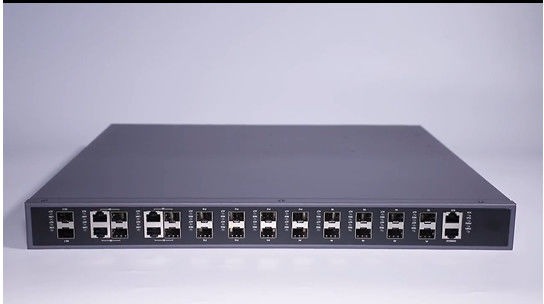

  • Supply 16 SFP GPON ports, 4 Combo uplink ports, 2 10G SFP+ uplink ports
  • Each PON port support maximum splitting ratio 1:128
  • Distance can reach 20km



Technical Specification



Parameter Specification
Switching Capacity 140Gbps
Forwarding Capacity(Ipv4/Ipv6) 104MPPS
Service Port

16*PON port

4*GE COMBO port, 2*10GE SFP+ port

Redundancy Design

Single power supply or dual power supply

Support AC input, or DC input

Power Supply

AC: input 90~264V 47/63Hz;

DC: input -36V~-72V;

Power Consumption ≤110W
Dimensions 440mm×44mm×380mm
Weight (Full-Loaded) ≤3kg
Environmental Requirements

Working temperature: -10°C~55°C

Storage temperature: -40°C~70°C

Relative humidity: 10%~90%, non-condensing



Parameter Specification

PON Features



 ONU terminal legitimacy certification, report illegal ONU registration



DBA algorithm, the particle is 1Kbit/s

Standard OMCI management function

ONU batch software upgrade, fixed time upgrade, real time upgrade

PON port optical power detection

L2 Features MAC MAC Black Hole; Port MAC Limit; 64K MAC (packet exchange chip cache 2MB, external cache 720 MB )
VLAN

VLAN Swap and VLAN Remark; PVLAN to realize port isolation and saving public-vlan resources; GVRP

STP STP/RSTP/MSTP; Remote loop detecting
Port

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol); Port mirroring

Security

Features

User's Security

Anti-ARP-spoofing ; Port Isolation

IP Source Guard create IP+VLAN+MAC+Port binding

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication

Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP

detection, worm and Msblaster worm attack

SSHv2 Secure Shell; SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

Network Security

Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address oem and attack

Service Features



ACL

Standard and extended ACL

Time Range ACL

Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port number, protocol type, etc



QoS



flow supports 8 priority queues and scheduler of SP, WRR and

SP+WRR.

Congestion avoid mechanism, including Tail-Drop and WRED

IPv4

ARP Proxy, DHCP Relay, DHCP Server

Static Routing, RIPv1/v2, OSPFv2, BGPv4

Equivalent Routing, Routing Strategy

IPv6

ICMPv6, ICMPv6 Redirection, DHCPv6,ACLv6, OSPFv3, RIPng

Multicast



IGMP Fast leave, IGMP Proxy, PIM-SM/PIM-DM/PIM-SSM

PIM-SMv6, PIM-DMv6, PIM-SSMv6, MLDv2/MLDv2 Snooping

Reliability Loop Protection EAPS and GERP (recover-time <50ms), Loop back detection
Link Protection

FlexLink (recover-time <50ms), RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms), BFD

Device Protection VRRP host backup , 1+1 power hot backup
Maintenance Network Maintenance

Port real-time, utilization and transmit/receive statistic based on Telnet; RFC3176 sFlow analysis; LLDP, GPON OMCI

RFC 3164 BSD syslog Protocol; Ping and Traceroute

Device Management

CLI, Console port, Telnet and WEB

SNMPv1/v2/v3

RMON (Remote Monitoring)1,2,3,9 groups MIB

NTP

NGBNView network management

Single Power Supply 110W 4 Combo Uplink Ports GPON OLT With CCC Certificate 0Single Power Supply 110W 4 Combo Uplink Ports GPON OLT With CCC Certificate 1
