Product Details:
|
| Power Consumption: | <6W | Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Type: | FTTx Solutions | Supports Dual Mode: | Can Access GPON/EPON OLT |
| Power Supply: | DC12V/1A | Net Weight: | <0.4KG |
| High Light: | RF WIFI XPON ONU,1GE 3FE WIFI XPON ONU,1GE 3FE epon dual band router |
||

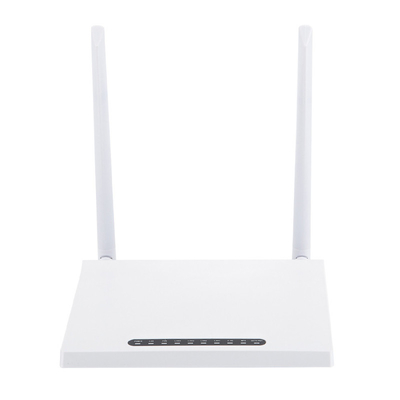

XPON 1G3F+WIFI+CATV
1*10/100/1000M and 3*10/100M Ethernet interface, 1 GPON interface, built-in FWDM, 1 RF interface, support Wi-Fi function, support AGC, plastic casing, external power supply adapter
Application
Specification
| Technical Item | Details |
| PON interface |
1 E/GPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+4dBm Transmission distance: 20KM |
| LAN interface | 1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM |
| CATV Interface |
RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| LED | 10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4, NORMAL(CATV) |
| Push-Button | 3, for Function of Power on/off, Reset, WPS |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%(non-condensing) |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.4kg |
Feature
