Product Details:
|
| Product Namee: | Wifi ONU | Colour: | White |
|---|---|---|---|
| Material: | Plastic Casing | Ports: | 2GE+4WIFI+CATV+POTs |
| Rate: | 10/100/1000Mbps | Type: | FTTx Solutions |
| Power Supply: | DC 12V/1A | WIFI Interface: | Compliant With IEEE802.11b/g/n/ac 2.4GHz Operating Frequency: 2.400-2.483GHz 5.0GHz Operating Frequency: 5.150-5.825GHz |
| Highlight: | FTTO Dual band ONU,2GE Dual band ONU,Plastic Casing Wifi ONU |
||
Dualband ONU 2GE WIFI CATV POTS
Overview
Feature
Specification
| Technical Item | Details |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 2 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector |
| WIFI Interface | Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 2*2MIMO, 5dBi external antenna, rate up to 867Gbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
| CATV Interface | RF, optical power : +2~-18dBm Optical reflection loss: ≥60dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| POTS Interface | RJ11 Max 1km distance Balanced Ring, 50V RMS |
| LED | 10 LED, For Status of PWR,LOS,PON,LAN1,LAN2,2.4G,5.8G, WARN, Normal(CATV), FXS |
| Push-Button | 3 button for Function of Power on/off, Reset, WPS |
| Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%(non-condensing) |
| Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.3kg |
Panel lights and Introduction
| Pilot Lamp | Status | Description |
| 2.4G | On | 2.4G WIFI up |
| Blink | 2.4G WIFI is sending or/and receiving data (ACT). | |
| Off | 2.4G WIFI down | |
| 5.8G | On | 5G WIFI up |
| Blink | 5G WIFI is sending or/and receiving data (ACT). | |
| Off | 5G WIFI down | |
| PWR | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
| FXS | On | Telephone has registered to the SIP Server. |
| Blink | Telephone has registered and data transmission (ACT). | |
| Off | Telephone registration is incorrect. | |
WARN | On | Input optical power is higher than 2dBm or lower than -18dBm |
| Off | Input optical power is between -18dBm and 2dBm | |
Normal | On | Input optical power is between -18dBm and 2dBm |
| Off | Input optical power is higher than 2dBm or lower than -18dBm |
Application

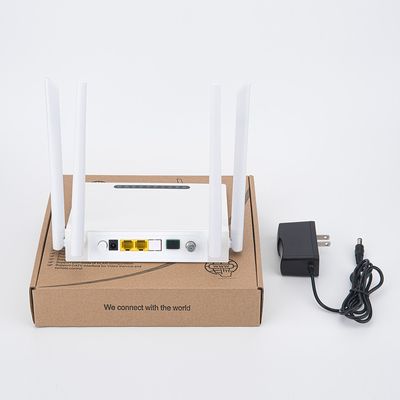

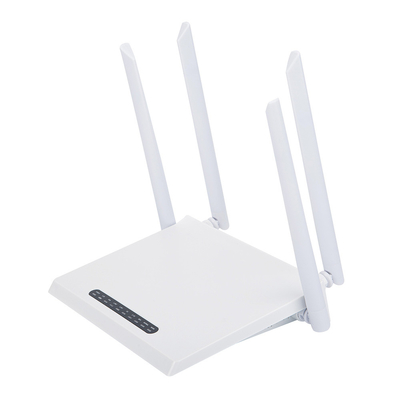

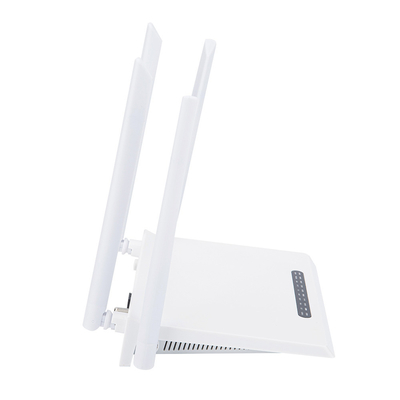

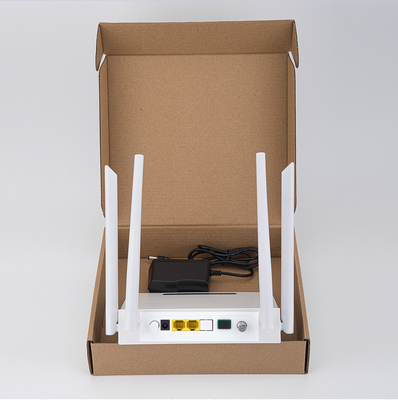

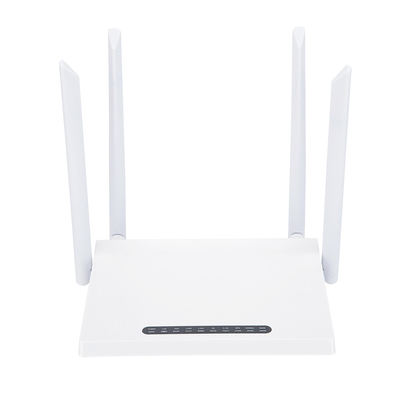

Appearance
Ordering information
| Product Name | Product Model | Descriptions |
2G WIFI CATV POTS Dualband | CX1112R007 | 2*10/100/1000M, 1 GPON interface, RJ11 interface , built-in FWDM, 1 RF interface, support WIFI 5G&2.4G, support CATV AGC, plastic casing, external power supply adapter |
