Product Details:
|
| Transmission Distance: | 100m-120km Optional | Operating Temperature: | -10~55°C |
|---|---|---|---|
| Warranty: | 3 Years | Type: | Fiber Media Converter |
| Material: | Metal Casing | Data Rate: | 10/100/1000Mbps |
| High Light: | Gigabit Ethernet Fiber Media Converter,SFP Gigabit Fiber Media Converter,5W gigabit media converter |
||

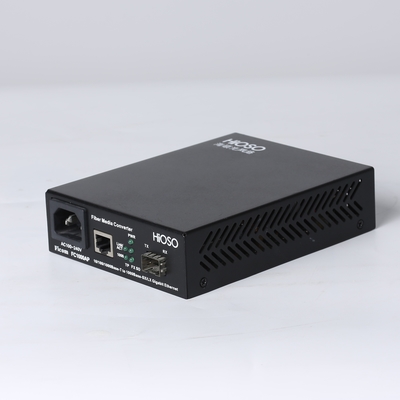

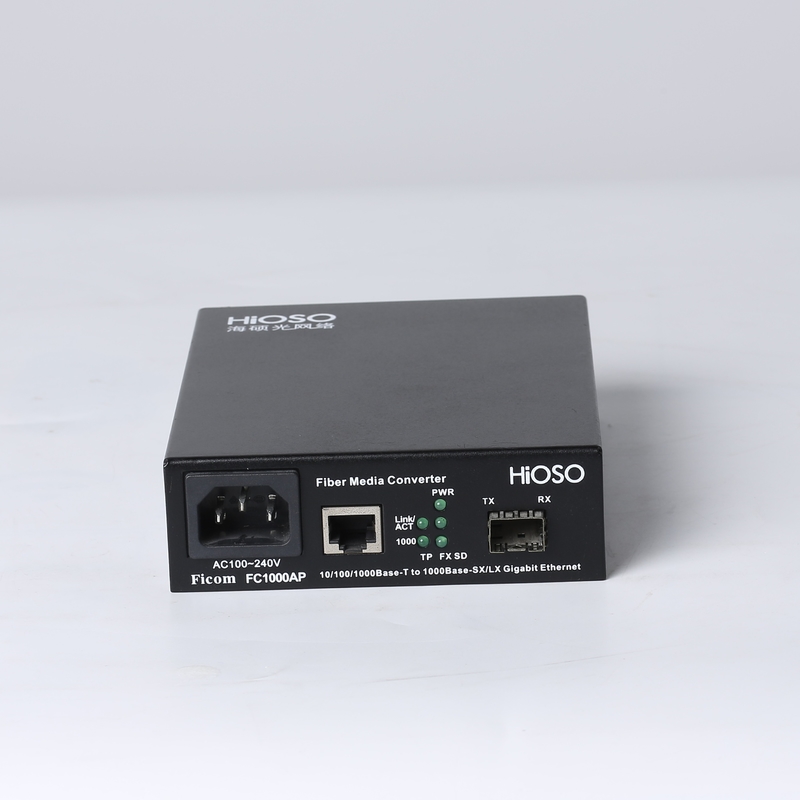

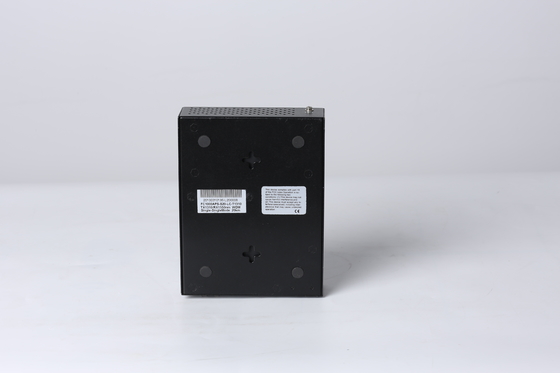

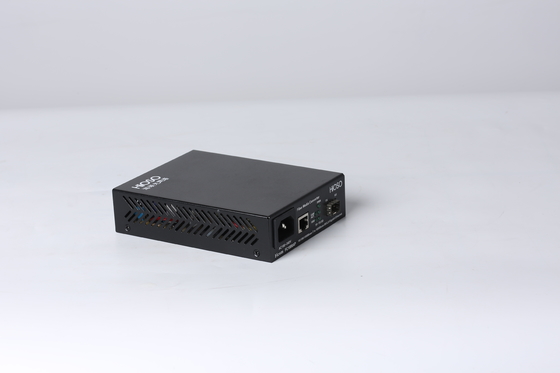

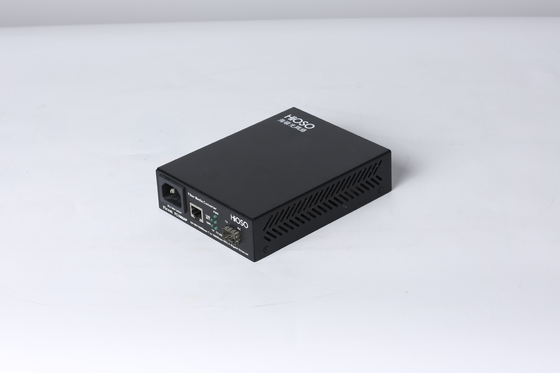

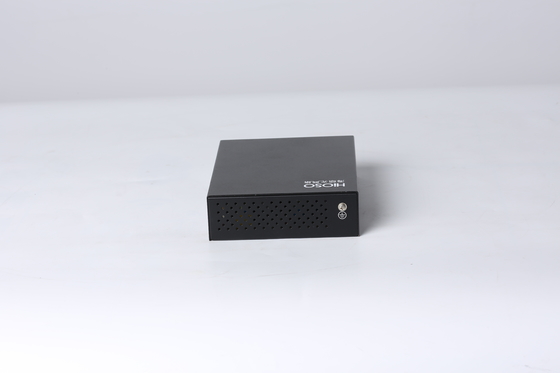

HiOSO FC1000AP-SFP SFP Gigabit Fiber media converter
Technical Specifications
| Parameters | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1qVLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 220m (fiber size: 62.5/125μm)/550m (fiber size: 50/125μm) Dual-fiber single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80Km Category-5 twisted pairs: 100m |
| Port | One RJ45 port: Connected to STP/UTP category-5 twisted pairs One fiber port: 1000M SFP |
| Conversion mode | Medium conversion |
| Delay | <10μs |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER (power), FX LINK (fiber link action), TP LINK1000 (twisted pair connection 1000M), TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action) |
| Power | external DC5V |
| Power consumption | 5W |
| Operating temperature | -10~55°C |
| Operating humidity | 5%~90% |
| Storage temperature | -40~70°C |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions | 26mm(H)*71mm(W)*95mm(D)(height * width * depth)(external power) |
Overview
HiOSO FC1000AP-SFP
Gigabit Ethernet Fiber Converter applies the switching technology, meets the standards of IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab.
It supports 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX. It can conduct mutual conversion between 10Base-T/100Base-TX/1000Base-T twisted pair electrical signal and 1000Base-SX/LX optical signals.
Our fiber media converter extends the transmission distance of a network from 100m over copper wires to 120Km. Can change transmission distance equipped different sfp modules
Feature
Gigabit Ethernet media converter with SFP slot
With one LC fiber connector and one RJ45 connector
Supporting full-duplex and half-duplex transmission modes and capable of automatic negotiation;
Supporting automatic cross of twisted pair ports, for the convenience of system debugging and installation;
Supporting the transmission of extra-long packets over VLAN;
Supporting Quality of Service (QoS) and ensuring transmission of VoIP packets;
Supporting Spanning Tree Protocol (STP) to form a redundant network;
Supporting multiple types of fiber ports such as dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users
Our Service:
HiOSO provides technician team and special telephones to support after-sales service, customer can get answer and training from our technicians, the problem can be solved within 24 hours if there is anything with products. What's more, we provide free-exchange within one year, free-repair within three years and lifelong maintenance.
Our advantage:
Founded in 2002, Hioso Technology CO., Ltd. is the optic communication product manufacturer with 20 years experience. We engaged in the R&D, design, manufacture, sell FTTH and FTTD products all by ourselves and also provide OEM&ODM service for customers. We only provide cost-effective quality products and premium after-sale service.
FAQ:
1. Manufacturing: We are a powerful factory with 1700mand more than 100 staff.OEM and ODM are warmly welcomed
2. Professional R&D center: We have a professional and indepen- dent R&D team. Most our engineers have more than 5 years experience
3. Fast dispatch: Most of the products are in stock. Below10pcs can arrange delivery within 3 days
4. Small order accepted:Low MOQ accepted1pcs are available
5. Insurance: all products have 3 years warranty
