Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps

Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps
Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps

Large Image :  Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps

Product Details:
Place of Origin: China
Brand Name: HiOSO
Certification: CCC
Model Number: FOWAY3000-18FSCM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: 44*277*190 mm (H*W*D)
Delivery Time: 2-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Contact Now

Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps

Description
Type: Fiber Switch, FTTx Solutions Ports: 16 10/100M Sfp Ports+ 2 1000M SFP/2 100/1000M RJ45 Uplink
Model Number000-18FSCM: FOWAY3000-18FSCM Transmission Rate: 100Mbps
Function: WEB Management Power Supply: AC100-240v 50/60HZ
Brand Name: HiOSO Dimension: 44*277*190 Mm (H*W*D)
High Light:

100Mbps Fiber Optic Switch

,

FTTx Solutions Fiber Optic Switch

,

100Mbps fiber media converter switch

FOWAY3000-18FSC 16 100M SFP + 2 Combo uplink Fiber Switch
Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps 0

✔Support 16 100M SFP fiber ports and 2 GE Combo ports (100M/1000M SFP fiber port and 10/100/1000M RJ45 port interchange) ✔Support 8K MAC learning, 2Mbit storage and forward cache space, 15.2G back plane bandwidth,1632 byte large frame forwarding ✔Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault ✔All optic ports, strengthen the an-interference ability ✔Metal casing design (support to hang on the wall), better for heat dissipation
Technical Specification
Parameter
Specification


Standard
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, , IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet, , IEEE802.1d Spanning Tree Protocol, IEEE802.1w Rapid STP, IEEE802.1s Multiple STP, IEEE802.1q VLAN, IEEE802.1p QoS,
IEEE802.3ad Trunk,IEEE802.3X Flow Control
Wavelength
SFP module: 850nm/1310nm/1490nm/1550nm


Distance
100M SFP multi-mode: 2Km
Single-mode: 20/40/60/80/100/120Km
Single-fiber single-mode: 25/40/60/80/100/120Km
1000M SFP multi-mode:220mfiber 62.5/125μm)/ 550m(fiber 50/125μm)
Single-mode:10/20/40/60/80/100/120Km
Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m


Port
16 100M SFP fiber ports: 100Mbps
2 Gigabit Combo ports:1 Gbps, 100/1000M SFP&10/100/1000M RJ45
MAC
8K
Buffer memory space
2Mbit
Bit error rate
<1/1000000000
MTBF
100000 hours
Power
AC100~240V 50/60HZ
Power consumption
16W
Working temperature
-10~60℃
Storage temperature
-40~80℃
Humidity
5%~90% non-condensing
Dimension
44mm (H)×276mm(W)×190mm (D)
Details Images

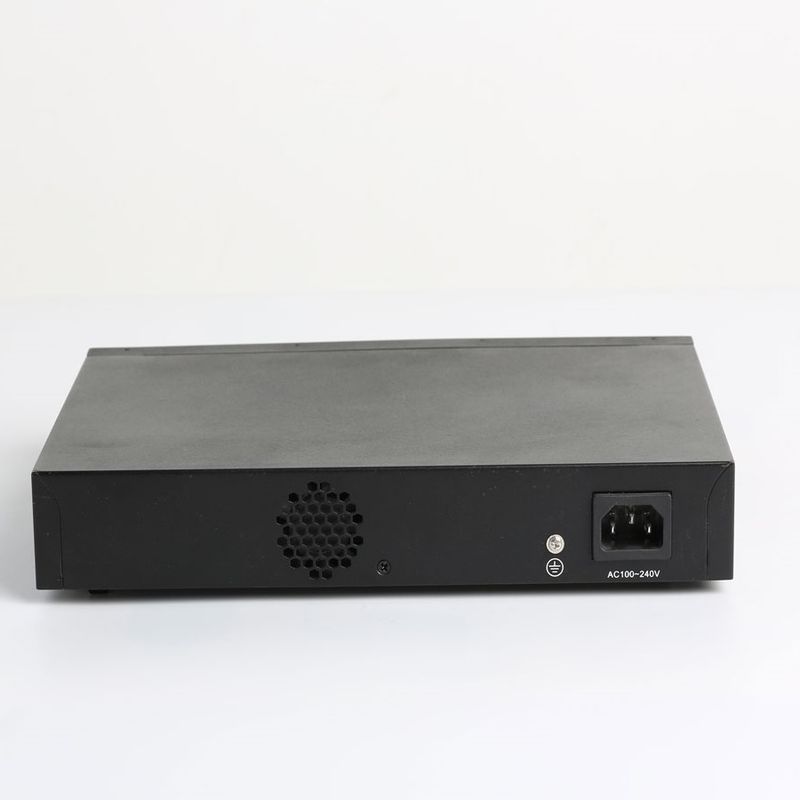

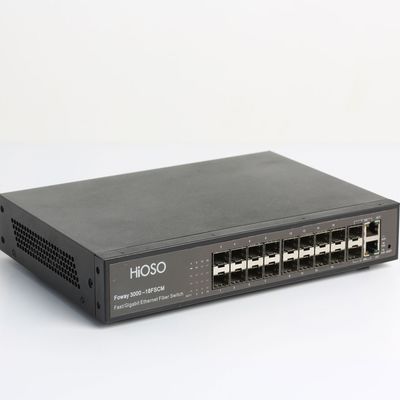

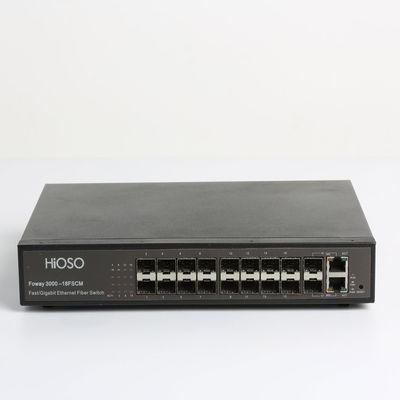

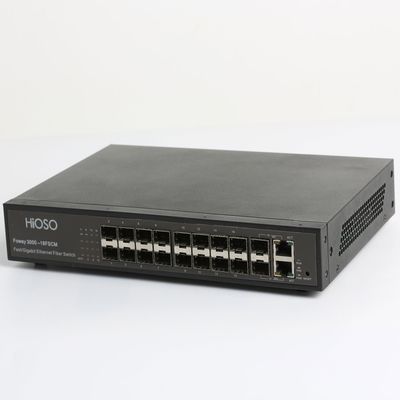

Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps 1
Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps 2
Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps 3
Single Fiber Single Mode FTTx Solutions Fiber Optic Switch Fiber 100Mbps 4
Foway 3000-18FSCM
16 100M SFP fiber ports: 100Mbps
2 Gigabit Combo ports:1 Gbps, 100/1000M SFP&10/100/1000M RJ45
