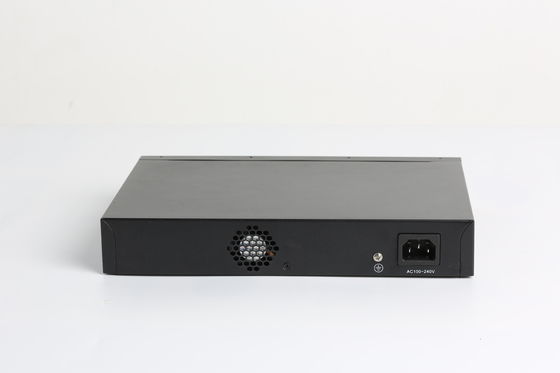

Large Image :  Hioso Fiber Switch 16 +2 Combo Uplink AC100V Optic Switch Support Web Snmp Security Electronic Power

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: FOWAY3000-18FSC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 38X24X18 CM
Delivery Time: 2-12 work days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 5000 pcs/month
Contact Now

Hioso Fiber Switch 16 +2 Combo Uplink AC100V Optic Switch Support Web Snmp Security Electronic Power

Description
Product Name: 16+2 Ports Fiber Switch Support: DHCP, PPPoE, ACL, LLDP
MAC Learning: 8K Consumption: 16W
Management: WEB And SNMP Distance: 100m-120km
High Light:

AC100V Fiber Optic Switch

,

HiOSO Fiber Optic Switch

,

AC100V fiber switch router

18 Ports Fiber Optic Sqitch 16 100M SFP Ports + 2 Combo Uplink Ports



Overview



HiOSO FOWAY3000-18FSC series 18 ports 100M and1000M hybrid all optic fiber switch supply16 100M SFP fiber ports access and 2 Gigabit Combo ports (100/1000M SFP port or 10/100/1000M adaptive RJ45 Ethernet optional) uplink.



FOWAY3000-18FSC series support SFP modules hot swap; support to work with fiber switches, fiber converters and other devices with fiber ports; support WEB management and SNMP management (optional);support to transmit HD video flow;streamlined network structure(equal to 16 units fiber media converter and an Ethernet switch ), apply to security system, electronic power system and traffic system requirements.



Character

  • Support 16 100M SFP fiber ports and 2 GE Combo ports (100M/1000M SFP fiber port and 10/100/1000M RJ45 port interchange)
  • Support SFP hot swap
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc
  • Support DHCP, PPPoE, ACL, LLDP
  • Support 8K MAC learning, 2Mbit storage and forward cache space, 15.2G back plane bandwidth,1632 byte large frame forwarding
  • Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault
  • All optic ports, strengthen the an-interference ability
  • Metal casing design (support to hang on the wall), better for heat dissipation

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, , IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, , IEEE802.1d Spanning Tree Protocol, IEEE802.1w Rapid STP, IEEE802.1s Multiple STP, IEEE802.1q VLAN, IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control
Wavelength SFP module: 850nm/1310nm/1490nm/1550nm
Distance

100M SFP multi-mode: 2Km

Single-mode: 20/40/60/80/100/120Km

Single-fiber single-mode: 25/40/60/80/100/120Km

1000M SFP multi-mode:220mfiber 62.5/125μm)/ 550m(fiber 50/125μm)

Single-mode:10/20/40/60/80/100/120Km

Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m
Port

16 100M SFP fiber ports: 100Mbps

2 Gigabit Combo ports:1 Gbps, 100/1000M SFP&10/100/1000M RJ45
MAC 8K
Buffer memory space 2Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power AC100~240V 50/60HZ
Power consumption 16W
Working temperature -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 44mm (H)×276mm(W)×190mm (D)





Order Information

Type Management Ports Power
FOWAY3000-18FSC NOT 16 100M SFP ports +2 Gigabit Combo uplink ports AC100~240V
FOWAY3000-18FSCM Support 16 100M SFP ports + 2 Gigabit Combo uplink ports AC100~240V





Hioso Fiber Switch 16 +2 Combo Uplink AC100V Optic Switch Support Web Snmp Security Electronic Power 0

Hioso Fiber Switch 16 +2 Combo Uplink AC100V Optic Switch Support Web Snmp Security Electronic Power 1



Specification Datasheet Download: FOWAY3000-18FSC 100M 1000M fiber switch.pdf



Our Service:
HiOSO provides technician team and special telephones to support after-sales service, customer can get answer and training from our technicians, the problem can be solved within 24 hours if there is anything with products. What's more, we provide free-exchange within one year, free-repair within three years and lifelong maintenance.

Our advantage:
Founded in 2002, Hioso Technology CO., Ltd. is the optic communication product manufacturer with 20 years experience. We engaged in the R&D, design, manufacture, sell FTTH and FTTD products all by ourselves and also provide OEM&ODM service for customers. We only provide cost-effective quality products and premium after-sale service.
