Product Details:
|
| Type: | Fiber Switch | Ports: | 22 1000M SFP Ports+2 1000M Combo Ports |
|---|---|---|---|
| MAC: | 16K | Bit Error Rate: | <1/1000000000 |
| MTBF: | 100000 Hours | Power: | 110-230Vac 50-60HZ |
| Working Temperature: | -10~60℃ | Dimension: | 44mm (H)×440mm(W)×210mm (D) |
| Highlight: | 1000M Combo Ports sfp fiber switch,HiOSO sfp fiber switch,HiOSO optical line protection switch |
||
Overview

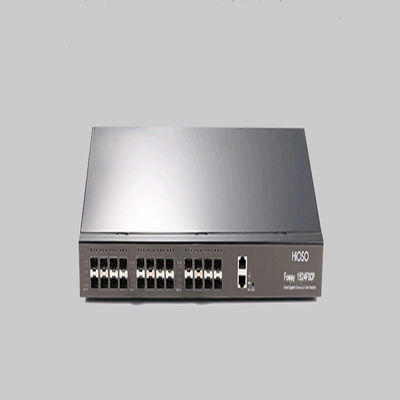

HiOSO FOWAY1524FSCP is a 24 port Gigabit fiber switch, with 22 1000M SFP fiber ports(1000M SFP or the SFP-1000BaseT RJ45 port Optional)and 2 1000M Combo port (100M / 1000M SFP port or 10/100/1000M RJ45 port optional) uplink.
FOWAY1524FSCP supports SFP modules hot plug, and supports to work with other fiber switches, fiber converters and other devices with fiber ports.It supports WEB management and SNMP management Support super network high definition video frequency transmission ability ,Streamlined network structure,it can provide up to 32Gbps switching capacity,the port full wire speed is 96Mpps,it can meet the large-scale network convergence and small medium-sized network core different requirements .
Character
l Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree Protocol,IEE802.1w Rapid STP,IEE802.1s Multiples STP,IEE802.1q Vlan,IEE802.1q Qos,IEE802.3ad Trunk,IEE802.3X Flow Control |
| Wavelength | SFP/SFP+:850nm/1310nm/1490nm/1550nm |
| Distance |
100M SFP Multi-mode: 2km (fiber size 62.5/125μm or 50/125μm) Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP Multi-mode: 220m (fiber size 62.5/125μm)/550m(fiber size 50/125 μm) Single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode:10/20/40/60/80/100/120Km |
| Port |
22 Gigabit SFP fiber ports: 1000Mbps,1000M SFP / SFP-1000BaseT 2 Gigabit Combo port::1 Gbps, 100M/1000M SFP&10/100/1000M RJ45 |
| MAC | 16K |
| Buffer memory space | 6Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power | 110-230Vac 50-60HZ |
| Power consumption | 25W |
|
Working temperature |
-10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension | 44mm (H)×440mm(W)×210mm (D) |
Order information
| No | Type | Managed | Ports | Power |
| 1 | FOWAY1524FSCP | Not | 22 1000M SFP ports +2 Gigabit Combo uplink | AC220V |
| 2 | FOWAY1524FSCPM | Support | 22 1000M SFP ports +2 Gigabit Combo uplink | AC220V |
