Product Details:
|
Type: | FTTH | Transmisson Rate: | 1000M |
---|---|---|---|
Ports: | 24 10/100M Sfp Ports+2 100/1000M SFP Port | MAC Address: | 8K |
Working Temperature: | -10-60℃ | Power Supply: | AC100-240v 50/60HZ |
Black Casing: | Metal | Dimension: | 44*277*190 Mm (H*W*D) |
Highlight: | 1U rack 24 port fiber optic switch,HiOSO 24 port fiber optic switch,HiOSO fiber network switch |

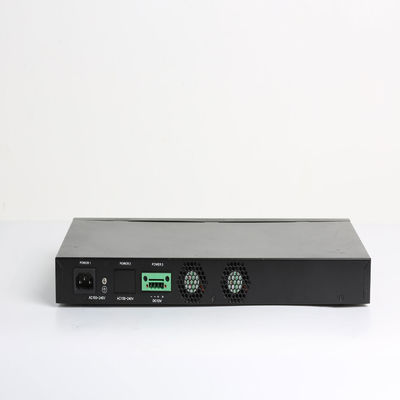

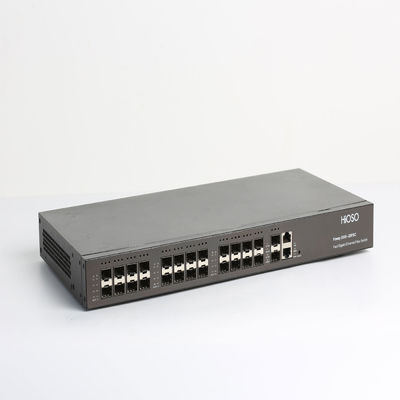

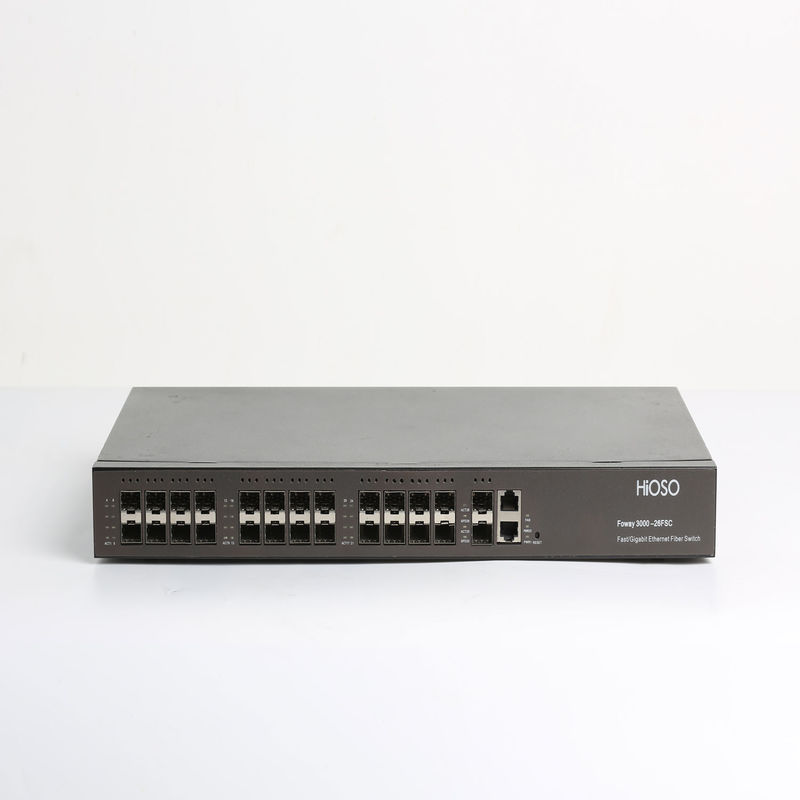

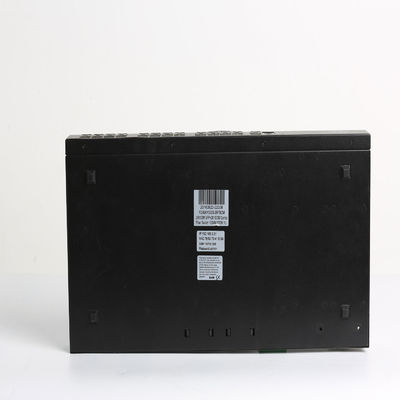

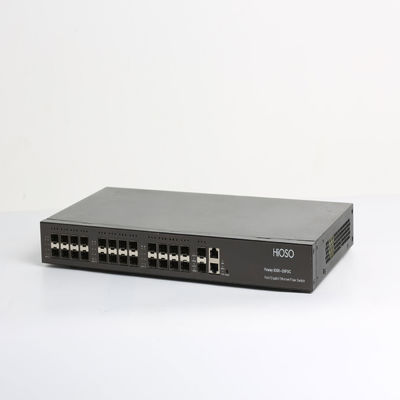

FOWAY3000-26FSC 24 port gigabit Optical Fiber Switch
Character
l Support maximum 24 SFP fiber ports and 2 GE Combo port (SFP fiber port/RJ45 port interchange)
l Support SFP hot plug
l Support each port full rate, full-duplex non-blocking forwarding
l Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc
l Support DHCP, PPPoE, ACL, LLDP
l Support 8K MAC learning, 3Mbit storage and forward cache space, 22.8G back plane bandwidth,1632 Byte large frame forwarding
l Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault
l Replace Media Converter in machine room side, simple network structure, reduce network system total cost and reduce device faults
l All optic ports, strengthen the an-interference ability
l Support the AC dual redundant power supply hot backup and DC12V/5A spare battery power supply
l Standard 1U rack ,internal double cooling fan,better for heat dissipation,work stable .
Technical Specification
Parameter | Specification |
Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, , IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, , IEEE802.1d Spanning Tree Protocol, IEEE802.1w Rapid STP, IEEE802.1s Multiple STP, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.3ad Trunk, IEEE802.3x Flow Control |
Wavelength | SFP module: 850nm/1310nm/1550nm |
Distance |
100M SFP multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode:220mfiber 62.5/125μm)/ 550m(fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
Port |
24 100M SFP fiber ports: 100Mbps 2 Gigabit Combo ports:1 Gbps, 100/1000M SFP&10/100/1000M RJ45 |
MAC | 8K |
Buffer memory space | 3Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |
Power | AC100~240V 50/60HZ, DC12V/5A , 3 kinds redundant power input |
Power consumption | 30W |
Working temperature | -10~60℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Dimension | 44mm (H)×440mm(W)×210mm (D) |
