Product Details:
|
High Light: | 16 PON Port GPON OLT,ITU TG.984.X Standard GPON OLT,16 PON Port gpon to sfp |
---|

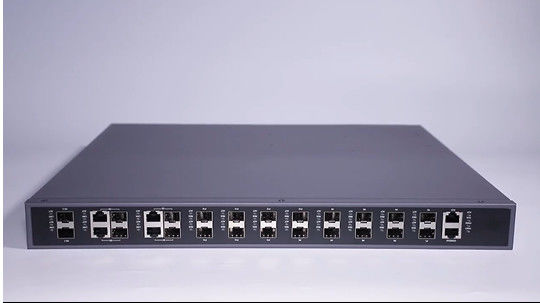

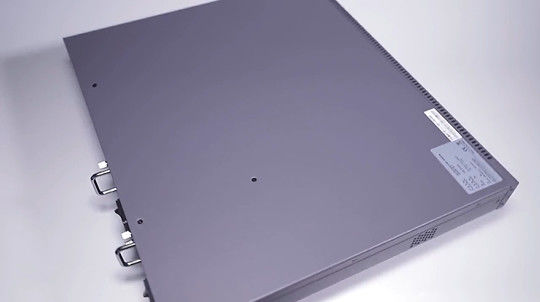

16 Port Gpon Olt Each PON Port Support Maximum Splitting Ratio 1:128
Feature
Technical Specification
Parameter | Specification |
Switching Capacity | 140Gbps |
Forwarding Capacity(Ipv4/Ipv6) | 104MPPS |
Service Port |
16*PON port 4*GE COMBO port, 2*10GE SFP+ port |
Redundancy Design |
Single power supply or dual power supply Support AC input, or DC input |
Power Supply |
AC: input 90~264V 47/63Hz; DC: input -36V~-72V; |
Power Consumption | ≤110W |
Dimensions | 440mm×44mm×380mm |
Weight (Full-Loaded) | ≤3kg |
Environmental Requirements |
Working temperature: -10°C~55°C Storage temperature: -40°C~70°C Relative humidity: 10%~90%, non-condensing |
Parameter | Specification | |
PON Features
|
ITU-TG.984.x standard Maximum 20 Km PON transmission distance access 128 terminals for single fiber PON ONU batch software upgrade, fixed time upgrade, real time upgrade PON port optical power detection |
|
L2 Features | MAC | MAC Black Hole; Port MAC Limit; 64K MAC (packet exchange chip cache 2MB, external cache 720 MB ) |
VLAN |
4K VLAN entries; Port-based/MAC-based/protocol/IP subnet-based ; QinQ and flexible QinQ (StackedVLAN) VLAN Swap and VLAN Remark; PVLAN to realize port isolation and saving public-vlan resources; GVRP |
|
STP | STP/RSTP/MSTP; Remote loop detecting | |
Port |
Static link aggregation and LACP(Link Aggregation Control Protocol); Port mirroring |
|
Security Features |
User's Security |
Anti-ARP-spoofing ; Port Isolation IP Source Guard create IP+VLAN+MAC+Port binding MAC address binding to the port and MAC address filtering IEEE 802.1x and AAA/Radius authentication |
Device Security |
Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell; SNMP v3 encrypted management Security IP login through Telnet
|
|
Network Security |
L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address oem and attack DHCP Option82 and PPPoE+ upload user's physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5; cryptograph authentication |
|
Service Features
|
ACL |
Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port number, protocol type, etc packet filtration of L2~L7 deep to 80 bytes of IP packet head |
QoS |
CAR(Committed Access Rate), Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port or self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism, including Tail-Drop and WRED |
|
IPv4 |
ARP Proxy, DHCP Relay, DHCP Server Static Routing, RIPv1/v2, OSPFv2, BGPv4 Equivalent Routing, Routing Strategy |
|
IPv6 |
BGP4+, Configured Tunnels, ISATAP, 6to4 Tunnels Dual stack of IPv6 and IPv4 |
|
Multicast |
IGMP Fast leave, IGMP Proxy, PIM-SM/PIM-DM/PIM-SSM PIM-SMv6, PIM-DMv6, PIM-SSMv6, MLDv2/MLDv2 Snooping |
|
Reliability | Loop Protection | EAPS and GERP (recover-time <50ms), Loop back detection |
Link Protection |
FlexLink (recover-time <50ms), RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms), BFD |
|
Device Protection | VRRP host backup , 1+1 power hot backup | |
Maintenance | Network Maintenance |
Port real-time, utilization and transmit/receive statistic based on Telnet; RFC3176 sFlow analysis; LLDP, GPON OMCI RFC 3164 BSD syslog Protocol; Ping and Traceroute |
Device Management |
CLI, Console port, Telnet and WEB SNMPv1/v2/v3 RMON (Remote Monitoring)1,2,3,9 groups MIB NTP NGBNView network management |
