Product Details:
|
| High Light: | 20km Transmission GPON OLT,L2 transition GPON OLT,L2 transition hioso gpon |
||
|---|---|---|---|

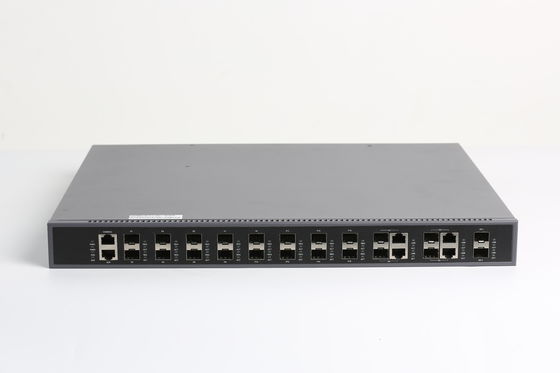

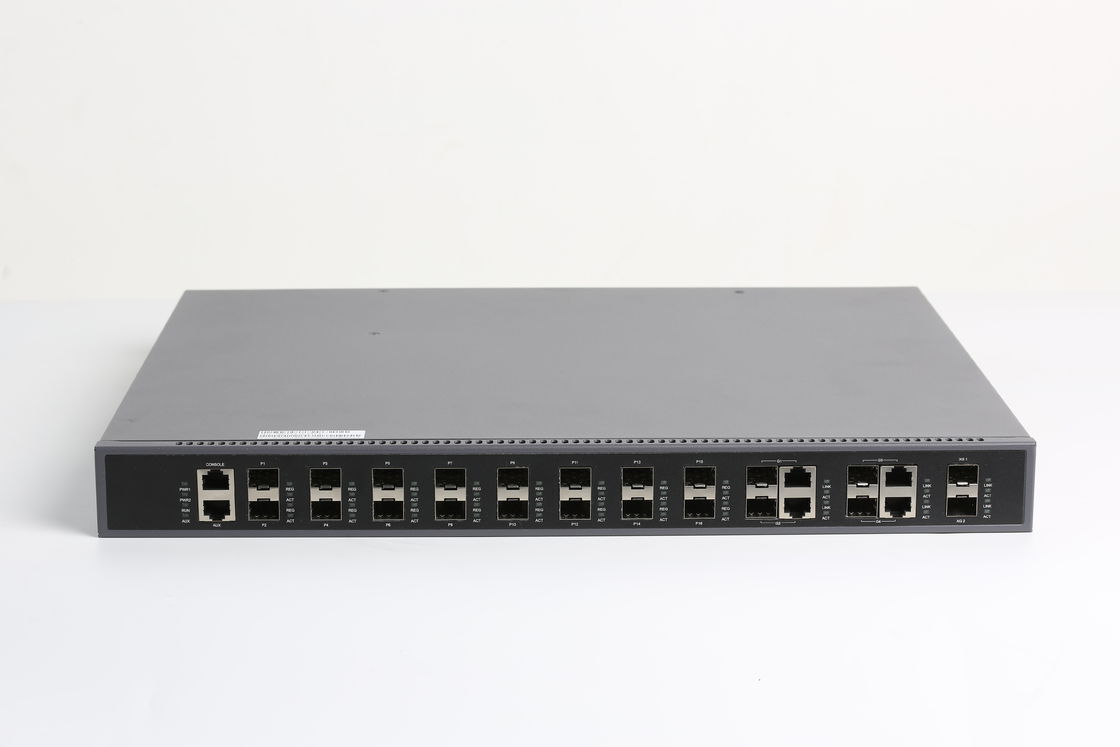

16 Port Gpon Olt Each PON Port Support Maximum Splitting Ratio 1:128
Feature
Technical Specification
| Parameter | Specification |
| Switching Capacity | 140Gbps |
| Forwarding Capacity(Ipv4/Ipv6) | 104MPPS |
| Service Port |
16*PON port 4*GE COMBO port, 2*10GE SFP+ port |
| Redundancy Design |
Single power supply or dual power supply Support AC input, or DC input |
| Power Supply |
AC: input 90~264V 47/63Hz; DC: input -36V~-72V; |
| Power Consumption | ≤110W |
| Dimensions | 440mm×44mm×380mm |
| Weight (Full-Loaded) | ≤3kg |
| Environmental Requirements |
Working temperature: -10°C~55°C Storage temperature: -40°C~70°C Relative humidity: 10%~90%, non-condensing |
| Parameter | Specification | |
|
PON Features
|
ITU-TG.984.x standard Maximum 20 Km PON transmission distance access 128 terminals for single fiber PON Uplink and downlink triple churning encrypted function with 128Bits
|
|
| L2 Features | MAC | MAC Black Hole; Port MAC Limit; 64K MAC (packet exchange chip cache 2MB, external cache 720 MB ) |
| VLAN |
4K VLAN entries; Port-based/MAC-based/protocol/IP subnet-based ; QinQ and flexible QinQ (StackedVLAN) VLAN Swap and VLAN Remark; PVLAN to realize port isolation and saving public-vlan resources; GVRP |
|
| STP | STP/RSTP/MSTP; Remote loop detecting | |
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol); Port mirroring |
|
|
Security Features |
User's Security |
Anti-ARP-spoofing ; Port Isolation IP Source Guard create IP+VLAN+MAC+Port binding MAC address binding to the port and MAC address filtering IEEE 802.1x and AAA/Radius authentication |
| Device Security |
SSHv2 Secure Shell; SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network Security |
User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic; Dynamic ARP table-based binding IP+VLAN+MAC+Port binding
|
|
|
Service Features
|
ACL |
Standard and extended ACL Time Range ACL packet filtration of L2~L7 deep to 80 bytes of IP packet head |
| QoS |
Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port or self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism, including Tail-Drop and WRED |
|
| IPv4 |
ARP Proxy, DHCP Relay, DHCP Server Static Routing, RIPv1/v2, OSPFv2, BGPv4 Equivalent Routing, Routing Strategy |
|
| IPv6 |
ICMPv6, ICMPv6 Redirection, DHCPv6,ACLv6, OSPFv3, RIPng BGP4+, Configured Tunnels, ISATAP, 6to4 Tunnels Dual stack of IPv6 and IPv4 |
|
| Multicast |
IGMPv1/v2/v3, IGMPv1/v2/v3 Snooping IGMP Filter, MVR and cross VLAN multicast oem IGMP Fast leave, IGMP Proxy, PIM-SM/PIM-DM/PIM-SSM PIM-SMv6, PIM-DMv6, PIM-SSMv6, MLDv2/MLDv2 Snooping |
|
| Reliability | Loop Protection | EAPS and GERP (recover-time <50ms), Loop back detection |
| Link Protection |
FlexLink (recover-time <50ms), RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms), BFD |
|
| Device Protection | VRRP host backup , 1+1 power hot backup | |
| Maintenance | Network Maintenance |
Port real-time, utilization and transmit/receive statistic based on Telnet; RFC3176 sFlow analysis; LLDP, GPON OMCI RFC 3164 BSD syslog Protocol; Ping and Traceroute |
| Device Management |
CLI, Console port, Telnet and WEB SNMPv1/v2/v3 RMON (Remote Monitoring)1,2,3,9 groups MIB NTP NGBNView network management |
|
