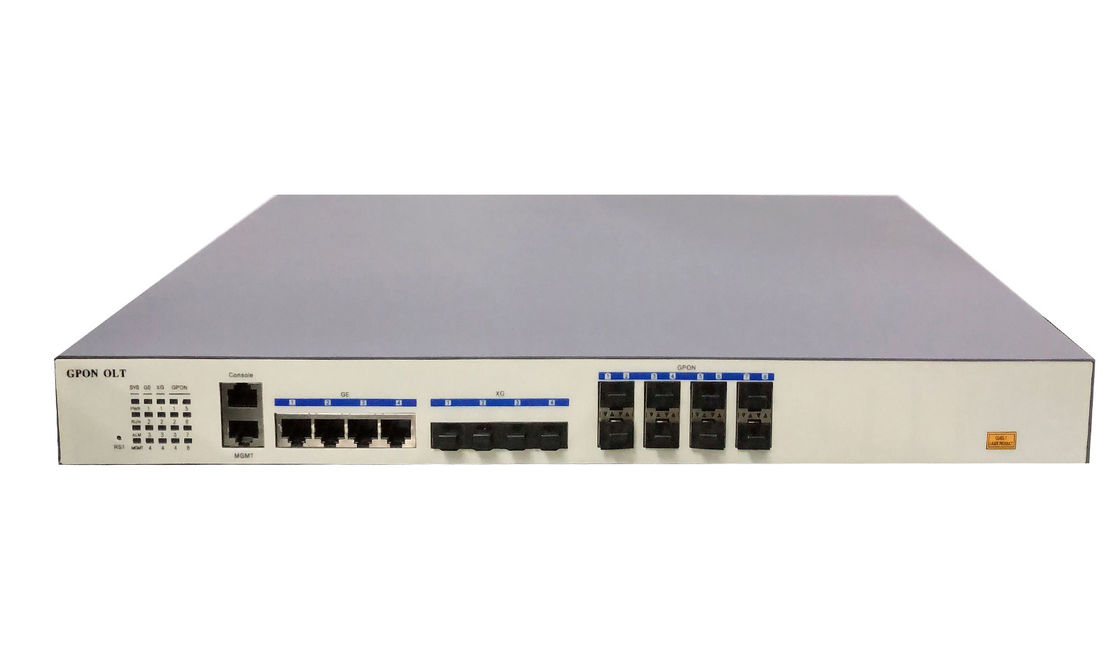

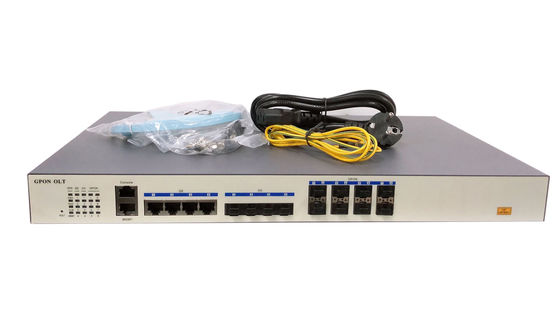

WEB CLI Management AC220V 8 PON OLT ONT 128 Users Each Port

WEB CLI Management AC220V 8 PON OLT ONT 128 Users Each Port
WEB CLI Management AC220V 8 PON OLT ONT 128 Users Each Port WEB CLI Management AC220V 8 PON OLT ONT 128 Users Each Port WEB CLI Management AC220V 8 PON OLT ONT 128 Users Each Port

Large Image :  WEB CLI Management AC220V 8 PON OLT ONT 128 Users Each Port

Product Details:
Place of Origin: China, Guang dong
Brand Name: Hioso
Certification: CE, RoHS, CCC
Model Number: HA7308GD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: usd1100/pc without pon sfp

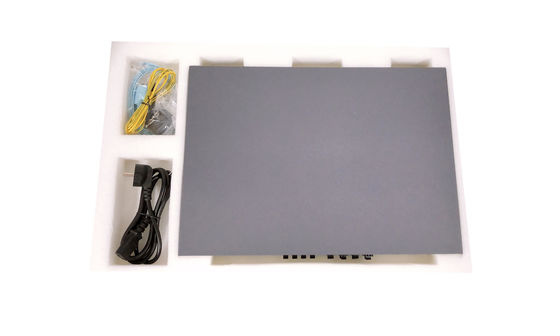

Packaging Details: 64*45*18cm 7KG/set
Delivery Time: 1 day
Payment Terms: T/T, Western Union

WEB CLI Management AC220V 8 PON OLT ONT 128 Users Each Port

Description
Name: 8PON GPON OLT Uplink: 4 10G SFP+
Management Port: 1 MGMT+1 CONSOLE Support: Web Cli
CTC: Support Other Brands GPON XPON ONUs Ratio: 1:128
Size: 1u Rack Power: AC220V
High Light:

WEB CLI Management olt ont

,

AC220V olt ont

,

8 PON mini olt gpon

GPON OLT 8PON Layer 3 WEB CLI management 128 users each pon port AC220V



Overview



The HA7308GD is a 1U box GPON OL. It adopts the industry-leading commercial chip to fully apply the ITU-T G.988 GPON technology standard. It can realize ONU hybrid networking of different manufacturers .

The HA7308GD system has good stability and high reliability. It supports multiple management modes such as CLI & SNMP. The graphical management interface is clear, friendly and easy to use.



The HA7308GD provides 8 downstream GPON ports, 4*1000Base-T up-link ports and 4*10G optical SFP+ up-link ports, The SFP+ port with an expansion function, which can adapt to 1GE SFP or 10GE SFP+. The FHL2100-8 adopts the industrial advanced technology, with powerful Ethernet services and QoS feature, supporting SLA and DBA. The splitting ratio up to 1:128, supporting different types of ONU in different networks, minimizing operators' investments. The 1U height can be easy to install and maintain. It is an excellent choice for operators to quickly deploy FTTH networks using GPON technology.



Feature

  • Applicable to county and town level fiber optic network access and monitoring transmission,
  • Meet FTTH requirements to provide complete access to IP telephony, broadband data, IPTV, etc;
  • Provide 8 downstream GPON ports, 4*1000Base-T up-link ports and 4*10GE optical SFP+ up-link ports.
  • The SFP+ port with an expansion function, which can adapt to 1GE SFP or 10GE SFP+.
  • System Capacity: 1:128 split ratio, full configuration supports up to 1024 GPON terminals.
  • Up-link Interface: Flexible design supports multiple types network interfaces, optical or electrical interfaces optional based on network conditions.
  • Support dual power supply.
  • 1U device takes small space, low power consumption, which reduce the total cost.



Technical Specification



Parameter Specification
PON features GPON

Support ITU -T standard

Each PON port supports 128*ONU

Maximum transmission distance of 20KM

Support uplink FEC, downlink FEC(Forward Error Correction)

ONU identifier authentication :SN /SN+PASSWD/LOID

Bandwidth allocation mechanism

5 types of T-CONT bandwidth

Static Bandwidth Allocation

Dynamic Bandwidth Allocation

L2 features MAC MAC Black Hole, Port MAC Limit
VLAN

4K VLAN entries

Port-based/MAC-based/IP subnet-based VLAN

Port-based QinQ and Selective QinQ (StackVLAN)

VLAN Swap and VLAN Remark and VLAN Translate

Based on ONU service flow VLAN add, delete, replace

Protocol STP, RSTP, MSTP
Port

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring and traffic mirroring

L3 features Protocol OSPF, IS-IS, BGP
Security features User Security

Anti-ARP-flooding

IP Source Guard create IP+VLAN+MAC+Port binding

Port Isolation

MAC address binds to port and port MAC address filtration

IEEE 802.1x and AAA/Radius authentication

dhcp anti-attack flood attack automatic suppression

ONU isolation control

Device security

Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack

SSHv2 Secure Shell, SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

Network security

User-based MAC and ARP traffic examination

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic

Dynamic ARP table-based binding

Supports IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address counterfeit and attack

DHCP Option82 and PPPoE+ upload user’s physical location

Plaintext authentication of OSPF,RIPv2 and MD5 cryptograph authentication

IP routing IPv4 ARP Proxy, DHCP Relay, DHCP Server, Static route
IPv6

ICMPv6 DHCPv6 ACLv6

Configured Tunnel 6to4 tunnel

IPv6 and IPv4 Tunnels

Service features ACL

Standard and extended ACL

Time Range ACL

Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic

Support packet filtration of L2~L7 even deep to 80 bytes of IP packet head

QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow

Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark

CAR(Committed Access Rate),Traffic Shaping and flow statistics

Packet mirror and redirection of interface and self-defined flow

Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR.

Congestion avoid mechanism,including Tail-Drop and WRED

Multicast



IGMPv1/v2/v3 , IGMPv1/v2/v3 Snooping, IGMP Filter

MVR and cross VLAN multicast copy

IGMP Fast leave, IGMP Proxy, MLDv2/MLDv2 Snooping

Reliability Loop protection

EAPS and GERP (recover-time <50ms)

Loop back-detection

Link protection

Flex Link (recover-time <50ms)

RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms)

Device protection

Double fault-tolerant backup of host program and configuration files

1+1 power hot backup

Maintenance Network maintenance

Telnet-based statistics

RFC3176 sFlow, LLDP, 802.3ah Ethernet OAM

RFC 3164 BSD sys log Protocol, Ping and Trace route

Device management

Web management

Console/Telnet, Command-line interface(CLI)

Upgrade via FTP

System configuration with SNMPv1/v2/v3

RMON (Remote Monitoring)

Support SNTP network time protocol



Working Environment



Parameter Specification
Switching capacity 128Gbps
Mac Address 64K
Ports 8*PON port,4*10G SFP+, 4*1000Base-T
Power redundancy Dual power supply. Can be double AC, double DC or AC+DC
Power supply

AC:Input 85~264V,47~63Hz;

DC: Input -36V~-75V;

Maximum Power 60W
Outline dimensions 440mm×310mm×44mm (mm) (W*D*H)
Weight ≤5kg
Temperature

Working temperature:-10°C~50°C

Storage temperature:-40°C~85°C

Relative humidity:5%~95%,no condensing
