Product Details:
|
| Name: | Fiber Media Converter | Access Mode: | 10/100Mbps |
|---|---|---|---|
| Distance: | Cat5 : 100m | MTBF: | 100000h |
| Mac: | 1K | Delay: | 9.6us |
| High Light: | Adaptive Gigabit Ethernet Media Converter,10/100Mbps gigabit ethernet media converter,10/100Mbps optical to ethernet converter |
||

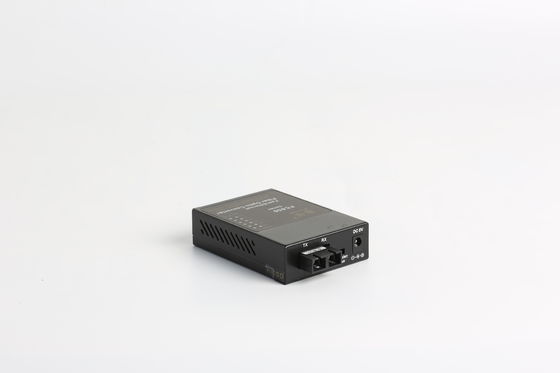

5 Ports 10 / 100Mbps Adaptive Fast Ethernet Fiber Media Converter
Overview
HiOSO FC650A is a kind of 10/100Mbps adaptive fast Ethernet fiber media converter (also called optical-to-electric medium converter) with a built-in four-port 10M/100Mbps adaptive switch, which can implement mutual conversion between four independent 10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. FC650A can extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full-duplex mode).
This type of fiber converter supports two types of network connection medium: 10/100Base-TX and 100Base-FX. With the application of the switching technology and the storing & forwarding technology, FC650A can implement data transmission between two types of network connection medium. This kind of converter supports transmission in dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fibers.
Technical Specifications
| Parameter | Specifications |
| Access mode | 10/100Mbps |
| Transmission distance |
Dual-fiber multi-mode: 2Km; Dual-fiber single-mode: 25/40/60/80/100/120Km; Single-fiber single-mode: 25/40/60/80/100Km |

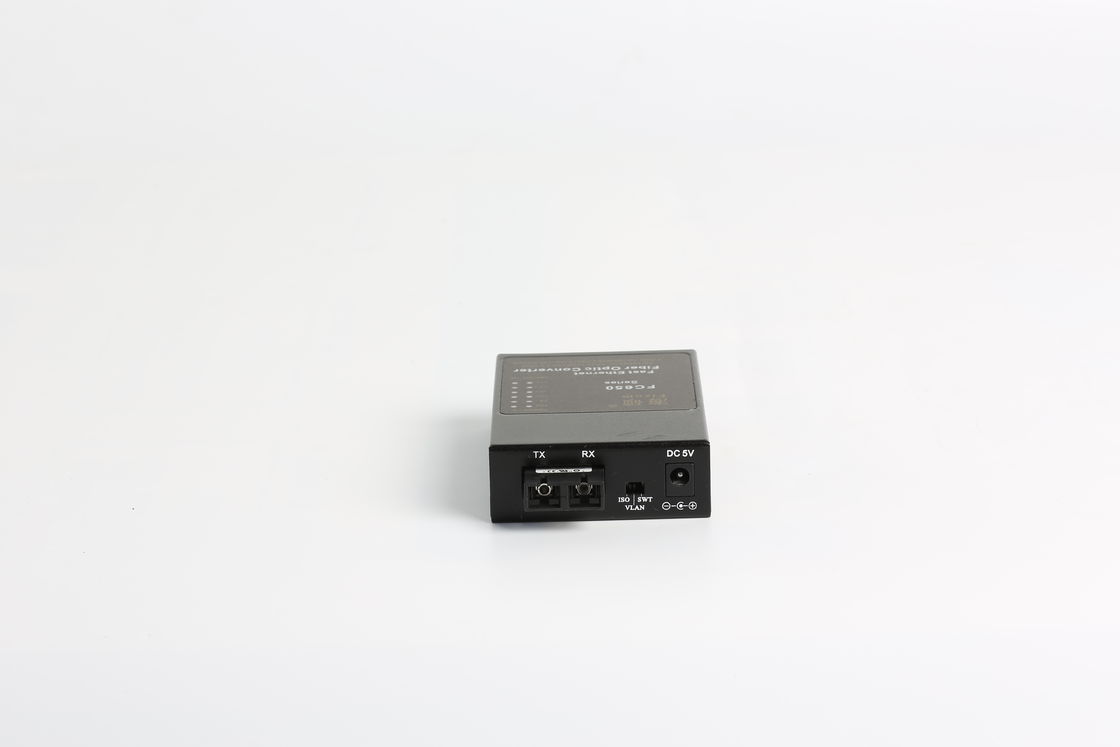

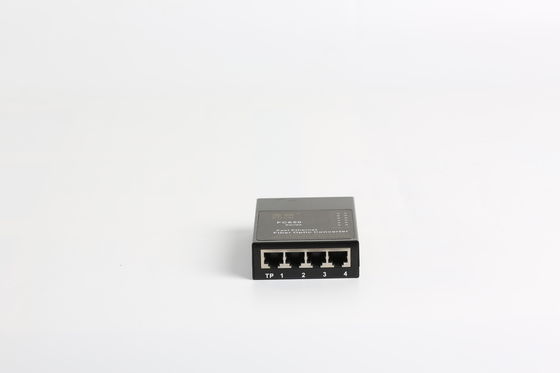

| Port | Four RJ45 connector: connected to STP/UTP category-5 twisted pair One fiber port: Multi-mode - SC or ST (fiber size: 50,62.5/125μm) Single mode - SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode - SC/FC fiber port (fiber size: 9/125μm) |
| Conversion mode | Medium conversion, storing and forwarding |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |

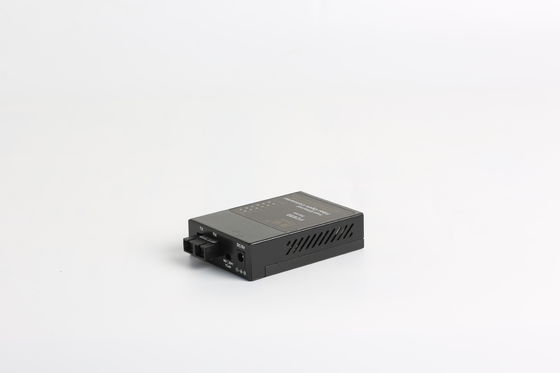

| LED | POWER (power), FX LINK/ACT (fiber connection/action) FDX (FX full duplex mode), FX100 (Fiber, with a transmission rate of 100M) TP1/2/3/4 LINK/ACT (1/2/3/4-port twisted pairs connection action) TP1/2/3/4100 (1/2/3/4-port twisted pairs, with a transmission rate of 100M) |
| Power | DC5V/1A (external) |
| Power consumption | 3.5W |
