Product Details:
|
| Product Name: | Fiber Media Converter | Wavelength: | 850nm/1310nm/1490nm/1550nm |
|---|---|---|---|
| Fiber Type: | Single Fiber | Warranty: | 3 Years |
| Connector: | RJ45 | Color: | Black |
| High Light: | 850nm managed fiber media converter,HiOSO managed fiber media converter,HiOSO fiber optic media converter |
||

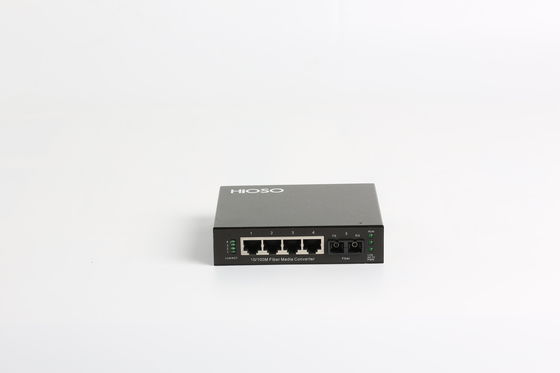

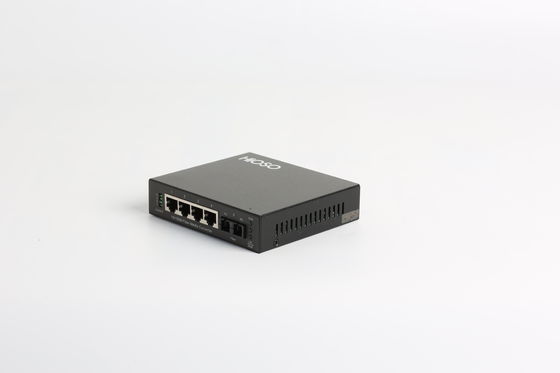

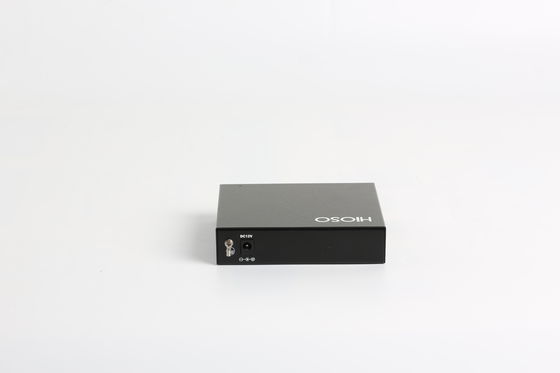

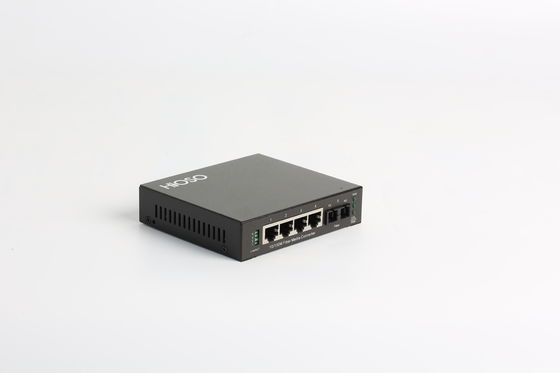

5 Port Fiber Media Converter 1 100m Fiber + 4 100m Rj45 Ports Ring Type Managed
Overview
HiOSO FC830AEM Series converter is 10/100M auto-adapted Fast Ethernet Fiber Media Converter (Or called Photo-electrical Converter) with 4 10/100M RJ45 ports and 1 SC fiber port; it supports SNMP Protocol,Web windows administration, remote Telnet management, Com port management and software upgrade.
FC830AEMC is card type remote media converter working together with FTC-16M chassis, and FC830AEM is standalone local media converter, through iCoreView management system, It can supervise the working condition and configure the mode .
Features
| Parameters | Specifications |
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u, 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Transmission distance |
Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km; single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pairs: 100m |
| Port | 4 RJ45 ports: Connected to STP/UTP category-5 twisted pairs 1 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm) Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125 μ m) |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | 2 K |
| Buffer space | 512Kbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | Storing & forwarding: 9.6 μ s; straight-through: 0.9 μ s; |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED |
External power converter: PRW(power),FX LINK/ACT(fiber link/action), TP1/2/3/4 LINK/ACT(twisted pair link/action) Module card and inside power converter: PRW(power),FX LINK/ACT(fiber link/action), TP1/2/3/4 LINK/ACT(twisted pair link/action) TP1/2/3/4 100 (twisted pair: transmission rate 100M); |
| Power | DC12V 1A (external power),AC220V/DC-48V(inside power)5V 1A (card) |
| Power consumption | <2W |
| Operating temperature | -10~55°C |
| Operating humidity | 5%~90% |
| Storage temperature | -40~80°C |
| Storage humidity | 5%~90% (non-condensing) |
| Installation | Wall mount (standalone type), rack type installation (card type) |
| Dimensions |
128mm(H)*25mm(W)*152mm(D) (module card) 28mm(H) *120mm(W) *106mm(D) (external power) 38 mm(H) *218mm(W) * 176mm(D) (inside power) |
