Product Details:
|
| Product Name: | Fiber Media Converter | Wavelength: | 850nm/1310nm/1490nm/1550nm |
|---|---|---|---|
| Fiber Type: | Single Fiber | Warranty: | 3 Years |
| Connector: | RJ45 | Color: | Black |
| High Light: | 2 1000m SC Fiber Media Converter,4 1000m Ports Fiber Media Converter,2 1000m SC fiber optic to ethernet converter |
||

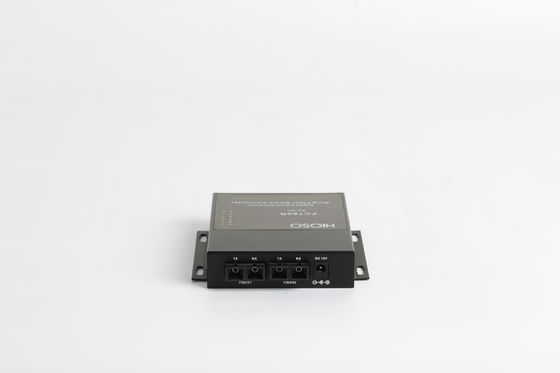

6 Ports Fiber Media Converter 2 1000m Sc + 4 1000m Ports Ring Type
Overview
HiOSO FC760R series Ring type Media Converter is designed to meet requirements of multi fiber access network. It provides 2 1000BASE-SX/LX fiber ports and 4 10/100BASE-TX RJ45 ports,which provide not only point to point network connection, but also point to multi-point chain network. It support WEB management and RSR (Rapid Super Ring) and has extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex) and is applied to highway network system, mine communication system and other chain multi-point networks.
Technical Specification
| Parameters | Specifications |
| Transmission distance | Dual-fiber multi-mode: 220m (fiber size: 62.5/125μm)/550m (fiber size: 50/125μm) Dual-fiber single-mode: 10/20/40/60/80/100/120Km Single-fibe : 10/20/40/60/80/100/120Km; Category-5 twisted pairs:100m |
| Port |
4 RJ45 ports: Connected to STP/UTP category-5 twisted pairs 2 fiber ports: Multi-mode – SC (fiber size: 50,62.5/125μm) |
| Conversion mode | Medium conversion, storing and forwarding mode |
| MAC address table | 8 K |
| Buffer space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | PWR(power), FX1/FX2(fiber link/action),TP 1/2/3/4(twisted pair link/action ),TP 1/2/3/4 100M(twisted pair 100M rate), Ring (ring network LED), SYM (system) |
Order Information
| Type | Rate (Mbps) | Mode | Working Wavelength (nm) |
Distance (Km) |
Fiber Port | Power |
| FC760R-M-S | FX:10/100/1000 TX:10/100 | Dual-fiber multi-mode | 1310 | 2 | SC | External DC12V |
| FC760R-S10/20/40-SC | FX:10/100/1000 TX:10/100 | Dual-fiber single-mode | 1310 | 10/20/40 | SC | External DC12V |
| FC760R-S40D/60/80/100/120-SC | FX:10/100/1000 TX:10/100 | Dual-fiber single-mode | 1550 | 40/60/80/100/120 | SC | External DC12V |
| FC760R-SS10/20/40/60-SC | FX:10/100/1000 TX:10/100 | Single-fiber single-mode | WDM1310/1550 | 10/20/40/60 | SC | External DC12V |
| FC760R-SS80/100/120-SC | FX:10/100/1000 TX:10/100 | Single-fiber single-mode | WDM1490/1550 | 80/100/120 | SC | External DC12V |
