Product Details:
|
| Product Name: | Fiber Media Converter | Wavelength: | 850nm/1310nm/1550nm |
|---|---|---|---|
| Standard: | IEEE802.3 10Base-T | Access Mode: | 10/100Mbps |
| Consumption: | <2W | Mac: | 1K |
| High Light: | 10/100Mbps Fiber Media Converter,1310nm Fiber Media Converter,1310nm fast ethernet media converter |
||

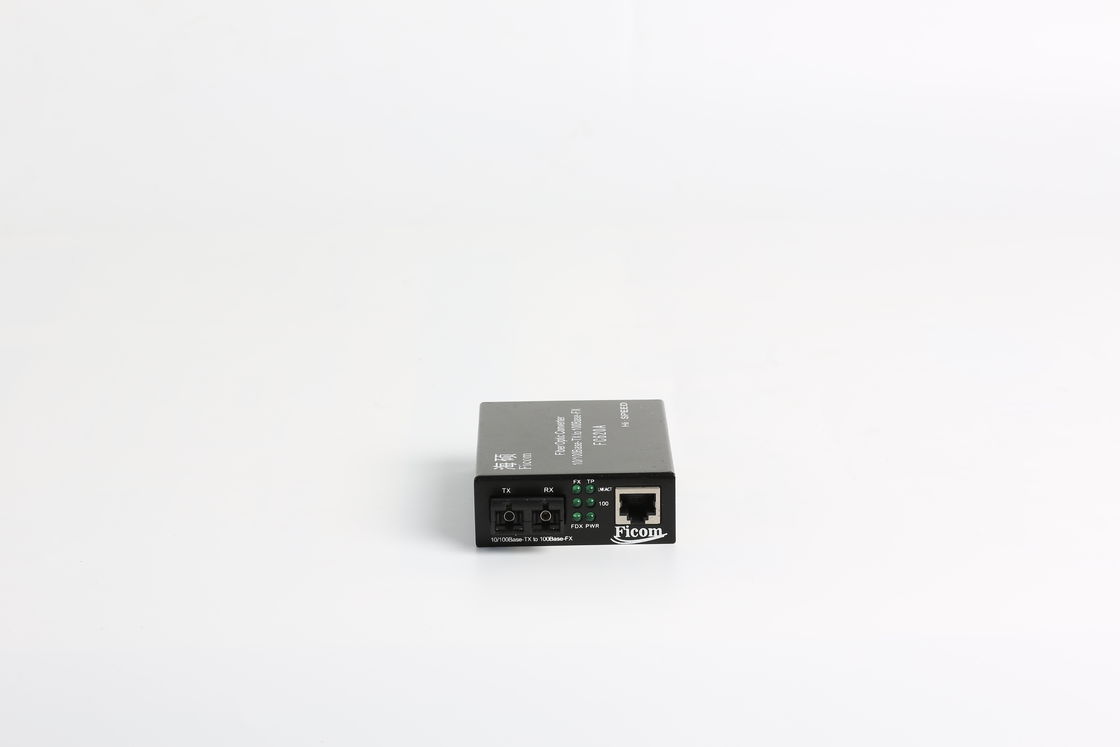

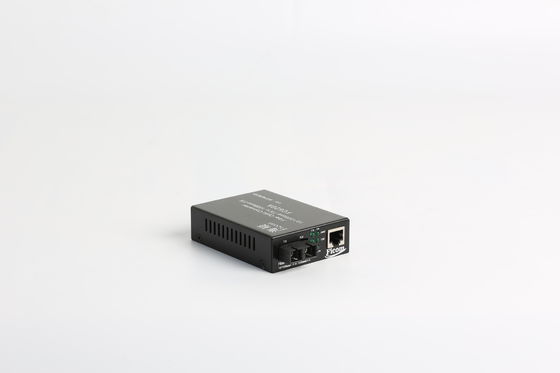

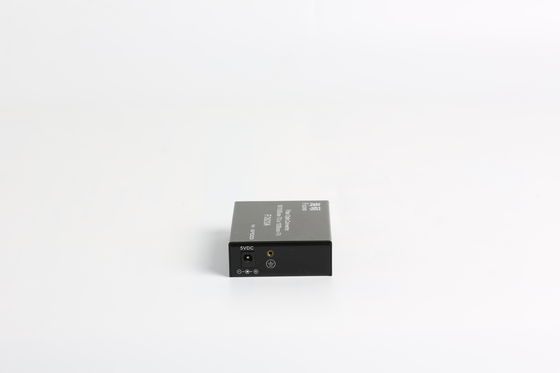

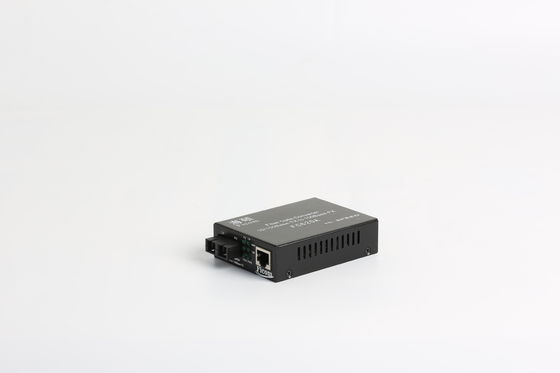

Fiber Media Converter 1 Fe + 1 Fx Port 10/100M Adaptive Fast Ethernet Converter
Overview
HiOSO FC620A is an 10/100M adaptive fast Ethernet fiber converter (also called optical-to-electrical medium converter). FC620A can conduct mutual conversion between 10Base-T/100Base-TX twisted pair electrical signals and 100Base-FX optical signals. It extends the transmission distance of a network from 100m over copper wires to 120 Km, to implement data transmission between the optical and electrical network connection mediums. FC620A fiber converter supports transmission in dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fibers.
| Parameters | Specifications |
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u, 100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control, |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km;single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pairs: 100m |
| Port | One RJ45 port: Connected to STP/UTP category-5 twisted pairs One fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm) Single mode – SC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC fiber port (fiber size: 9/125 μ m) |
| Conversion mode | Medium conversion, storing and forwarding/straight-through |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
| Delay | Storing & forwarding: 9.6 μ s; straight-through: 0.9 μ s; |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | POWER (power), FX LINK/ACT (fiber link/action) FDX (FX full-duplex mode), TP LINK/ACT (twisted pair link/action); TP 100 (twisted pair: transmission rate of 100M);FX 100 (fiber: transmission rate of 100M) (external power) |
| Power | DC5V 1A (external), AC220 |
| Power consumption | <2W |
| Operating temperature | -10~55°C |
| Operating humidity | 5%~90% |
| Storage temperature | -40~70°C |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions | 26mm(H)*71mm(W)*95mm(D) (height * width * depth) (external power) 26mm(H)*85mm(W)*135mm(D) (height * width * depth) (built-in power) 110mm(H)*22mm(W)*81mm(D) /(height * width * depth) (module card) |
